Can NOT start up my PC: HP Z440: Prepare Automatic Repair - Diagnosing your PC

Anonymous
2021-10-23T05:26:32+00:00

Can NOT start up my PC: HP Z440

When booting up:

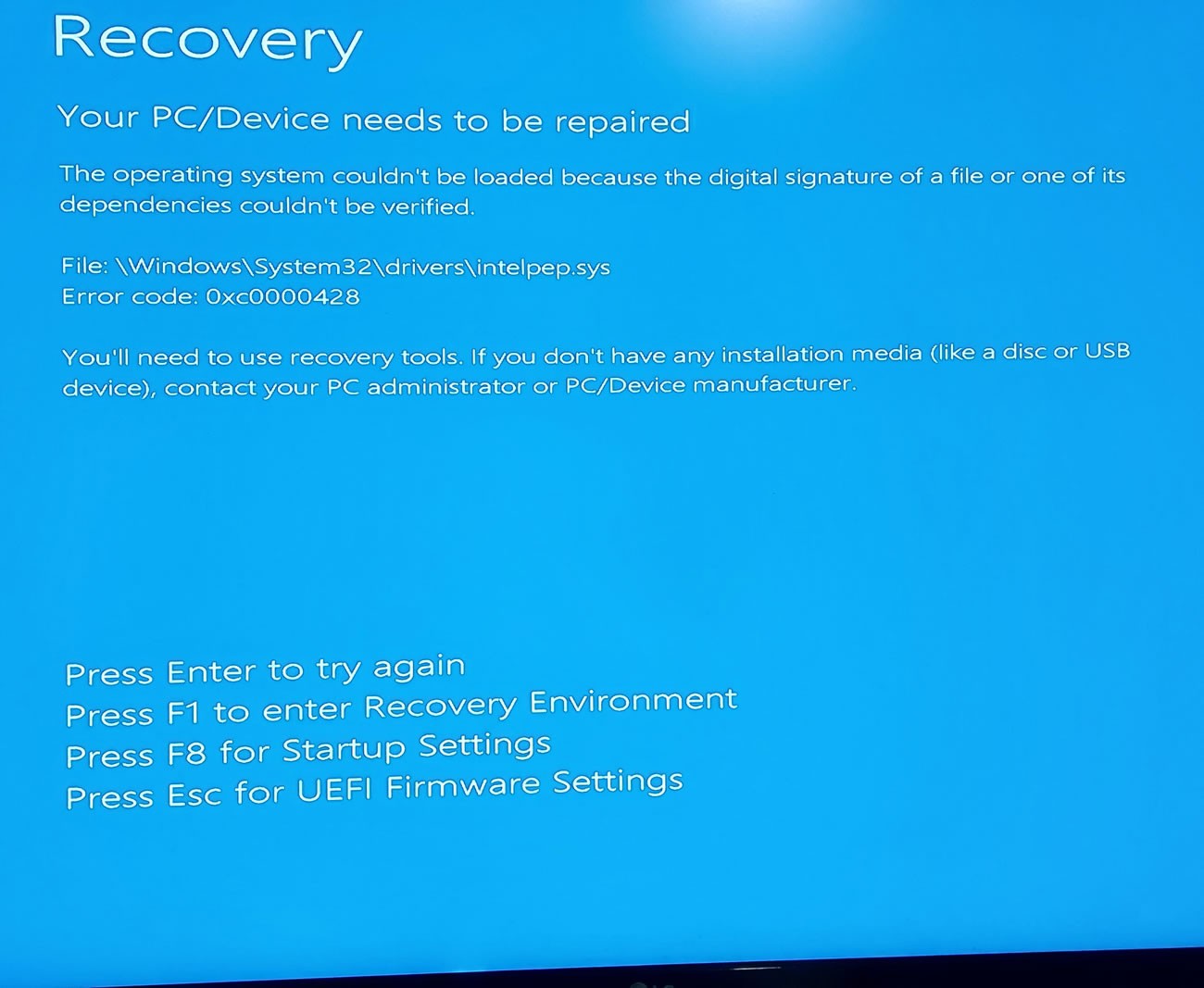

Prepare Automatic Repair - Diagnosing your PC

I see always

I have tried

1

Safe Mode, Uninstall the latest quality update, Restore back to point 18-10-2021 :

same symptom

2

Troubleshoot> Advanced options > Startup Repair:

same symptom

Status

Today in the morning I turn ON PC, I was offline[no cable ethernet], and while working prompt for an update[while was dis-connected], after this connected - checked some Gmail, etc. and after 30-min press UPDATE & RESTART,

And got this problem on startup...

well...?

I have a backup of C:/ with Acronis... I think of October 2021

Windows for home | Windows 10 | Windows update

Locked Question. This question was migrated from the Microsoft Support Community. You can vote on whether it's helpful, but you can't add comments or replies or follow the question.

0 comments

61 answers

Sort by: Most helpful
Most helpful Newest Oldest
  1. Anonymous
    2021-10-27T01:28:24+00:00

    X:\Sources>

    X:\Sources>

    X:\Sources>

    X:\Sources>diskpart

    Microsoft DiskPart version 10.0.19041.610

    Copyright (C) Microsoft Corporation.

    On computer: MININT-QSHS6DO

    DISKPART> list vol

    Volume ### Ltr Label Fs Type Size Status Info

    Volume 0 C System NTFS Partition 930 GB Healthy

    Volume 1 EFI FAT32 Partition 100 MB Healthy Hidden

    Volume 2 D NTFS Partition 502 MB Healthy Hidden

    Volume 3 E USB DISK FAT32 Removable 57 GB Healthy

    DISKPART> select vol 1

    Volume 1 is the selected volume.

    DISKPART> detail part

    Partition 2

    Type : c12a7328-f81f-11d2-ba4b-00a0c93ec93b

    Hidden : Yes

    Required: No

    Attrib : 0000000000000000

    Offset in Bytes: 135266304

    Volume ### Ltr Label Fs Type Size Status Info

    * Volume 1 EFI FAT32 Partition 100 MB Healthy Hidden

    DISKPART> select vol 2

    Volume 2 is the selected volume.

    DISKPART> detail part

    Partition 4

    Type : de94bba4-06d1-4d40-a16a-bfd50179d6ac

    Hidden : Yes

    Required: No

    Attrib : 0000000000000000

    Offset in Bytes: 999677755392

    Volume ### Ltr Label Fs Type Size Status Info

    * Volume 2 D NTFS Partition 502 MB Healthy Hidden

    DISKPART> exit

    Leaving DiskPart...

    X:\Sources>DIR D:\ /a /s

    Volume in drive D has no label.

    Volume Serial Number is 0695-D056

    Directory of D:\

    06/02/2021 03:01 PM <DIR> Recovery

    10/25/2021 09:38 AM 0 Recovery.txt

    05/20/2021 02:02 AM <DIR> System Volume Information

               1 File(s)              0 bytes

    Directory of D:\Recovery

    06/02/2021 03:01 PM <DIR> .

    06/02/2021 03:01 PM <DIR> ..

    10/25/2021 09:38 AM <DIR> Logs

    06/02/2021 05:12 AM <DIR> WindowsRE

               0 File(s)              0 bytes

    Directory of D:\Recovery\Logs

    10/25/2021 09:38 AM <DIR> .

    10/25/2021 09:38 AM <DIR> ..

    10/25/2021 09:37 AM 72 BootUX (1).sqml

    10/25/2021 09:37 AM 96 BootUX (2).sqml

    10/25/2021 09:37 AM 72 BootUX (3).sqml

    10/25/2021 09:37 AM 96 BootUX (4).sqml

    10/25/2021 09:38 AM 72 BootUX (5).sqml

               5 File(s)            408 bytes

    Directory of D:\Recovery\WindowsRE

    06/02/2021 05:12 AM <DIR> .

    06/02/2021 05:12 AM <DIR> ..

    12/07/2019 01:08 AM 3,170,304 boot.sdi

    06/02/2021 05:12 AM 1,070 ReAgent.xml

    11/18/2020 06:38 PM 416,960,919 Winre.wim

               3 File(s)    420,132,293 bytes

    Directory of D:\System Volume Information

    05/20/2021 02:02 AM <DIR> .

    05/20/2021 02:02 AM <DIR> ..

    05/20/2021 02:02 AM 20,480 tracking.log

               1 File(s)         20,480 bytes

 Total Files Listed:

          10 File(s)    420,153,181 bytes

          12 Dir(s)      89,628,672 bytes free

    X:\Sources>

    Was this answer helpful?

    0 comments
  2. Anonymous
    2021-10-27T01:27:08+00:00

    BCDEdit /Enum All

    Microsoft Windows [Version 10.0.19041.928]

    (c) Microsoft Corporation. All rights reserved.

    X:\Sources>notepad

    X:\Sources>BCDEdit /Enum All

    Firmware Boot Manager

    identifier {fwbootmgr}

    displayorder {bootmgr}

                        {5309e8cc-36dd-11ec-be20-ecb1d7406573}

                    {5309e8cb-36dd-11ec-be20-ecb1d7406573}

                    {5309e8c9-36dd-11ec-be20-ecb1d7406573}

                    {5309e8cf-36dd-11ec-be20-ecb1d7406573}

                    {5309e8cd-36dd-11ec-be20-ecb1d7406573}

                    {5309e8ca-36dd-11ec-be20-ecb1d7406573}

                    {5309e8d0-36dd-11ec-be20-ecb1d7406573}

                    {5309e8be-36dd-11ec-be20-ecb1d7406573}

                    {5309e8bf-36dd-11ec-be20-ecb1d7406573}

                    {5309e8c0-36dd-11ec-be20-ecb1d7406573}

                    {5309e8c1-36dd-11ec-be20-ecb1d7406573}

                    {5309e8c2-36dd-11ec-be20-ecb1d7406573}

                    {5309e8c3-36dd-11ec-be20-ecb1d7406573}

                    {5309e8c4-36dd-11ec-be20-ecb1d7406573}

                    {5309e8c5-36dd-11ec-be20-ecb1d7406573}

                    {5309e8c6-36dd-11ec-be20-ecb1d7406573}

                    {5309e8c7-36dd-11ec-be20-ecb1d7406573}

                    {5309e8c8-36dd-11ec-be20-ecb1d7406573}

                    {5309e8ce-36dd-11ec-be20-ecb1d7406573}

    timeout 0

    Windows Boot Manager

    identifier {bootmgr}

    device partition=\Device\HarddiskVolume2

    path \EFI\Microsoft\Boot\bootmgfw.efi

    description Windows Boot Manager

    locale en-us

    inherit {globalsettings}

    default {default}

    resumeobject {5309e8bc-36dd-11ec-be20-ecb1d7406573}

    displayorder {default}

    toolsdisplayorder {memdiag}

    timeout 30

    Firmware Application (101fffff)

    identifier {5309e8be-36dd-11ec-be20-ecb1d7406573}

    description Startup Menu

    Firmware Application (101fffff)

    identifier {5309e8bf-36dd-11ec-be20-ecb1d7406573}

    description System Information

    Firmware Application (101fffff)

    identifier {5309e8c0-36dd-11ec-be20-ecb1d7406573}

    description Bios Setup

    Firmware Application (101fffff)

    identifier {5309e8c1-36dd-11ec-be20-ecb1d7406573}

    description 3rd Party Option ROM Management

    Firmware Application (101fffff)

    identifier {5309e8c2-36dd-11ec-be20-ecb1d7406573}

    description System Diagnostics

    Firmware Application (101fffff)

    identifier {5309e8c3-36dd-11ec-be20-ecb1d7406573}

    description System Diagnostics

    Firmware Application (101fffff)

    identifier {5309e8c4-36dd-11ec-be20-ecb1d7406573}

    description System Diagnostics

    Firmware Application (101fffff)

    identifier {5309e8c5-36dd-11ec-be20-ecb1d7406573}

    description System Diagnostics

    Firmware Application (101fffff)

    identifier {5309e8c6-36dd-11ec-be20-ecb1d7406573}

    description Boot Menu

    Firmware Application (101fffff)

    identifier {5309e8c7-36dd-11ec-be20-ecb1d7406573}

    description Network Boot

    Firmware Application (101fffff)

    identifier {5309e8c8-36dd-11ec-be20-ecb1d7406573}

    description HP Recovery

    Firmware Application (101fffff)

    identifier {5309e8c9-36dd-11ec-be20-ecb1d7406573}

    description PLDS DVD-RW DH16AFSH

    Firmware Application (101fffff)

    identifier {5309e8ca-36dd-11ec-be20-ecb1d7406573}

    description SanDisk Ultra II 960GB

    Firmware Application (101fffff)

    identifier {5309e8cb-36dd-11ec-be20-ecb1d7406573}

    description PLDS DVD-RW DH16AFSH

    Firmware Application (101fffff)

    identifier {5309e8cc-36dd-11ec-be20-ecb1d7406573}

    description USB:

    Firmware Application (101fffff)

    identifier {5309e8cd-36dd-11ec-be20-ecb1d7406573}

    description CT1000MX500SSD1

    Firmware Application (101fffff)

    identifier {5309e8ce-36dd-11ec-be20-ecb1d7406573}

    description HL-DT-ST DVDRAM GH24NSD1

    Firmware Application (101fffff)

    identifier {5309e8cf-36dd-11ec-be20-ecb1d7406573}

    description USB:

    Firmware Application (101fffff)

    identifier {5309e8d0-36dd-11ec-be20-ecb1d7406573}

    description HL-DT-ST DVDRAM GH24NSD1

    Windows Boot Loader

    identifier {default}

    device partition=C:

    path \windows\system32\winload.efi

    description Windows 10

    locale en-us

    inherit {bootloadersettings}

    isolatedcontext Yes

    allowedinmemorysettings 0x15000075

    osdevice partition=C:

    systemroot \windows

    resumeobject {5309e8bc-36dd-11ec-be20-ecb1d7406573}

    nx OptIn

    bootmenupolicy Standard

    Resume from Hibernate

    identifier {5309e8bc-36dd-11ec-be20-ecb1d7406573}

    device partition=C:

    path \windows\system32\winresume.efi

    description Windows Resume Application

    locale en-us

    inherit {resumeloadersettings}

    isolatedcontext Yes

    allowedinmemorysettings 0x15000075

    filepath \hiberfil.sys

    bootmenupolicy Standard

    Windows Memory Tester

    identifier {memdiag}

    device partition=\Device\HarddiskVolume2

    path \EFI\Microsoft\Boot\memtest.efi

    description Windows Memory Diagnostic

    locale en-us

    inherit {globalsettings}

    badmemoryaccess Yes

    EMS Settings

    identifier {emssettings}

    bootems No

    Debugger Settings

    identifier {dbgsettings}

    debugtype Local

    RAM Defects

    identifier {badmemory}

    Global Settings

    identifier {globalsettings}

    inherit {dbgsettings}

                        {emssettings}

                    {badmemory}

    Boot Loader Settings

    identifier {bootloadersettings}

    inherit {globalsettings}

                        {hypervisorsettings}

    Hypervisor Settings

    identifier {hypervisorsettings}

    hypervisordebugtype Serial

    hypervisordebugport 1

    hypervisorbaudrate 115200

    Resume Loader Settings

    identifier {resumeloadersettings}

    inherit {globalsettings}

    X:\Sources>

    Was this answer helpful?

    0 comments
  3. Anonymous
    2021-10-26T20:35:59+00:00

    (1) Let me see your BCD now. I want to see {bootmgr} at top in the Firmware Boot Manager & a lot of the junk removed...

    BCDEdit /Enum All <<<I expect to see big differences in {fwbootmgr}

    (2) Go into BIOS & examine the Boot screen. Does it have a huge list of boot options with many duplicates? What does it look like? Then go to the Exit screen & set BIOS to defaults. It might say something like "Restore Defaults". Go back to the Boot screen. Does it look different? Then be sure to save changes before you exit. There's an option on the Exit screen that should say something like that.

    (3) Well let's see the GPT Attributes of your EFI & Recovery partitions...

    DiskPart

    List Vol <<<List the volumes

    >>Volume ### Ltr Label Fs Type Size Status Info
    >>---------- --- ----------- ----- ---------- ------- --------- --------
    >>Volume 0 C System NTFS Partition 930 GB Healthy <<<Windows
    >>Volume 1 EFI FAT32 Partition 100 MB Healthy Hidden <<<EFI
    >>Volume 2 D NTFS Partition 502 MB Healthy Hidden <<<Recovery
    >>Volume 3 E USB DISK FAT32 Removable 57 GB Healthy

    Select Vol 1 <<<Focus on EFI -- I see you've got a label on it now

    Detail Part <<<Show partition details

    Select Vol 2 <<<Focus on Recovery

    Detail Part <<<Show details

    Exit

    DIR D:\ /a /s <<<Show dir of Recovery partition

    /a: Show hidden & system files too

    /s: Show contents of subfolders too

    Was this answer helpful?

    0 comments
  4. Anonymous
    2021-10-26T17:49:56+00:00

    Also tried: // is it the problem with "Volume 2 D NTFS Partition 502 MB Healthy Hidden"... has to have letter, or why has No data?

    Microsoft Windows [Version 10.0.19041.928]
    (c) Microsoft Corporation. All rights reserved.

    X:\Sources>bootrec /scanos
    Scanning all disks for Windows installations.

    Please wait, since this may take a while...

    Successfully scanned Windows installations.
    Total identified Windows installations: 0
    The operation completed successfully.

    X:\Sources>bootrec /fixmbr
    The operation completed successfully.

    X:\Sources>bootrec /fixboot Access is denied.

    X:\Sources>bootrec /rebuildbcd
    Scanning all disks for Windows installations.

    Please wait, since this may take a while...

    Successfully scanned Windows installations.
    Total identified Windows installations: 0
    The operation completed successfully.

    X:\Sources>diskpart

    Microsoft DiskPart version 10.0.19041.610

    Copyright (C) Microsoft Corporation.
    On computer: MININT-4IQTTAJ

    DISKPART> list vol

    Volume ### Ltr Label Fs Type Size Status Info

    Volume 0 C System NTFS Partition 930 GB Healthy
    Volume 1 EFI FAT32 Partition 100 MB Healthy Hidden
    Volume 2 D NTFS Partition 502 MB Healthy Hidden
    Volume 3 E USB DISK FAT32 Removable 57 GB Healthy

    DISKPART>

    DISKPART> exit

    Leaving DiskPart...

    X:\Sources>d:

    D:&gt;dir
    Volume in drive D has no label.
    Volume Serial Number is 0695-D056

    Directory of D:\

    10/25/2021 09:38 AM 0 Recovery.txt
    1 File(s) 0 bytes
    0 Dir(s) 89,628,672 bytes free

    D:&gt;notepad

    D:&gt;

    Was this answer helpful?

    0 comments
  5. Anonymous
    2021-10-26T17:05:23+00:00

    I executed but the same error I have got, well ???

    Was this answer helpful?

    0 comments
