System Restore

Anonymous

While Trying To Create A Restore Point In System Restore I Get The Following Error Message .

"The Restore Point Could Not Be Created For The Following Reason : Insufficient Storage Available To Create Either A Shadow Copy Storage File Or Other Shadow Copy Data (0x8004231F)" !!!

Locked Question. This question was migrated from the Microsoft Support Community. You can vote on whether it's helpful, but you can't add comments or replies or follow the question.

0 comments

44 answers

Anonymous

2023-11-27T05:47:25+00:00

2023-11-26 23:42:21 GMT-06:00

AcronisVSSDoctor-net45, 1.1.53.0, v4.0.30319

Microsoft Windows NT 6.2.9200.0, 4.0.30319.42000

===========================================================

VSS Services Configuration and Status

Status: OK

Description: All VSS-related services are configured correctly

Services:

Name: swprv

Title: Microsoft Software Shadow Copy Provider

Status: Stopped

ReferenceStatus:

NeedToFixStatus: False

StartMode: Manual

ReferenceStartMode: Manual

NeedToFixStartMode: False

IsOk: True

ExpectationDescription:

Exception:

Name: VSS

Title: Volume Shadow Copy

Status: Stopped

ReferenceStatus:

NeedToFixStatus: False

StartMode: Manual

ReferenceStartMode: Manual

NeedToFixStartMode: False

IsOk: True

ExpectationDescription:

Exception:

Name: EventSystem

Title: COM+ Event System

Status: Running

ReferenceStatus: Running

NeedToFixStatus: False

StartMode: Auto

ReferenceStartMode: Auto

NeedToFixStartMode: False

IsOk: True

ExpectationDescription:

Exception:

===========================================================

VSS Access Control Configuration

Status: OK

Description: Known VSS access control entries are configured correctly

AccessControls:

UserName: NT Authority\NetworkService

EntryExists: True

UserExists: True

IsActive: True

IsOk: True

StatusDescription:

===========================================================

VSS Components Availability

Status: OK

Description: VSS components are accessible

===========================================================

VSS Writers Status

Status: OK

Description: All VSS writers are working correctly

Writers:

Name: Task Scheduler Writer

Id: {d61d61c8-d73a-4eee-8cdd-f6f9786b7124}

State: [1] Stable

IsOk: True

Error: No error

Name: VSS Metadata Store Writer

Id: {75dfb225-e2e4-4d39-9ac9-ffaff65ddf06}

State: [1] Stable

IsOk: True

Error: No error

Name: Performance Counters Writer

Id: {0bada1de-01a9-4625-8278-69e735f39dd2}

State: [1] Stable

IsOk: True

Error: No error

Name: ASR Writer

Id: {be000cbe-11fe-4426-9c58-531aa6355fc4}

State: [1] Stable

IsOk: True

Error: No error

Name: System Writer

Id: {e8132975-6f93-4464-a53e-1050253ae220}

State: [1] Stable

IsOk: True

Error: No error

Name: IIS Config Writer

Id: {2a40fd15-dfca-4aa8-a654-1f8c654603f6}

State: [1] Stable

IsOk: True

Error: No error

Name: MSMQ Writer (MSMQ)

Id: {7e47b561-971a-46e6-96b9-696eeaa53b2a}

State: [1] Stable

IsOk: True

Error: No error

Name: Shadow Copy Optimization Writer

Id: {4dc3bdd4-ab48-4d07-adb0-3bee2926fd7f}

State: [1] Stable

IsOk: True

Error: No error

Name: WMI Writer

Id: {a6ad56c2-b509-4e6c-bb19-49d8f43532f0}

State: [1] Stable

IsOk: True

Error: No error

Name: Registry Writer

Id: {afbab4a2-367d-4d15-a586-71dbb18f8485}

State: [1] Stable

IsOk: True

Error: No error

Name: IIS Metabase Writer

Id: {59b1f0cf-90ef-465f-9609-6ca8b2938366}

State: [1] Stable

IsOk: True

Error: No error

Name: MSSearch Service Writer

Id: {cd3f2362-8bef-46c7-9181-d62844cdc0b2}

State: [1] Stable

IsOk: True

Error: No error

===========================================================

VSS Shadow Storages Status

Status: Warn

Description: Some VSS shadow storages are misconfigured

Storages:

ForVolume: C:\

OnVolume: C:\

Used: 1417 MB

Allocated: 1820 MB

Maximum: 12 GB

Minimum: 320 MB

VolumeSize: 110 GB

Available: 30 GB

TargetMaximum: 11 GB

MaximumGreaterThenMinimum: True

MaximumIsEnough: True

MaximumIsNotReached: True

AvailableIsEnoughForMaximum: True

IsOk: True

Description:

ForVolume: D:\

OnVolume: D:\

Used: 0 B

Allocated: 0 B

Maximum: 298 GB

Minimum: 320 MB

VolumeSize: 298 GB

Available: 18 MB

TargetMaximum: 29 GB

MaximumGreaterThenMinimum: True

MaximumIsEnough: True

MaximumIsNotReached: True

AvailableIsEnoughForMaximum: False

IsOk: False

Description: Available free space is not enough for configured Maximum. Clean up some space.

===========================================================

Disk Free Space Available

Status: Warn

Description: Some disks have insufficient free space. Perform a cleanup.

Volumes:

Name: C:\

DeviceId: \?\Volume{82a8bf11-0000-0000-0000-402400000000}\

Size: 110 GB

Available: 30 GB

Minimum: 320 MB

IsOk: True

Description:

IsMounted: True

Name: D:\

DeviceId: \?\Volume{a172abcb-0000-0000-0000-100000000000}\

Size: 298 GB

Available: 18 MB

Minimum: 320 MB

IsOk: False

Description: Free space is below required minimum

IsMounted: True

Name: \?\Volume{82a8bf11-0000-0000-0000-100000000000}\

DeviceId: \?\Volume{82a8bf11-0000-0000-0000-100000000000}\

Size: 578 MB

Available: 127 MB

Minimum: 320 MB

IsOk: False

Description: Free space is below required minimum

IsMounted: False

Name: \?\Volume{82a8bf11-0000-0000-0000-50d11b000000}\

DeviceId: \?\Volume{82a8bf11-0000-0000-0000-50d11b000000}\

Size: 529 MB

Available: 76 MB

Minimum: 320 MB

IsOk: False

Description: Free space is below required minimum

IsMounted: False

===========================================================

Disk I/O Load

Status: OK

Description: All disks are currently not overloaded

Disks:

Name: 0 C:

DiskBytesPersec: 394442

DiskReadBytesPersec: 349667

DiskReadsPersec: 7

DiskTransfersPersec: 10

DiskWriteBytesPersec: 44774

DiskWritesPersec: 2

PercentDiskReadTime: 0

PercentDiskTime: 0

PercentDiskWriteTime: 0

PercentIdleTime: 98

IsOk: True

Name: 1 D:

DiskBytesPersec: 0

DiskReadBytesPersec: 0

DiskReadsPersec: 0

DiskTransfersPersec: 0

DiskWriteBytesPersec: 0

DiskWritesPersec: 0

PercentDiskReadTime: 0

PercentDiskTime: 0

PercentDiskWriteTime: 0

PercentIdleTime: 99

IsOk: True

===========================================================

NTFS Volume Access Control Configuration

Status: OK

Description: All volumes have correct access control configuration

Volumes:

Name: C:\

SystemHasAccess: True

SystemSid: S-1-5-18

IsOk: True

Description: "SYSTEM" account has "Full Control" access

Name: D:\

SystemHasAccess: True

SystemSid: S-1-5-18

IsOk: True

Description: "SYSTEM" account has "Full Control" access

Name: \?\Volume{82a8bf11-0000-0000-0000-100000000000}\

SystemHasAccess: True

SystemSid: S-1-5-18

IsOk: True

Description: "SYSTEM" account has "Full Control" access

Name: \?\Volume{82a8bf11-0000-0000-0000-50d11b000000}\

SystemHasAccess: True

SystemSid: S-1-5-18

IsOk: True

Description: "SYSTEM" account has "Full Control" access

===========================================================

Event Log

Status: OK

Description: No VSS-related errors or warnings during previous day

Events:
Was this answer helpful?

0 comments No comments
Anonymous

2023-11-27T05:29:54+00:00

<repost>

Re-run the Acronis tool and post an updated report.

</repost>
Was this answer helpful?

0 comments No comments
Anonymous

2023-11-27T02:07:06+00:00

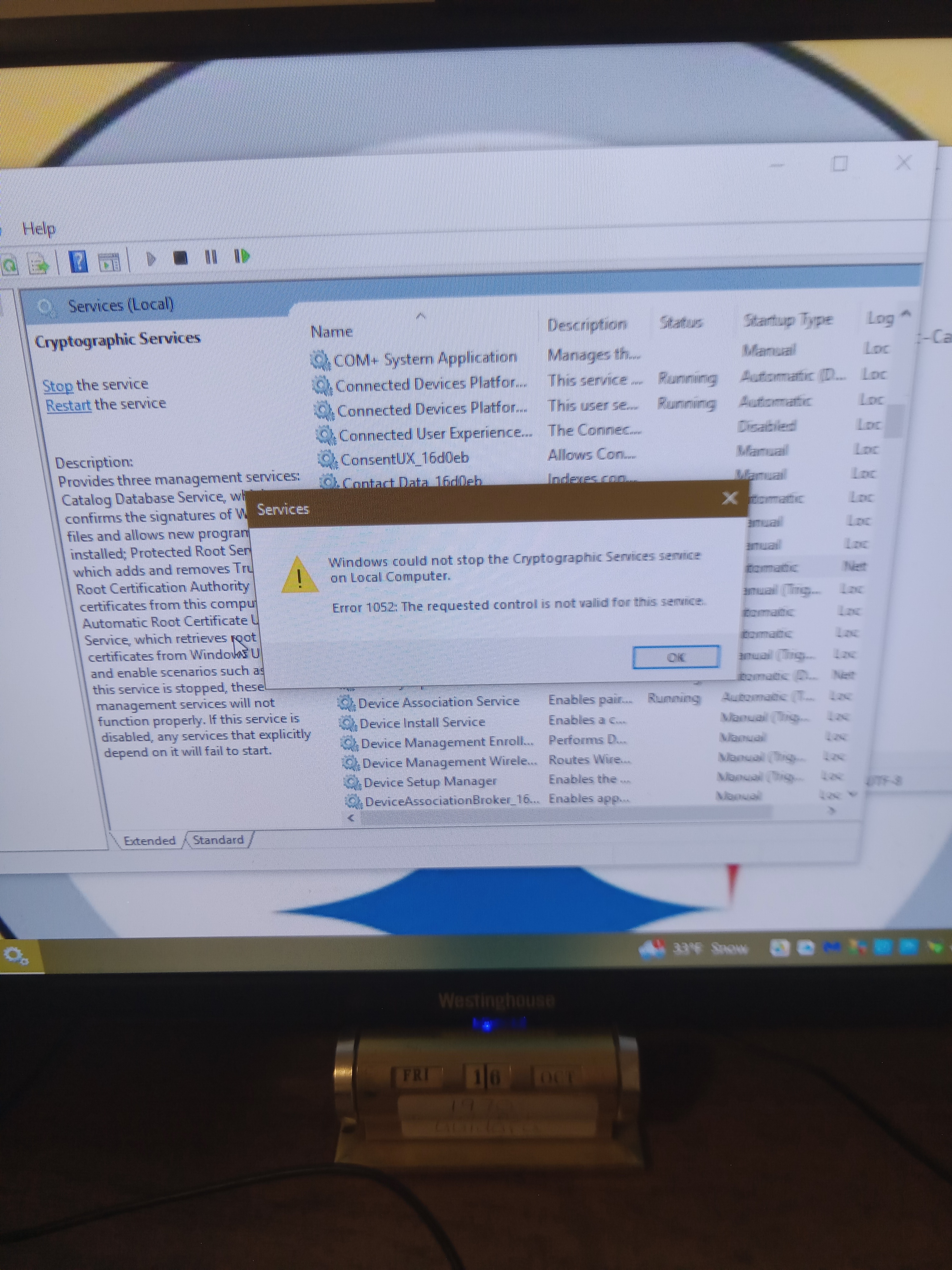

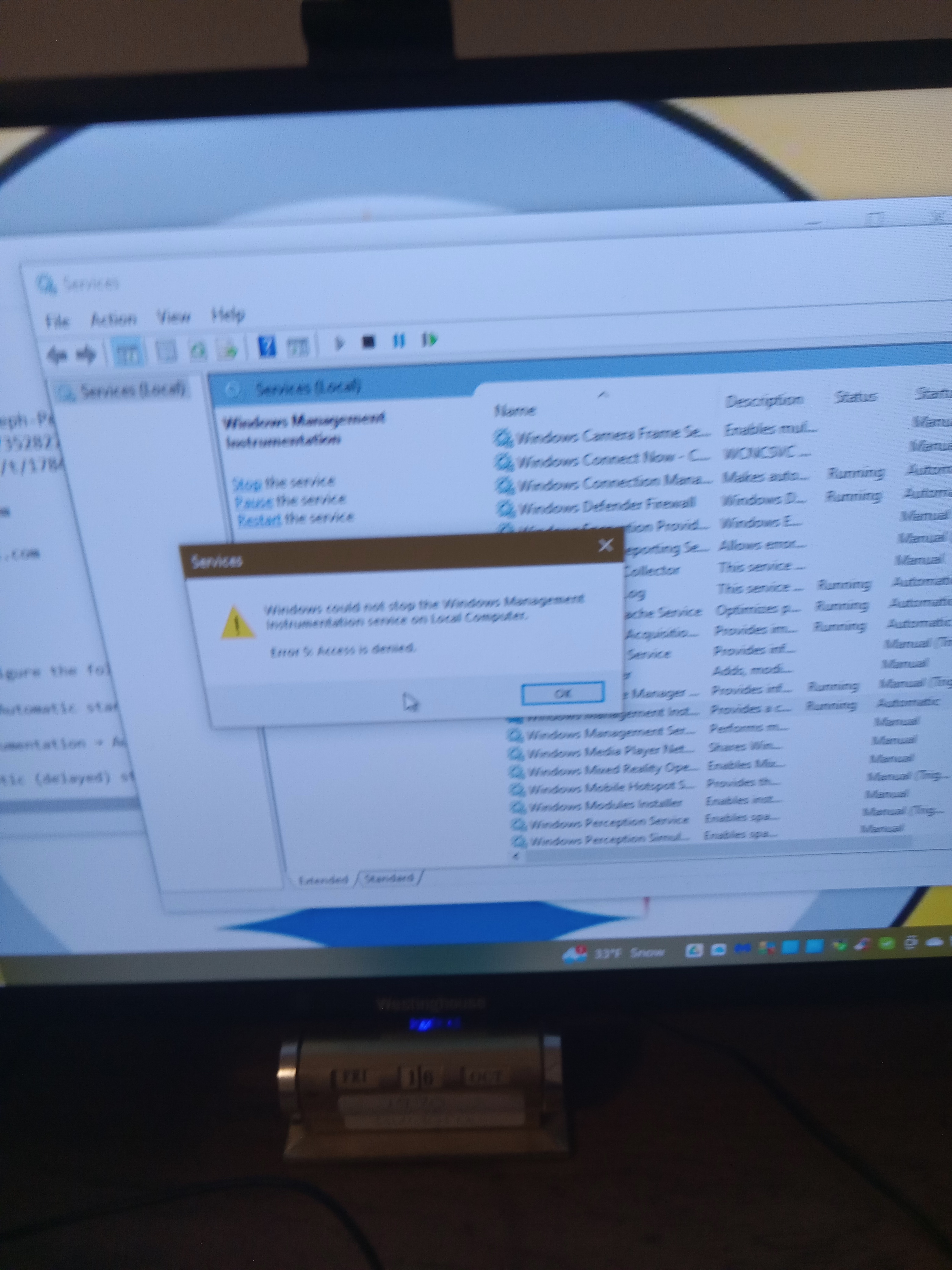

The First 2 Had Errors The 3rd Had No Errors !!
Was this answer helpful?

0 comments No comments
Anonymous

2023-11-26T02:35:06+00:00

Try to start each of the above services. Note down the errors, if any.

Re-run the Acronis tool and post an updated report.
Was this answer helpful?

0 comments No comments
Anonymous

2023-11-25T22:45:37+00:00

Ok Those 3 Are Already On Automatic Start Now What ?
Was this answer helpful?

0 comments No comments
