cloned OS drive "System Reserved" partition Not 100% afterwards.

Anonymous
2024-06-24T15:29:41+00:00

Hi,

I cloned my OS drive twice to move to a newer hardware. But the last time, it seems the "System Reserved" partition of the drive had some issues.  1st: it is not showing "System Reserved" on that partition.  2nd: the following attributes "system, Active, MBR" are not on it and shows only "Primary".  My PC still boots up, but the whole purpose of this exercise was to get compatible to install Windows 11 and upgrade the OS drive with new and faster hardware.  My questions are:

Is there anything I can do to fix it other than re-installing the OS?

Is this going to cause any issue with upgrade to Windows 11?

See below properties of this partition.

Device SCSI\Disk&Ven_NVMe&Prod_CT2000T705SSD3\5&2384875e&0&000000 was not migrated due to partial or ambiguous match.

Last Device Instance Id: SCSI\Disk&Ven_Samsung&Prod_SSD_870_QVO_1TB\4&fa535c2&0&000000

Class Guid: {4d36e967-e325-11ce-bfc1-08002be10318}

Location Path:

Migration Rank: 0xF000FF001001F020

Present: false

Status: 0xC00007196/15/2024 10:51:31 AM Device not migrated

6/15/2024 10:51:31 AM Device configured (disk.inf)

Device SCSI\Disk&Ven_NVMe&Prod_CT2000T705SSD3\5&2384875e&0&000000 was configured.

Driver Name: disk.inf

Class Guid: {4d36e967-e325-11ce-bfc1-08002be10318}

Driver Date: 06/21/2006

Driver Version: 10.0.19041.4355

Driver Provider: Microsoft

Driver Section: disk_install.NT

Driver Rank: 0xFF0007

Matching Device Id: GenDisk

Outranked Drivers:

Device Updated: false

Parent Device: PCI\VEN_C0A9&DEV_542B&SUBSYS_2B00C0A9&REV_00\4&2ec11bf&0&000A

6/15/2024 10:51:31 AM Device started (disk)

Device SCSI\Disk&Ven_NVMe&Prod_CT2000T705SSD3\5&2384875e&0&000000 was started.

Driver Name: disk.inf

Class Guid: {4d36e967-e325-11ce-bfc1-08002be10318}

Service: disk

Lower Filters:

Upper Filters:

Thank you.

Windows for home | Windows 10 | Performance and system failures

Locked Question. This question was migrated from the Microsoft Support Community. You can vote on whether it's helpful, but you can't add comments or replies or follow the question.

0 comments
Answer accepted by question author
Ramesh 181.8K Reputation points Volunteer Moderator
2024-07-11T15:15:35+00:00

You're welcome, Givi. Glad to have helped. 👍

You may close this thread by marking helpful posts as answers if there are no further questions. How to mark Your question as "Answered".

Was this answer helpful?

2 people found this answer helpful.
0 comments

56 additional answers

Sort by: Most helpful
Most helpful Newest Oldest
  1. Anonymous
    2024-07-11T15:06:26+00:00

    Ramesh,

    Thank you very much for your help and persistance in this matter, it was great working with you. I am very happy about the work that you did. Take care.

    Regards,

    Givi

    Was this answer helpful?

    0 comments
  2. Ramesh 181.8K Reputation points Volunteer Moderator
    2024-07-11T15:00:07+00:00

    Great, everything looks good.

    Was this answer helpful?

    0 comments
  3. Anonymous
    2024-07-11T14:57:35+00:00

    Hi Ramesh,

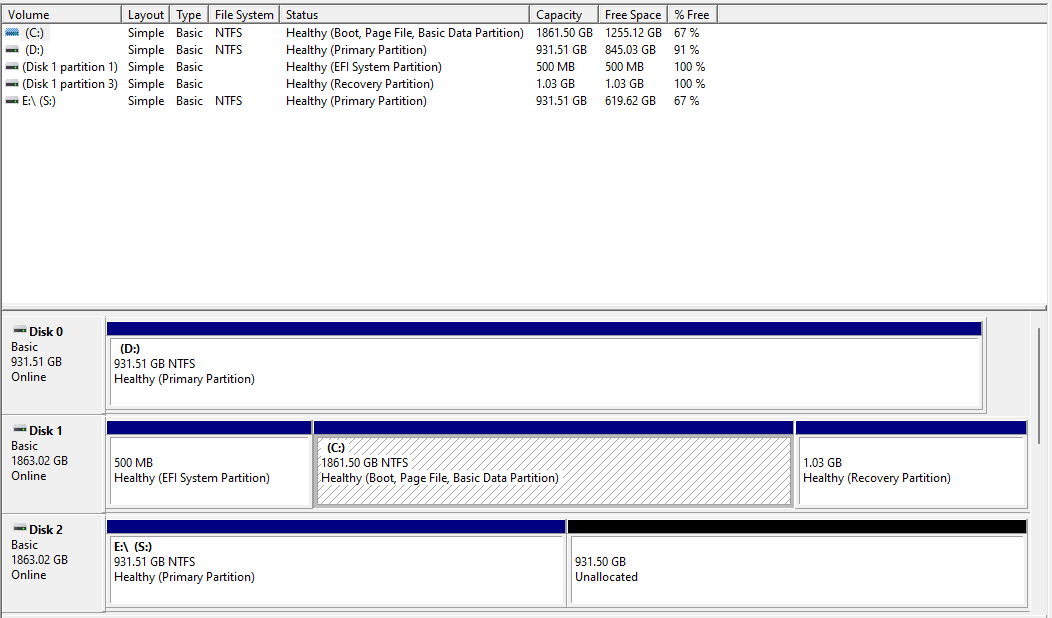

    It looks much better and no issues, thanks. See below outputs and screeen shot.

    DISKPART> select disk 1

    Disk 1 is now the selected disk.

    DISKPART> list part

    Partition ### Type Size Offset

    Partition 1 System 500 MB 1024 KB

    Partition 2 Primary 1861 GB 501 MB

    Partition 3 Primary 1053 MB 1861 GB

    DISKPART> select part 3

    Partition 3 is now the selected partition.

    DISKPART> set id=de94bba4-06d1-4d40-a16a-bfd50179d6ac override

    DiskPart successfully set the partition ID.

    DISKPART> gpt attributes=0x8000000000000001

    DiskPart successfully assigned the attributes to the selected GPT partition.

    DISKPART> exit

    Leaving DiskPart...

    C:\Windows\System32>reagentc /info

    Windows Recovery Environment (Windows RE) and system reset configuration

    Information:

    Windows RE status:         Enabled

Windows RE location:       \\?\GLOBALROOT\device\harddisk1\partition3\Recovery\WindowsRE

Boot Configuration Data (BCD) identifier: af072328-3edb-11ef-9529-83e3b04918e0

Recovery image location:

Recovery image index:      0

Custom image location:

Custom image index:        0

    REAGENTC.EXE: Operation Successful.

    C:\Windows\System32>

    Was this answer helpful?

    0 comments
  4. Ramesh 181.8K Reputation points Volunteer Moderator
    2024-07-11T14:45:13+00:00

    Try:

    • diskpart
    • select disk 1
    • select part 3
    • set id=de94bba4-06d1-4d40-a16a-bfd50179d6ac override
    • gpt attributes=0x8000000000000001
    • exit
    • reagentc /info
