How to solve "The Installation Failed in the Second Boot Phase" 0xC1900101 - 0x40017

Anonymous
2025-06-26T21:46:02+00:00

I've been trying to upgrade from Windows 10 to Windows 11 for over a month now. Each time I get blue screen message stating: Inaccessable Boot Device. After my computer loads back into Windows 10 I get another error message saying that the Installation Failed in the Second Boot Phase. I've tried upgrade via the upgrade exe file that you can get from microsoft, and through a Windows 11 installation media file that I created.

I've also tried removing all excess/old drivers and ensuring that all of my drivers, and my BIOS are up to date. I've tried enabling and disabling secure boot, unplugging everything except my mouse, hard drives, and an aRGB controller that is pretty difficult to get to.

I also made sure to check my discs and registry to remove and repair any issues there.

My computer specs are:
AMD Ryzen 7 3700x
ASUS TUF X470-Plus Gaming
Corsair Vengance RGB PRO 32GB (2x16GB) DDR4 @ 3200mhz
ASUS TUF RTX 3070 8GB

Drives:
Main OS -> C:/NVMe Samsung 980 1TB
Game Storage -> E:/NVMe Crucial P3 4TB - CT4000P3PSSD8
Back Up Storage -> D:/SATA SSD SPCC 238GB

Below is a copy of my setupapi.dev.log file from my most recent attempt. I thought I could maybe decode it myself with some googling but I honestly have no idea what I'm looking at to know if I'm hunting down the correct things.

setupapi.dev.log

Update: we were unable to upgrade to windows 11 without doing a fresh install. But this issue persisted even when trying to do a fresh install so I have marked the solution for when you get these errors while attempting a fresh install that worked for me.

Windows for home | Windows 10 | Install and upgrade

Locked Question. This question was migrated from the Microsoft Support Community. You can vote on whether it's helpful, but you can't add comments or replies or follow the question.

0 comments
Answer accepted by question author
Ivan B 124.7K Reputation points Independent Advisor
2025-06-27T23:01:45+00:00

Hi ,

In this case, you created the USB flash drive but did not install it by booting from the USB flash drive?

In this case, you have access to the BIOS, disable Secure Boot and CSM > save settings > Access the BIOS again, go to the Boot tab, select USB flash driver as the first boot option and the boot method must be UEFI. Save.

When restarting the PC, press any key on the keyboard to start the Windows installation process.

Remember, you must select the same version of Windows 10 that you are using for the license. If it is Home or Pro, select the version that you have the license for.

On the installation location selection screen, be careful when selecting the SSD. You can usually base your selection on the size and you must exclude the partition units that have Windows 10. If I am right, yours would be Disk 1. However, if you have any doubts, take a photo and post it here.

https://answers.microsoft.com/en-us/windows/for...

Independent Advisor - Community

Thanks

Was this answer helpful?

1 person found this answer helpful.
0 comments

44 additional answers

Sort by: Most helpful
Most helpful Newest Oldest
  1. Deleted

    This answer has been deleted due to a violation of our Code of Conduct. The answer was manually reported or identified through automated detection before action was taken. Please refer to our Code of Conduct for more information.

    Comments have been turned off. Learn more

  2. Deleted

    This answer has been deleted due to a violation of our Code of Conduct. The answer was manually reported or identified through automated detection before action was taken. Please refer to our Code of Conduct for more information.

    Comments have been turned off. Learn more

  3. Anonymous
    2025-06-27T04:01:15+00:00

    Working on resizing the partition and I'll uninstall razer drivers/programs as soon as I'm ready to attempt another win11 install (my mouse and keyboard are Razer so they are going to auto install drivers as soon as I plug them back in.)

    I uninstalled Corsair and CCleaner.

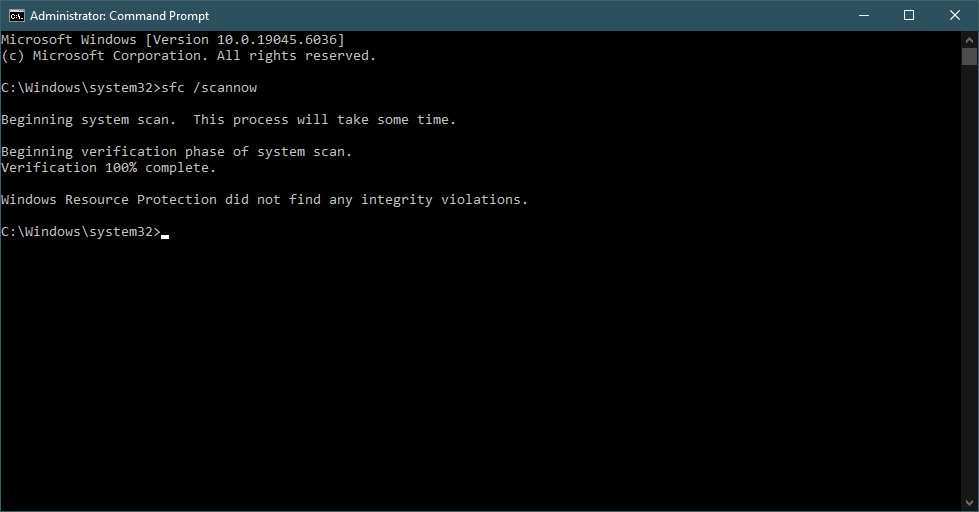

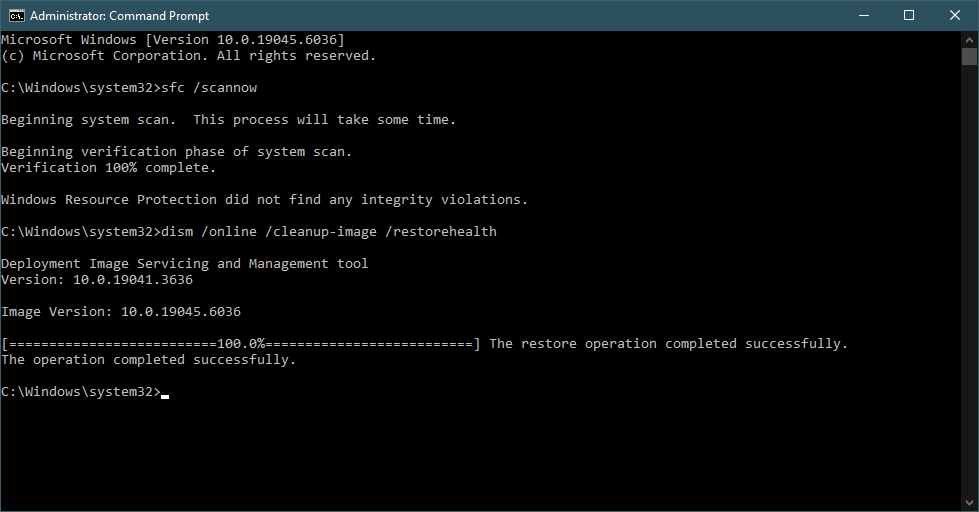

    Below are the sfc scan and the dism cleanup/restore

    https://learn-attachment.microsoft.com/api/attachments/19cd26a5-7de3-4ddc-9231-dbcdb85647eb?platform=QnA&fud_access=hC1SxZhn7m%2FZQJkOIiOVstu10yTQgXS4A%2FDBzZTg8nbaCgIogkrcDydMeI5Y4za2dOqDdWtsG2JNS3E35V60i9TiGHR7STMpJHheeXuDvO8nwjUlqCBHhJ0NDvuYN7OSiBxlSR5jm0O8Q4vFODKySwlEyi%2BIpia6IXoZgzZaiPfop5%2BjfZxU4K4nZjbfPHqEkfEJis7bnqPVeBm8lZmHRBrKLXHw35NSmGuXprPmBTnxS96IDtJ4HimVZkCYYjION9W9tjRZ1aDIbKGEH3fxmQEJDTOiobWqpHeAnVAvkNmDOTKQ0gXbHL7PJwd1hOx46TKz3g2n3d%2BU7brkkZNfZZ2YoQR6S5h8iBcZkgxkQLUlYhvJorh65WG5sIK%2BmtZxS2ZvTCu0vFkRdiPwmVj9Z5jFHmokABOY3JOp4ym440A%3DImage

    BIOS is already up to date.

    Secure Boot and fTPM are already enabled as well.

    I didn't think to try disconnecting from the internet too, I'll remove my Ethernet cable along with everything else once I'm ready to attempt the install.

    Was this answer helpful?

    0 comments
  4. Ramesh 182K Reputation points Volunteer Moderator
    2025-06-27T03:59:57+00:00
    1. Please create a Restore Point.
    2. From admin Command Prompt, run:

    sc.exe delete igdkmd64

    sc.exe delete xhunter1

    1. Enable Memory Integrity.
    2. Clean boot Windows using msconfig.exe. A clean boot is the process of starting Windows without loading any third-party applications or services. For more information, please refer to the Microsoft article.

    How to perform a clean boot in Windows - Microsoft Support:

    https://support.microsoft.com/en-us/topic/how-to-perform-a-clean-boot-in-windows-da2f9573-6eec-00ad-2f8a-a97a1807f3dd

    (Step 3 in the above link is crucial. You need to first enable "Hide all Microsoft Services" before clicking "Disable all".)

    Was this answer helpful?

    0 comments
