Starting the Recovery Drive

Carl Aiken 25 Reputation points
2026-07-15T23:27:35.6666667+00:00

Trying to create a recovery drive for backup on a USB thumbdrive. I have created recovery drives annually for many years. Recently I launched the Recovery Drive program but the USB drive could not be recognized and the "next" button was grayed out. The USB is empty, 64GB and formated NTFS. The recovery drive program does not see the plugged in USB to proceed.

Windows for home | Windows 11 | Recovery and backup
0 comments
Answer accepted by question author
Thomas4-N 22,010 Reputation points Microsoft External Staff Moderator
2026-07-19T14:47:39.55+00:00

Hello Carl Aiken,

Thank you for attaching the PDF. The screenshots confirm that Windows detects the USB correctly as Disk 1, a 57.62 GB removable drive, assigned E: and currently formatted as exFAT. The problem is therefore limited to the Recovery Drive tool.

Please work through these steps:

  1. Restart Recovery Drive, uncheck "Back up system files to the recovery drive", and select Next.
    • If E: now appears, create the basic recovery drive.
    • If E: still does not appear, continue below.
  2. Open Disk Management, right-click the E: partition on Disk 1, select Delete Volume, and leave the USB as Unallocated. Then reopen Recovery Drive.
  3. If the USB appears only with the system-files option cleared, open Command Prompt as administrator and run: reagentc /info. If Windows RE status shows Disabled, run: reagentc /enable
  4. Then restart Windows and retry with "Back up system files to the recovery drive" selected.
  5. If Recovery Drive still cannot list the USB, use Microsoft’s Windows 11 installation media instead. It can boot the computer into Windows Recovery Environment and provide recovery tools even when a Recovery Drive cannot be created.

If the answer is helpful, please click "Yes". If you have extra questions about this answer, please click "Comment".

Note: Please follow the steps in our documentation to enable e-mail notifications if you want to receive the related email notification for this thread.

Was this answer helpful?

2 people found this answer helpful.

4 additional answers

Sort by: Most helpful
Most helpful Newest Oldest
  1. Carl Aiken 25 Reputation points
    2026-07-18T17:06:51.36+00:00

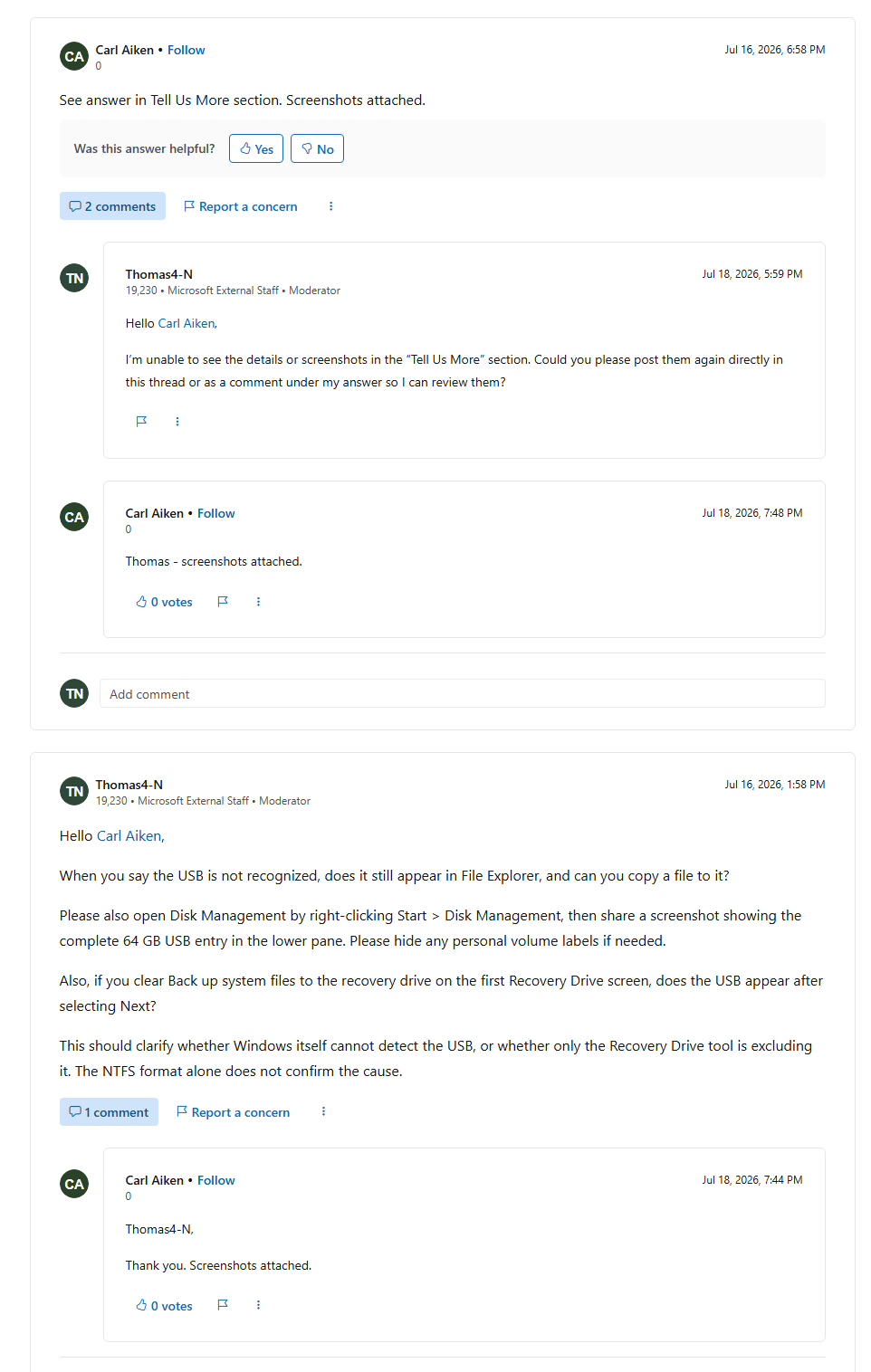

    Attached PDF file showing screen shots then added a comment and posted answer.

    Was this answer helpful?

  2. Carl Aiken 25 Reputation points
    2026-07-16T11:58:46.1033333+00:00

    See answer in Tell Us More section. Screenshots attached.

    Was this answer helpful?

  3. Thomas4-N 22,010 Reputation points Microsoft External Staff Moderator
    2026-07-16T06:58:16.2066667+00:00

    Hello Carl Aiken,

    When you say the USB is not recognized, does it still appear in File Explorer, and can you copy a file to it?

    Please also open Disk Management by right-clicking Start > Disk Management, then share a screenshot showing the complete 64 GB USB entry in the lower pane. Please hide any personal volume labels if needed.

    Also, if you clear Back up system files to the recovery drive on the first Recovery Drive screen, does the USB appear after selecting Next?

    This should clarify whether Windows itself cannot detect the USB, or whether only the Recovery Drive tool is excluding it. The NTFS format alone does not confirm the cause.

    Was this answer helpful?

  4. Amir Raza 0 Reputation points
    2026-07-15T23:36:46.27+00:00

    NTFS is a more secure file system, this was first used by Windows NT 3.5. Because it is a secure file system, it is not recognised by most operating system specially if they are installed on FAT file system. The "next" button is grey or disabled may be your USP disk is not formatted on compatible file system. You need a usb disk, which is formatted on a file system which is compatible with your operating system.

    Was this answer helpful?
