Onedrive seems to have created its own drive G partition and moved my previous drive G partition to drive L

(1) OK, you've got a backup of the current BCD (C:\BU\BCD_Backup) which can be restored as I wrote earlier (if necessary). But we need to be sure you can get that DVD booted properly in order to do it (since we can't trust the internal recovery environment yet). Yes, try to boot to it as I wrote using the Boot Menu F-Key while in UEFI mode. That will constitute a UEFI boot to the DVD. Hopefully, it can then do UEFI work. No need to remake the backup, but see whether you can do a BCDEdit.

(2) How did that letter H get onto your Recovery partition? It really shouldn't be there in Windows. It will get one automatically in the recovery environment, but it shouldn't last rebooted back to Windows. This shouldn't affect your letter G.

DiskPart <<<Enter DiskPart

List Vol <<<List the volume numbers & letters

Select Vol 3 <<<Select the Recovery volume

Remove Letter=H <<<Remove its letter

List Vol <<<Show the letter is gone

Exit <<<Exit

(3) Your BCD looks as before. We want /RebuildBCD to fix that. The Firmware Boot Manager (fwbootmgr) doesn't go to the Windows Boot Manager....

Firmware Boot Manager

---

identifier {fwbootmgr}

displayorder {c4337ee8-11b0-11ec-ab4f-806e6f6e6963} <<<What is this? A mini {bootmgr}?

                        {c4337ee7-11b0-11ec-ab4f-806e6f6e6963}       <<<A hard drive -- but which?

                        {c4337ee3-11b0-11ec-ab4f-806e6f6e6963}       <<<CD/DVD drive

                        {c4337ee6-11b0-11ec-ab4f-806e6f6e6963}       <<<What is this? A mini {bootmgr}?

timeout 0

And the real Windows Boot Manager has lost its device & path values...

Windows Boot Manager

---

identifier {bootmgr}

device unknown

description Windows Boot Manager

locale en-US

inherit {globalsettings}

default {current}

resumeobject {00699258-3744-11eb-956e-efd836ee9db2}

displayorder {current}

toolsdisplayorder {memdiag}

timeout 30

Here would be a fix...

(a) Add {bootmgr} to top of Displayorder, meaning boot will go there...

BCDEdit /Enum {fwbootmgr} <<<Show current {fwbootmgr}

BCDEdit /Set {fwbootmgr} Displayorder {bootmgr} /Addfirst

BCDEdit /Enum {fwbootmgr} <<<Show new {fwbootmgr}

(b) Fix Device & Path in the {bootmgr}...

BCDEdit /Enum {bootmgr}

BCDEdit /Set {bootmgr} Device partition=\Device\HarddiskVolume2

BCDEdit /Set {bootmgr} Path \EFI\MICROSOFT\BOOT\BOOTMGFW.EFI

BCDEdit /Enum {bootmgr}

So now you should see {bootmgr} at the top of the Displayorder list, & it has Device & Path values. If you don't see it, then restore your backup before you reboot...

BCDEdit /Import C:\BU\BCD_Backup /Clean

Otherwise, do the reboot. But -- if it doesn't -- you'll have to find a way to get to a recovery environment & do the /Import as I wrote earlier, i.e., do a List Vol to see the letter Windows has there first. Actually, that puts you in the same boat as if we just go ahead & do the /RebuildBCD.

HI PCR .. in reading through your last response, there is much to digest there. I decided to tackle each item, one by one starting with (1) question in green below, and post the results from there before continuing on to part 2 whuch I =need ed to reread several times. I am hoping that this first question being answered will be able to determine what if anything needs to be done next. I have included screen shots of disk management as well as diskpart info as requested. lets see where we are at now.

(1) Can you do those BCDEdit commands while booted to Windows? YES I can How about at the internal recovery environment (Shift+Restart)? Did Not TRy since was able to do it in windows directly Then let me see a "BCDEdit /Enum All".

yes... I managed to do several BCDEdit commands and have them work while booted to windows. included creating the backup of the BCD and the BCDEdit /Enum all. See the bolded text below

2021-10-27 11:12 AM

Microsoft Windows [Version 10.0.19042.1288]

(c) Microsoft Corporation. All rights reserved.

C:\WINDOWS\system32>cd \

C:&gt;dir

Volume in drive C is Local Disk

Volume Serial Number is 3FA8-6782

Directory of C:\

09/13/2021 02:14 PM <DIR> $WINDOWS.~BT

09/12/2019 05:33 PM 0 a.txt

10/14/2014 09:06 PM 72 Autoconfig.ini

10/12/2021 06:18 PM 31,834 b$ cclear-ON1 and others 2021-10-12.reg

10/25/2021 01:16 PM <DIR> BU

04/08/2014 07:34 PM 262,144 BzEngineTempFile16217.dk

03/22/2016 05:23 PM 9,835 config.xml

09/26/2019 08:56 AM <DIR> easeus_tb_cloud

09/13/2021 05:03 PM <DIR> ESD

04/29/2020 06:40 PM <DIR> HP Universal Print Driver

03/11/2016 06:13 PM <DIR> HP_LaserJet_Pro_MFP_M127-M128

08/11/2021 12:57 PM <DIR> HP_LaserJet_Pro_MFP_M225-M226

03/11/2016 07:18 PM <DIR> HP_M127_128_FW_Update

12/05/2020 02:38 PM <DIR> inetpub

11/08/2016 09:38 AM 68,400 INFO.2

01/03/2014 03:32 PM <DIR> Intel

04/26/2016 11:35 PM <DIR> Logs

09/04/2019 06:21 PM 562 most recent - map network drive to Igiveup.reg

10/21/2016 08:36 AM <DIR> NPE

12/07/2019 02:14 AM <DIR> PerfLogs

10/23/2021 05:10 PM <DIR> Program Files

10/12/2021 04:56 PM <DIR> Program Files (x86)

12/02/2014 09:40 PM <DIR> reduced size

12/07/2019 12:49 PM <DIR> Reg backup

10/21/2016 08:28 AM 248 rescue.info

08/17/2015 05:46 PM <DIR> System.sav

09/09/2021 02:00 PM <DIR> temp

07/09/2021 04:46 PM <DIR> Users

10/26/2021 05:10 PM <DIR> Windows

12/23/2017 08:14 PM <DIR> Windows10Upgrade

           8 File(s)        373,095 bytes

          22 Dir(s)  709,660,008,448 bytes free

C:&gt;cd windows

C:\Windows>cd system32

<<<<<<<<<------- entered dir command here and listed a ton of directories that I deleted as irrelevent here------------>

        5068 File(s)  2,770,439,279 bytes

         211 Dir(s)  709,659,840,512 bytes free

C:\Windows\System32>cd bu

The system cannot find the path specified.

---

C:\Windows\System32>cd \bu

---

C:\BU>dir

Volume in drive C is Local Disk

Volume Serial Number is 3FA8-6782

---

Directory of C:\BU

---

10/25/2021 01:16 PM <DIR> .

10/25/2021 01:16 PM <DIR> ..

           **0 File(s)              0 bytes**

           **2 Dir(s)  709,659,119,616 bytes free**

---

---

C:\BU>bcdedit /Export C:\bu\BCD_Backup

The operation completed successfully.

---

C:\BU>dir

Volume in drive C is Local Disk

Volume Serial Number is 3FA8-6782

---

Directory of C:\BU

---

10/27/2021 11:11 AM <DIR> .

10/27/2021 11:11 AM <DIR> ..

10/27/2021 11:11 AM 32,768 BCD_Backup

           **1 File(s)         32,768 bytes**

           **2 Dir(s)  709,658,501,120 bytes free**

---

C:\BU>

exited from cmd at this point

---

came back into Cmd here and tried the BCDEit /Enum all...

---

Microsoft Windows [Version 10.0.19042.1288]

(c) Microsoft Corporation. All rights reserved.

C:\WINDOWS\system32>bcdedit /enum All

Firmware Boot Manager

---

identifier {fwbootmgr}

displayorder {c4337ee8-11b0-11ec-ab4f-806e6f6e6963}

                    {c4337ee7-11b0-11ec-ab4f-806e6f6e6963}

                    {c4337ee3-11b0-11ec-ab4f-806e6f6e6963}

                    {c4337ee6-11b0-11ec-ab4f-806e6f6e6963}

timeout 0

Windows Boot Manager

---

identifier {bootmgr}

device unknown

description Windows Boot Manager

locale en-US

inherit {globalsettings}

default {current}

resumeobject {00699258-3744-11eb-956e-efd836ee9db2}

displayorder {current}

toolsdisplayorder {memdiag}

timeout 30

Firmware Application (101fffff)

---

identifier {c4337ee3-11b0-11ec-ab4f-806e6f6e6963}

description CD/DVD Drive

Firmware Application (101fffff)

---

identifier {c4337ee6-11b0-11ec-ab4f-806e6f6e6963}

device partition=\Device\HarddiskVolume2

path \EFI\MICROSOFT\BOOT\BOOTMGFW.EFI

description Windows Boot Manager

Firmware Application (101fffff)

---

identifier {c4337ee7-11b0-11ec-ab4f-806e6f6e6963}

description Hard Drive

Firmware Application (101fffff)

---

identifier {c4337ee8-11b0-11ec-ab4f-806e6f6e6963}

device partition=\Device\HarddiskVolume2

path \EFI\Microsoft\Boot\bootmgfw.efi

description Windows Boot Manager

Windows Boot Loader

---

identifier {current}

device partition=C:

path \WINDOWS\system32\winload.efi

description Windows 10

locale en-US

inherit {bootloadersettings}

recoverysequence {201ca33c-3744-11eb-ab08-a9da93046d68}

displaymessageoverride Recovery

recoveryenabled Yes

allowedinmemorysettings 0x15000075

osdevice partition=C:

systemroot \WINDOWS

resumeobject {00699258-3744-11eb-956e-efd836ee9db2}

nx OptIn

bootmenupolicy Standard

Windows Boot Loader

---

identifier {201ca33c-3744-11eb-ab08-a9da93046d68}

device partition=H:

path \windows\system32\winload.efi

description Windows Recovery Environment

locale en-US

inherit {bootloadersettings}

displaymessage Recovery

osdevice partition=H:

systemroot \windows

nx OptIn

bootmenupolicy Standard

winpe Yes

Windows Boot Loader

---

identifier {becbfbbb-74c1-11e3-a193-d3e592cc6be4}

device partition=C:

path \windows\system32\winload.efi

description Windows Recovery Environment

inherit {bootloadersettings}

osdevice partition=C:

systemroot \windows

nx OptIn

winpe Yes

Resume from Hibernate

---

identifier {00699258-3744-11eb-956e-efd836ee9db2}

device partition=C:

path \WINDOWS\system32\winresume.efi

description Windows Resume Application

locale en-US

inherit {resumeloadersettings}

recoverysequence {201ca33c-3744-11eb-ab08-a9da93046d68}

recoveryenabled Yes

allowedinmemorysettings 0x15000075

filedevice partition=C:

filepath \hiberfil.sys

bootmenupolicy Standard

debugoptionenabled No

Windows Memory Tester

---

identifier {memdiag}

device unknown

path \boot\memtest.exe

description Windows Memory Diagnostic

locale en-US

inherit {globalsettings}

badmemoryaccess Yes

EMS Settings

---

identifier {emssettings}

bootems No

Debugger Settings

---

identifier {dbgsettings}

debugtype Serial

debugport 1

baudrate 115200

RAM Defects

---

identifier {badmemory}

Global Settings

---

identifier {globalsettings}

inherit {dbgsettings}

                    {emssettings}

                    {badmemory}

Boot Loader Settings

---

identifier {bootloadersettings}

inherit {globalsettings}

                    {hypervisorsettings}

Hypervisor Settings

---

identifier {hypervisorsettings}

hypervisordebugtype Serial

hypervisordebugport 1

hypervisorbaudrate 115200

Resume Loader Settings

---

identifier {resumeloadersettings}

inherit {globalsettings}

Device options

---

identifier {201ca33d-3744-11eb-ab08-a9da93046d68}

description Windows Recovery

ramdisksdidevice partition=H:

ramdisksdipath \Recovery\WindowsRE\boot.sdi

Device options

---

identifier {becbfbbc-74c1-11e3-a193-d3e592cc6be4}

description Ramdisk Options

ramdisksdidevice partition=C:

ramdisksdipath \Recovery\becbfbbb-74c1-11e3-a193-d3e592cc6be4\boot.sdi

C:\WINDOWS\system32>

then exited.

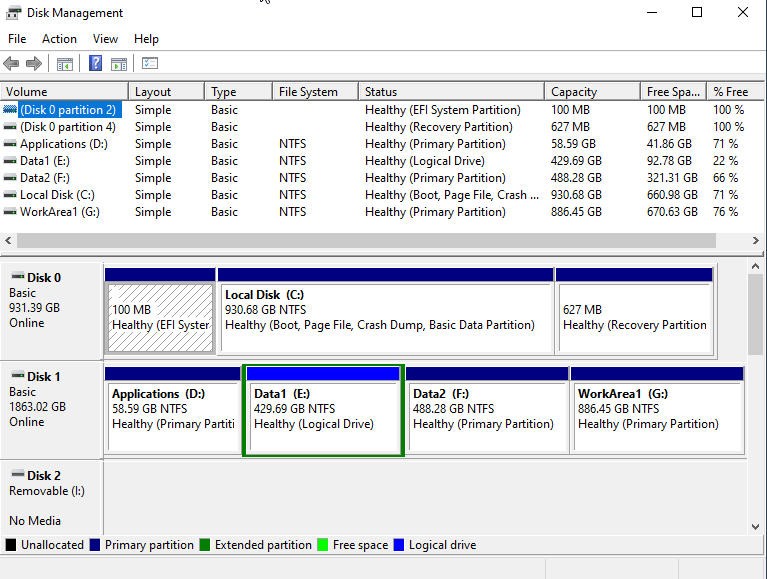

disk management screen shot...follows

![Image](https://learn-attachment.microsoft.com/api/attachments/0397f100-c5be-490e-b90b-32a59d4fddf9?platform=QnA

and here is the related DiskPart info. I find it curious that Volume 0 and Volume 1 which are DVD devices are showing up where they are in the bolded lines below

2021-10-27 10:55 AM

Microsoft Windows [Version 10.0.19042.1288]

(c) Microsoft Corporation. All rights reserved.

C:\WINDOWS\system32>diskpart

Microsoft DiskPart version 10.0.19041.964

Copyright (C) Microsoft Corporation.

On computer: GARRY-INTEL1

DISKPART> list vol

Volume ### Ltr Label Fs Type Size Status Info

---

Volume 0 Y DVD-ROM 0 B No Media

Volume 1 Z DVD-ROM 0 B No Media

Volume 2 C Local Disk NTFS Partition 930 GB Healthy Boot

Volume 3 FAT32 Partition 100 MB Healthy System

Volume 4 H NTFS Partition 627 MB Healthy Hidden

Volume 5 D Application NTFS Partition 58 GB Healthy

Volume 6 E Data1 NTFS Partition 429 GB Healthy

Volume 7 F Data2 NTFS Partition 488 GB Healthy

Volume 8 G WorkArea1 NTFS Partition 886 GB Healthy

Volume 9 I Removable 0 B No Media

Volume 10 J Removable 0 B No Media

Volume 11 K Removable 0 B No Media

Volume 12 M Removable 0 B No Media

DISKPART> select vol 3

Volume 3 is the selected volume.

DISKPART> detail part

Partition 2

Type : c12a7328-f81f-11d2-ba4b-00a0c93ec93b

Hidden : Yes

Required: No

Attrib : 0X8000000000000000

Offset in Bytes: 135266304

Volume ### Ltr Label Fs Type Size Status Info

---

* Volume 3 FAT32 Partition 100 MB Healthy System

DISKPART> exit

Leaving DiskPart...

C:\WINDOWS\system32>diskpart

Microsoft DiskPart version 10.0.19041.964

Copyright (C) Microsoft Corporation.

On computer: GARRY-INTEL1

DISKPART> select disk 0

Disk 0 is now the selected disk.

DISKPART> list part

Partition ### Type Size Offset

---

Partition 1 Reserved 128 MB 17 KB

Partition 2 System 100 MB 129 MB

Partition 3 Primary 930 GB 229 MB

Partition 4 Recovery 627 MB 930 GB

DISKPART> exit

Leaving DiskPart...

C:\WINDOWS\system32>diskpart

Microsoft DiskPart version 10.0.19041.964

Copyright (C) Microsoft Corporation.

On computer: GARRY-INTEL1

DISKPART> select vol 2

Volume 2 is the selected volume.

DISKPART> detail part

Partition 3

Type : ebd0a0a2-b9e5-4433-87c0-68b6b72699c7

Hidden : No

Required: No

Attrib : 0000000000000000

Offset in Bytes: 240123904

Volume ### Ltr Label Fs Type Size Status Info

---

* Volume 2 C Local Disk NTFS Partition 930 GB Healthy Boot

DISKPART> exit

Leaving DiskPart...

C:\WINDOWS\system32>

I did try to deal with item (2) of yours but I may not have booted correctly into the bios as I just did the normal delete key press while booting. The link you provided says different key required to get to the bootmgr options. Doing it the way I did, produced the same failed results as before with the BCDEdit commands.

If you want me to go ahead and follow the steps in item 2 more carefully this time I will if you think it is necessary.

Thanks again for all your help.

Cheers!

Garry

(1) Can you do those BCDEdit commands while booted to Windows? How about at the internal recovery environment (Shift+Restart)? Then let me see a "BCDEdit /Enum All".

(2) That DVD looks like UEFI alright. Did you boot to it properly? This means not only that BIOS must be in UEFI mode, but, if it offers two options to boot the DVD, you must choose the one that says it's UEFI. Mine precedes the DVD identifier with "UEFI:", but it gives me only that one choice. I just booted to it, & it it did the /Export just fine. If you've got a BIOS that can be in both UEFI & Legacy at once, then I guess you'd get the choice. Mine can only be set to one or the other.

(a) Ensure BIOS is set to UEFI mode (or at least to both at once).

(b) The Boot Menu should be set to the Windows Boot Manager (bootmgr). Don't move the DVD above it.

(c) Insert the DVD, & boot the computer.

(d) At the manufacturer's logo (or shortly before) press the F-Key that gets to the BIOS Boot Menu screen. If you don't know it, look in here...

https://www.sysnative.com/forums/threads/get-access-to-bios-settings-boot-menu-f-keys-hotkeys-by-system-manufacturer-oem.23010/ Get access to BIOS settings & Boot Menu: F-keys/Hotkeys by System Manufacturer (OEM)

Note: That 3rd-party site is knowledgeable, but I know nothing of any downloads or links that are there.

(e) Select the DVD boot item that says it's UEFI.

(f) You will see a "Press any key" message to boot the DVD. If not pressed in time, the boot will go to Windows.

(3) You are right, volume numbers & disk numbers don't necessarily match. Mine didn't either. It was Dell put that label (ESP - EFI System Partition) on my EFI. Your EFI partition has a wrong Attrib. I doubt it caused this problem, but fix it this way...

DiskPart <<<Enter DiskPart

List Vol <<<List the volume numbers

Select Vol 3 <<<Select the EFI volume -- yours likely still is 3

GPT ATTRIBUTES=0x8000000000000000

Detail Part <<<Show partition details

Exit <<<Exit

That will prevent the partition from having a drive letter automatically assigned -- not that I see one had been assigned -- but that Attrib is normal for EFI.

(3) EFI, Windows, & Recovery all do show up in your Disk Management. What doesn't show is the MSR (Microsoft Reserved) which is normal. It looks like it is Disk 0, Partition 1 for you. Try...

DiskPart

Select Disk 0

List Part

Exit

Here's mine. The MSR is partition 2 for me, & it doesn't show up in Disk Management...

hi PCR... thanks again for sticking with me.

(1) The Installation DVD needs to be in UEFI format. for your UEFI system. Open it in File Explorer. Is there an EFI folder & a BootMGR.efi file...?...

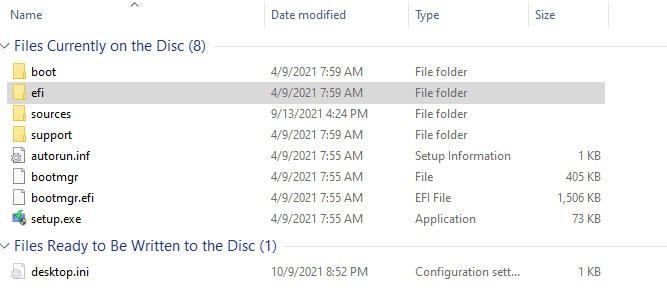

in answer to your first question, here is what is on the installation disc"

**(**2) Let's look at your EFI partition. Open an Administrator Command Prompt, & enter the following commands...

vol3 is only Fat 32 partition but is unlabeled ESR like yours, but it seems to be same structure as yours above, except for the label. However, even though volume 3 was selected, it reported detail for partition 2 but partition does not show up in disk management (because it is hidden?) see rec highlighted statement below. I don't think that is an issue though as volumes and partitions are different.

Microsoft Windows [Version 10.0.19042.1288]

(c) Microsoft Corporation. All rights reserved.

C:\WINDOWS\system32>diskpart

Microsoft DiskPart version 10.0.19041.964

Copyright (C) Microsoft Corporation.

On computer: GARRY-INTEL1

DISKPART> list vol

Volume ### Ltr Label Fs Type Size Status Info

---

Volume 0 Y DVD-ROM 0 B No Media

Volume 1 Z ESD-ISO UDF DVD-ROM 4345 MB Healthy

Volume 2 C Local Disk NTFS Partition 930 GB Healthy Boot

Volume 3 FAT32 Partition 100 MB Healthy System

Volume 4 H NTFS Partition 627 MB Healthy Hidden

Volume 5 D Application NTFS Partition 58 GB Healthy

Volume 6 E Data1 NTFS Partition 429 GB Healthy

Volume 7 F Data2 NTFS Partition 488 GB Healthy

Volume 8 G WorkArea1 NTFS Partition 886 GB Healthy

Volume 9 I Removable 0 B No Media

Volume 10 J Removable 0 B No Media

Volume 11 K Removable 0 B No Media

Volume 12 M Removable 0 B No Media

DISKPART> sel vol 3

---

Volume 3 is the selected volume.

DISKPART> detail part

Partition 2

Type : c12a7328-f81f-11d2-ba4b-00a0c93ec93b

Hidden : Yes

Required: No

Attrib : 0000000000000000

Offset in Bytes: 135266304

Volume ### Ltr Label Fs Type Size Status Info

---

* Volume 3 FAT32 Partition 100 MB Healthy System

DISKPART> exit

Leaving DiskPart...

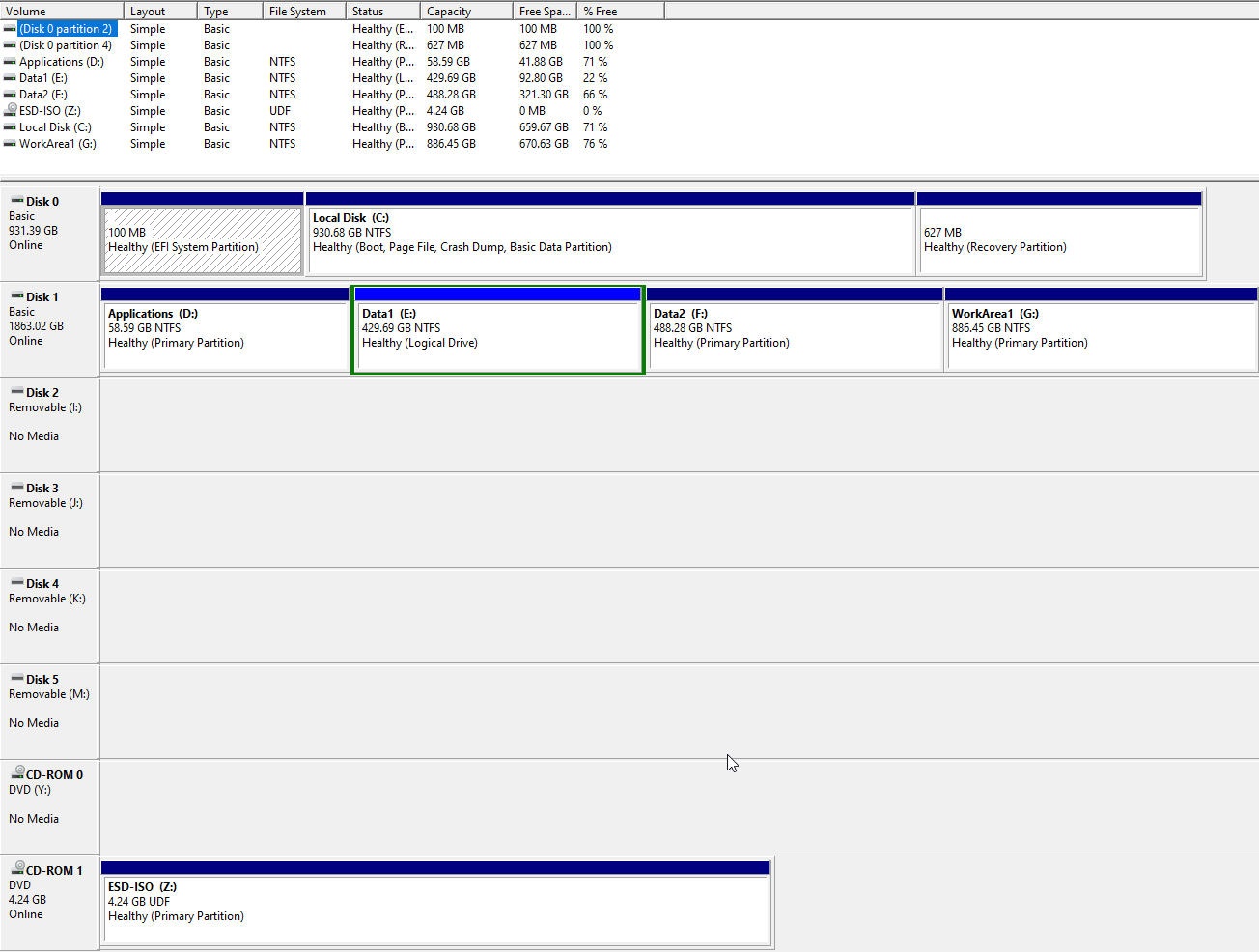

here again is my disk management configuration

![Image](https://learn-attachment.microsoft.com/api/attachments/5ec3664f-e141-495d-88b4-16a2c676a091?platform=QnA

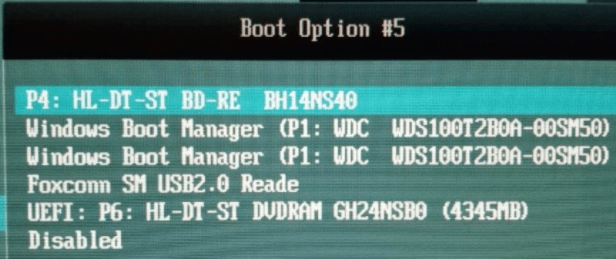

And now there are 5 instead of 4. Where did that fifth come from? They all have the same list of items in them & in the same order, (but maybe it's the one that is highlighted that gets chosen first?). yes I set this as the first boot option for reboot to boot from the dvd*. I don't know why you've got these options that group boot items within them.* My BIOS can switch from UEFI to Legacy. And each of those will be a single list of boot choices. I have a UEFI option in the screen shot of the bios you included above. what is that for?

the highlighted partition (5th one ?) is the DVD drive that I set to first boot option in order to boot from the DVD. It took a while but did finally boot from it. see drive cd rom 1 in the disk management screen shot above.

I'm queasy about messing with your BCD, but still am leaning toward it.

Sooooooo ... what next?? :-) If we try to fix the BCD and it really messes up, can / how to recover from it since I have no backup BCD to restore. Even though the recovery DVD appears as yours, I was not able to do the BCD edit when I tried before.

Since on Windows 20H2, would an update to version 21H1 do anything to help the situation?

Note that an hour or so ago I was exporting an edited photo to disk and boom... got a blue screen, but was able to recover from it OK. Don't know if it is a related issue or not, but I'm inclined to think not.

Cheers!

Garry

PS... Glad to see you are someone who likes a challenge. :-)

(1) The Installation DVD needs to be in UEFI format. for your UEFI system. Open it in File Explorer. Is there an EFI folder & a BootMGR.efi file...?...

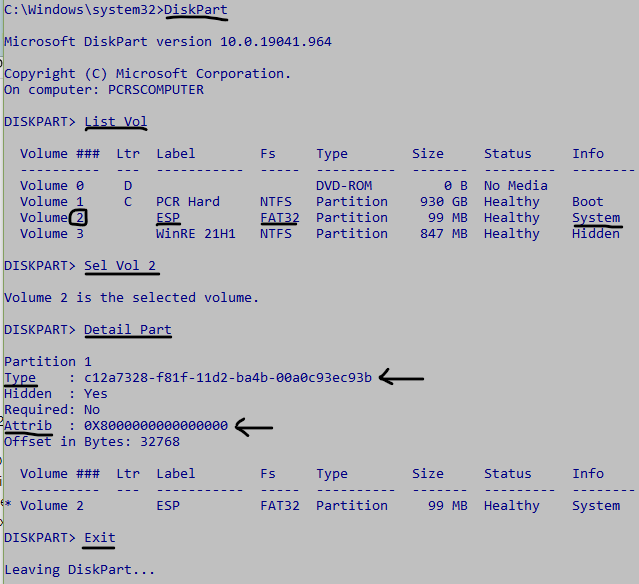

(2) Let's look at your EFI partition. Open an Administrator Command Prompt, & enter the following commands...

DiskPart <<<Enter DiskPart

List Vol <<<List the volume numbers

Select Vol 2 <<<Select the EFI volume -- use your number, not mine

                                                                   -- It will be FAT32 & System

Detail Part <<<Show partition details

Exit <<<Exit

(3) "BootRec /RebuildBCD" is the plan to fix the sloppiness in your BCD. That also could be a solution for the error message you got. But we need to get that DVD working first in case it will be needed to undo the "fix".

(4) I don't see a single boot option in your BIOS that has an entry for {bootmgr}. All of the items in each option seem to be going directly to a device, albeit two of them go to the Windows Boot Manager on the device. And those two seem to be the same exact device...

And now there are 5 instead of 4. Where did that fifth come from? They all have the same list of items in them & in the same order, (but maybe it's the one that is highlighted that gets chosen first?). I don't know why you've got these options that group boot items within them. My BIOS can switch from UEFI to Legacy. And each of those will be a single list of boot choices.

I'm queasy about messing with your BCD, but still am leaning toward it.
