Switching Windows Boot Manager from HDD to SSD

Anonymous
2022-03-31T00:10:33+00:00

Hey all, I am Dizah.

I recently upgraded my computer with a V-GEN SSD, I installed it properly and it works. I cloned my HDD to my SSD. I changed the boot priority 1 as my SSD and disable the boot priority 2. The restart process happened, I successfully signed in to my computer. But then I checked the disk management, I found that the booting process still happens from the HDD, as this image shows.

I am unsure that I have successfully switched the booting process from HDD to SSD. If anyone could get back to me that would be great.

Windows for home | Windows 10 | Install and upgrade

Locked Question. This question was migrated from the Microsoft Support Community. You can vote on whether it's helpful, but you can't add comments or replies or follow the question.

0 comments No comments
Answer accepted by question author
Anonymous
2022-04-03T03:27:26+00:00

That indicates BIOS did indeed direct the boot to EFI of the SSD. Its BCD is in use & can't be renamed. So, let's do it from the Recovery Environment (RE). But drive letters may be different there. So...

(a) Click any Power icon, then hold Shift as you click Restart.

 That should reboot to the RE at the "**Choose an Option**" screen.

(b) Click "Troubleshoot > Advanced Options > Command Prompt"

 That reboots again to a Command Prompt.

(c) Enter the following commands...

DiskPart <<<Enter DiskPart

List Vol <<<List the volumes & their letters

=== Examine the listing to see what letter is on the partition of size 118 GB. That will ===

=== be the SSD's Windows partition. Use that letter instead of E: (if different) in the ===

===BCDBoot command below. And if Volume 5 has a letter, use it instead of S:. ===


List Disk <<<See that Disk 1 is the SSD by its size

Select Disk 1 <<<Focus on the SSD

Select Partition 1 <<< EFI System partition of the SSD

Assign Letter=S <<<Give it letter S (if it doesn't already have a letter)

Exit <<<Exit DiskPart

DEL S:\EFI\Microsoft\Boot\BCD.old <<<In case BCD.old exists, delete it

REN S:\EFI\Microsoft\Boot\BCD BCD.old <<<Rename current BCD to BCD.old (not necessarily S:)

BCDBoot E:\Windows /s S: /f UEFI <<<Not necessarily letters E: or S:

DiskPart

Select Vol=S <<<Focus on EFI (not necessarily letter S:)

Remove Letter=S <<<Remove the letter S

Exit

(d) Close the Command Prompt with its "X" or type Exit.

(e) Click "Continue" to reboot to Windows

That should do it. Good luck. After booting, show me the BCD. You won't be able to copy/paste in the RE, so print this out first.

Was this answer helpful?

6 people found this answer helpful.
0 comments No comments

41 additional answers

Sort by: Most helpful
  1. Anonymous
    2022-04-04T15:26:00+00:00

    PCR Just PCR

    Do you want that the disk 'N' boot , for example ?

    in diskpart :

    select disk N

    select partition 1 <-- "System"

    assign letter Z

    exit

    bcdboot C:\Windows /s Z: /f UEFI

    (if N == 1 then C: change to E:)

    (1) He does want to boot the SSD which is Disk 1. And I'm adding a REN. If the current BCD isn't renamed first, I believe BCDBoot will just add to it. You do get the new boot item, but the old one will still be there to stink it up. So, it would be...

    DiskPart <<<Enter DiskPart

    List Disk <<<See that Disk 1 is the SSD by its size

    Select Disk 1 <<<Focus on the SSD

    Select Partition 1 <<< EFI System partition

    Assign Letter=S <<<Give it letter S

    Exit <<<Exit DiskPart

    REN S:\EFI\Microsoft\Boot\BCD BCD.old <<<Rename current BCD

    BCDBoot E:\Windows /s S: /f UEFI

    Was this answer helpful?

    0 comments No comments
  2. Anonymous
    2022-04-04T15:23:09+00:00

    Do you want that the disk 'N' boot , for example ?

    in diskpart :

    select disk N

    select partition 1 <-- "System"

    assign letter Z

    exit

    bcdboot C:\Windows /s Z: /f UEFI

    (if N == 1 then C: change to E:)

    The " solution " answer was this. @PCR got it

    Was this answer helpful?

    0 comments No comments
  3. Anonymous
    2022-04-04T12:48:25+00:00

    ok, thank you so much. you have helped me a lot. my pc has showed significant performance improvement because of your help. i'll be looking forward for your reply.

    Was this answer helpful?

    0 comments No comments
  4. Anonymous
    2022-04-04T11:18:43+00:00

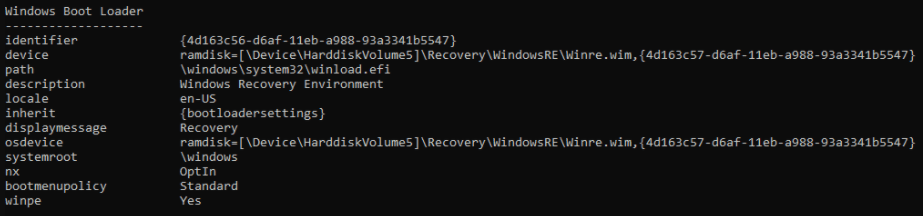

    OK, that's the stunted one, alright. Something (probably the ReagentC we ran) seems to have added a few essential lines to your Windows Boot Loader & Resume from Hibernate objects...

    recoverysequence {4d163c56-d6af-11eb-a988-93a3341b5547}
    recoveryenabled Yes

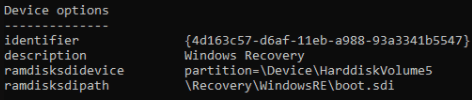

    That was apparently enough to get you the stunted environment. Now, we've got to get the rest of it into there, which are these...

    I know I can get the first into there (with the proper HarddiskVolume number), but I need to research the second. I'll get back to it tomorrow.

    Was this answer helpful?

    0 comments No comments
