Error 0x800f0922 for 2020-01 Cumulative Update for Windows 10 Version 1909 for x64-based Systems (KB4532695)

(1) You selected Disk 1 then listed its partitions...

DISKPART> list par

  Partition ###  Typ               Größe    Offset

  -------------  ----------------  -------  -------

  Partition 1    System             100 MB  1024 KB             <<<EFI

  Partition 2    Reserviert          16 MB   101 MB              <<<MSR

  Partition 3    Primär             203 GB   117 MB               <<<Windows

  Partition 5    Unbekannt           19 GB   203 GB             <<<Not a known partition type

* Partition 4    Wiederherstellun   521 MB   223 GB        <<<Recovery

(a) How does partition 4 come after 5? Were you doing partition work of some kind? You should do a reboot as soon as possible after partition work so that the full system knows of the changes. After a reboot, I'm hopeful 4 & 5 will be listed in the right order.

(b) Unbekannt means "unknown". Normally I'd want to say it was a factory reinstall partition. But those usually have the same partition type of a Recovery partition, i.e., Wiederherstellun. Have you altered its partition type?

(2) Your ReagentC shows...

WinRE-Status:      Enabled

WinRE-Ort:          \?\GLOBALROOT\device\harddisk0\partition4\Recovery\WindowsRE

Partition 4 is good, but it says "harddisk0". That's Disk 0. So I suspect you've got two complete installations of Windows plugged in at once, which is no good. Especially, you don't want two EFI partitions. Windows can be confused when it does a reboot as to which should be used.

(3) Your BCDEdit says EFI is on "HarddiskVolume1"...

Windows-Start-Manager

---

Bezeichner           {bootmgr}

device                  partition=\Device\HarddiskVolume1             <<<Partition 1

path                    \EFI\MICROSOFT\BOOT\BOOTMGFW.EFI

HarddiskVolume1 means Partition 1, but which Disk is it referring to? I used to say it would be Disk 0, because it counts partitions starting from Disk 0. But now I think, if you booted directly from BIOS to Disk 1, it might start counting from there. Then, it's saying the EFI on Disk 1 was used to achieve the boot. Do you know if BIOS is set to boot directly to Disk 1?

(4) Show us a "right-click START, Disk Management". Use the separator lines in the header to make the columns readable. Use the separator line between the panes to scrunch it smaller, but show all the Disks.

Hey. I have a problem like that. Diskpart shows me the Correct ID, and  BCDEdit + ReagentC doesn´t show wrong things. I also tried SetupDiag but it was shown nothing.

Diskpart Shows:

Microsoft DiskPart-Version 10.0.19041.610

---

Copyright (C) Microsoft Corporation.

Auf Computer: DESKTOP-Q3K0T9E

---

DISKPART> sel disk 1

---

Datenträger 1 ist jetzt der gewählte Datenträger.

---

DISKPART> sel vol 1

---

Volume 1 ist jetzt das gewählte Volume.

---

DISKPART> list par

---

  Partition ###  Typ               Größe    Offset

  -------------  ----------------  -------  -------

  Partition 1    System             100 MB  1024 KB

  Partition 2    Reserviert          16 MB   101 MB

  Partition 3    Primär             203 GB   117 MB

  Partition 5    Unbekannt           19 GB   203 GB

* Partition 4    Wiederherstellun   521 MB   223 GB

---

DISKPART> sel par 1

---

Partition 1 ist jetzt die gewählte Partition.

---

DISKPART> detail par

---

Partition 1

Typ         : c12a7328-f81f-11d2-ba4b-00a0c93ec93b

Versteckt   : Ja

Erforderlich: Nein

Attribut    : 0X8000000000000000

Offset in Byte: 1048576

---

  Volume ###  Bst  Bezeichnung  DS     Typ         Größe    Status     Info

  ----------  ---  -----------  -----  ----------  -------  ---------  --------

* Volume 2                      FAT32  Partition    100 MB  Fehlerfre  System

---

DISKPART>

BCDEdit Shows:

C:\WINDOWS\system32>BCDEdit

---

Windows-Start-Manager

---

Bezeichner              {bootmgr}

device                  partition=\Device\HarddiskVolume1

path                    \EFI\MICROSOFT\BOOT\BOOTMGFW.EFI

description             Windows Boot Manager

locale                  de-DE

inherit                 {globalsettings}

default                 {current}

resumeobject            {80bb344c-fc52-11ea-b786-dae81f622fe9}

displayorder            {current}

toolsdisplayorder       {memdiag}

timeout                 30

---

Windows-Startladeprogramm

---

Bezeichner              {current}

device                  partition=C:

path                    \WINDOWS\system32\winload.efi

description             Windows 10

locale                  de-DE

inherit                 {bootloadersettings}

recoverysequence        {ae3879e3-fb7f-11ea-bd25-7085c25d426a}

displaymessageoverride  Recovery

recoveryenabled         Yes

isolatedcontext         Yes

allowedinmemorysettings 0x15000075

osdevice                partition=C:

systemroot              \WINDOWS

resumeobject            {80bb344c-fc52-11ea-b786-dae81f622fe9}

nx                      OptIn

bootmenupolicy          Standard

---

C:\WINDOWS\system32>

And REAGENTC shows:

Konfigurationsinformationen zur Windows-Wiederherstellungsumgebung (WinRE) und

zur Systemwiederherstellung:

    WinRE-Status:                          Enabled

    WinRE-Ort:                             \?\GLOBALROOT\device\harddisk0\partition4\Recovery\WindowsRE

    Startkonfigurationsdaten-ID:           ae3879e3-fb7f-11ea-bd25-7085c25d426a

    Ort des Wiederherstellungsimages:

    Index des Wiederherstellungsimages:    0

    Ort des benutzerdefinierten Images:

    Index des benutzerdefinierten Images:  0

REAGENTC.EXE: Vorgang erfolgreich.

I am running out of options and dont know what to do now.

Your method unblocked me as well. I had recently used some third-party disk partition tool to move my EFI partition and I'm positive this caused the issue.

Some further instructions:

1. find your efi partition in disk manager [I find it's easiest to use this tool] or use diskpart or other tool
2. open cmd prompt elevated
3. Run diskpart

     >diskpart

3. You may need to dig a little to find the correct drive and partition...

     >list disk

     >select disk 0 [or other number]

     >list partition

4. select the EFI partition

     >select partition 3 [only an example. Yours may be different]

5. Now that you have the EFI partition selected you can see details of the partition:

     >detail partition

6. Look at the Type. Is the GUID there different than c12a7328-f81f-11d2-ba4b-00a0c93ec93b?
7. Set the partition ID

     >set id=c12a7328-f81f-11d2-ba4b-00a0c93ec93b

8. Exit diskpart
9. Restart machine, install updates.

I did that too and I still get the error message!

"- So should I change it to Volume1? Is there any risk or this is an easy to proceed thingy? I honestly dont know how its allocated Volume4, since i didnt change nothing once received my laptop (only once i did a factory reset)."

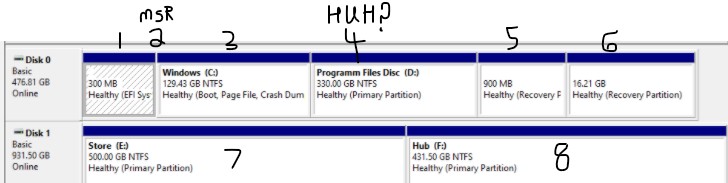

I just don't know what's up with that. Looking at your Disk Management,..

I'd expect HarddiskVolume1 would already be there in the BCD. That is because I think it counts the partitions beginning with those on Disk 0 & progressing to the others. I can't think of how it could be saying ...4. Even if BIOS were set to boot directly to Disk 0 (instead of to the Windows boot manager), I'd still expect it be ...1.

The only exception I think I know is, if there were an OS on Disk 1 & BIOS were set to boot directly to it. then maybe it would start counting with the partitions on Disk 1. But still I can't see how that would come up with a ...4 looking at the partitions you've got, Big puzzle to me how you're getting a ...4.

Another thing is, I think that value (HarddiskVolume) might be set by Windows during/after the boot. IOW, it may not matter what is in there to begin the boot. It is set afterward to say which system partition was used to accomplish the boot. But really there should be only one system partition, which normally is EFI. If this is true, changing it yourself has no real effect anyway, It may act as just a suggestion to tell Windows where to start looking, I don't really know.

Maybe, then, your BCD isn't being used at all & it just remains a ...4 from its last use (when presumably there actually was an EFI where it says). But how are you booting now then? Big puzzle. Did you look in BIOS Setup to see what's going on at the Boot page...?...

https://www.sysnative.com/forums/threads/get-access-to-bios-settings-boot-menu-f-keys-hotkeys-by-system-manufacturer-oem.23010/

Get access to BIOS settings & Boot Menu: F-keys/Hotkeys by System Manufacturer (OEM)

Note: That should say what PF key gets to your BIOS Setup, but I know nothing (bad or good) of any links or downloads that are there (or anywhere else).

(2) "- Im not able to view EFI folder, im not sure even if its existing, is it hidden or something ? Any steps to check this ?"

Let's see all of this at an Administrator Command Prompt...

DiskPart                    <<<Enter DiskPart

Select  Disk  1           <<<Focus on Disk 1

List  Part                    <<<Maybe there's a hidden partition on it (like MSR is hidden)

Select  Disk  0           <<<Focus on Disk 0

Select  Part  4            <<<Focus on partition 4

Detail  Part               <<<I think we won't see EFI's type because Disk Management doesn't say EFI for it

Select  Part  1           <<<Focus on partition 1 (EFI)

Assign  Letter=S       <<<Give EFI the letter S

Exit                            <<<Exit DiskPart

DIR   D:\EFI\MICROSOFT\BOOT\BOOTMGFW.EFI  /a       <<<I think the file won't be there

DIR   S:\EFI\MICROSOFT\BOOT\BOOTMGFW.EFI  /a       <<<I think it will be here

DIR   C:\EFI\MICROSOFT\BOOT\BOOTMGFW.EFI  /a       <<<Check C:\ too

DiskPart                         <<<Enter DiskPart

Select  Vol=S                 <<<Select the EFI partition by its letter

Remove  Letter=S         <<<Remove the letter

Exit                                <<<Exit DiskPart

Use Ctrl-A & Ctrl-C to copy, then show us. With "/a", the Command Prompt can see what File Explorer may not see. If it says there is no BOOTMGFW.EFI there, then Windows can't possibly be booting from D: partition.

(3) "- Yes, this is my factory reset partition. Windows come along with 1903 version. But in Oct 2020 i did a factory reset and my windows updated up to 1909 version. Below is history per updates."

The upgrade to 1909 messed up the ability to do another factory reset. That partition is being used now to hold Windows' recovery environment which really only needs the 900 MB of partition 5. We should switch to partition 5 for that. Then repurpose partition 6 to be a data partition or give its 16 GB to C: partition. After that, make your own system image(s) of 1909 onto external media.
