Atapi.sys BSOD

Anonymous
2018-11-23T17:02:42+00:00

I have been fighting this for a long time.  My PC keeps BSOD on me at random times both while in use and not in use.  The BSOD error states Driver IQRL Not Less or Equal and the offending file is atapi.sys.  I have updated every driver I can access.  I have run memtest86 and the RAM checks out ok.  I have run multiple scans on all my HDs and they check out ok.  This is driving me insane and I cannot figure out how to fix it.  It ran stable all day yesterday with no problems and today I will not even boot properly.  I am writing this in safe mode.  Any assistance would be more than appreciated.

System reliability give this bugcheck: 0x000000d1 (0x00000000dff41048, 0x0000000000000005, 0x0000000000000000, 0xfffff804b48d2344).

The minidump is below:

*******************************************************************************

*                                                                             *

*                        Bugcheck Analysis                                    *

*                                                                             *

*******************************************************************************

DRIVER_IRQL_NOT_LESS_OR_EQUAL (d1)

An attempt was made to access a pageable (or completely invalid) address at an

interrupt request level (IRQL) that is too high.  This is usually

caused by drivers using improper addresses.

If kernel debugger is available get stack backtrace.

Arguments:

Arg1: 00000000dff44048, memory referenced

Arg2: 0000000000000005, IRQL

Arg3: 0000000000000000, value 0 = read operation, 1 = write operation

Arg4: fffff80b2c1b2344, address which referenced memory

Debugging Details:

KEY_VALUES_STRING: 1

STACKHASH_ANALYSIS: 1

TIMELINE_ANALYSIS: 1

DUMP_CLASS: 1

DUMP_QUALIFIER: 400

BUILD_VERSION_STRING:  17134.1.amd64fre.rs4_release.180410-1804

DUMP_TYPE:  2

BUGCHECK_P1: dff44048

BUGCHECK_P2: 5

BUGCHECK_P3: 0

BUGCHECK_P4: fffff80b2c1b2344

READ_ADDRESS: fffff8037d2ef388: Unable to get MiVisibleState

Unable to get NonPagedPoolStart

Unable to get NonPagedPoolEnd

Unable to get PagedPoolStart

Unable to get PagedPoolEnd

 00000000dff44048

CURRENT_IRQL:  5

FAULTING_IP:

atapi!AtapiSendAtaCommand+304

fffff80b`2c1b2344 498b7348        mov     rsi,qword ptr [r11+48h]

CPU_COUNT: 4

CPU_MHZ: 906

CPU_VENDOR:  AuthenticAMD

CPU_FAMILY: 10

CPU_MODEL: 2

CPU_STEPPING: 2

CUSTOMER_CRASH_COUNT:  1

DEFAULT_BUCKET_ID:  WIN8_DRIVER_FAULT

BUGCHECK_STR:  AV

PROCESS_NAME:  svchost.exe

ANALYSIS_SESSION_HOST:  HATTON-DESKTOP

ANALYSIS_SESSION_TIME:  11-23-2018 10:48:47.0291

ANALYSIS_VERSION: 10.0.17763.132 amd64fre

TRAP_FRAME:  ffffa00bd52adca0 -- (.trap 0xffffa00bd52adca0)

NOTE: The trap frame does not contain all registers.

Some register values may be zeroed or incorrect.

rax=00000000dff44000 rbx=0000000000000000 rcx=0000000000008008

rdx=0000000000008008 rsi=0000000000000000 rdi=0000000000000000

rip=fffff80b2c1b2344 rsp=ffffa00bd52ade30 rbp=ffffa90c07a841a0

 r8=0000000000000001  r9=0000000000000000 r10=ffff8001f6b39000

r11=ffffa00bd52ade70 r12=0000000000000000 r13=0000000000000000

r14=0000000000000000 r15=0000000000000000

iopl=0         nv up ei pl zr na po nc

atapi!AtapiSendAtaCommand+0x304:

fffff80b2c1b2344 498b7348        mov     rsi,qword ptr [r11+48h] ds:ffffa00bd52adeb8=ffffa90c093cd780

Resetting default scope

LAST_CONTROL_TRANSFER:  from fffff8037d05c269 to fffff8037d04b690

STACK_TEXT:

ffffa00bd52adb58 fffff8037d05c269 : 000000000000000a 00000000dff44048 0000000000000005 0000000000000000 : nt!KeBugCheckEx

ffffa00bd52adb60 fffff8037d058ee5 : 0000000000000000 0000000000000000 ffffa90c0aaabaf0 fffff8037cf7df83 : nt!KiBugCheckDispatch+0x69

ffffa00bd52adca0 fffff80b2c1b2344 : ffffa90c093cdb68 ffffa90c093cdbb0 ffffa90c093cdbb0 ffffa90c07a856a8 : nt!KiPageFault+0x425

ffffa00bd52ade30 fffff80b2c1b1e05 : ffffa00bd52ae050 ffffa90c093cdb68 ffffa90c07a841a0 ffffa90c093cd780 : atapi!AtapiSendAtaCommand+0x304

ffffa00bd52adea0 fffff80b2c1b15d8 : ffffa90c093cdb68 fffff8037ced9097 0000000000000001 fffff8037ce3d7e6 : atapi!AtapiHandleAtaCommand+0x45

ffffa00bd52aded0 fffff80b2c1c650b : 000000000000003c 0000000200000000 000000000000f000 ffffa90c07ae0878 : atapi!AtapiHwStartIo+0x68

ffffa00bd52adf00 fffff80b2c1cd09d : ffffa90c08fc58f0 ffffa90c083d9b20 000000000000003c ffffa90c093cd901 : ataport!CallMiniPortHwStartIo+0x127

ffffa00bd52adfa0 fffff8037d04c792 : ffffa90c093cd780 fffff80b2c1c201a ffffa90c07a98518 ffffa90c08e36930 : ataport!IdeStartCrbSynchronized+0x6d

ffffa00bd52adfd0 fffff80b2c1ccfef : ffffa90c07a89e80 fffff80b2c1cd030 ffffa90c093cd780 0000000000060000 : nt!KeSynchronizeExecution+0x42

ffffa00bd52ae010 fffff80b2c17115f : ffffa90c093cd988 0000000000000000 0000000000010000 ffffa00bd52ae190 : ataport!IdeStartIoCallBack+0x26f

ffffa00bd52ae0d0 fffff8037ce3c62f : ffffa90c093cd988 000000000000f000 0000000000001000 0000000000000000 : PCIIDEX!BmReceiveScatterGatherList+0x1f

ffffa00bd52ae100 fffff8037ce3c1eb : ffffa90c08e3d8c0 ffffa90c08e36930 0000000000000000 ffffa90c00000000 : hal!HalpAllocateAdapterCallbackV2+0x16f

ffffa00bd52ae190 fffff8037ce3bb83 : 0000000000010000 0000000000000010 ffffa90c093cd820 ffffa90c08e3d8c0 : hal!HalAllocateAdapterChannelV2+0x137

ffffa00bd52ae1e0 fffff8037ce3376e : 0000000000000000 ffffa90c08e3d8c0 0000000000000000 0000000000010000 : hal!HalAllocateAdapterChannel+0x33

ffffa00bd52ae220 fffff80b2c1710e1 : ffffa90c093cd780 ffffa90c08e3d8c0 ffffa90c000001c0 0000000000000000 : hal!HalBuildScatterGatherListV2+0x1a77e

ffffa00bd52ae2b0 fffff80b2c1cccf3 : ffffa90c093cd780 ffffa90c07a99750 0000000000000000 ffffd2ee94a1a7b5 : PCIIDEX!BmSetup+0x71

ffffa00bd52ae320 fffff80b2c1cb98c : ffffa90c07a841a0 ffffa90c093cd780 ffffa90c093cd780 ffffa90c093cd780 : ataport!IdeDispatchChannelRequest+0x113

ffffa00bd52ae350 fffff80b2c1cb8c7 : 0000000000000001 ffffa90c0c8efd78 0000000000226d14 fffff8037cfb5723 : ataport!IdeStartChannelRequest+0x48

ffffa00bd52ae380 fffff80b2c1ccb6f : ffffa90c07a99725 ffffa90c0c240000 ffffa90c0c2f0102 ffffa90c00010000 : ataport!IdeStartDeviceRequest+0x353

ffffa00bd52ae470 fffff80b2c1c8526 : ffffa90c0c2f94d0 ffffa90c093cd780 ffffa90c0c2f94d0 ffffa90c08e81760 : ataport!IdePortPdoDispatch+0xc3

ffffa00bd52ae4a0 fffff8037cedcef9 : 0000000000000000 0000000000000000 ffffa90c093a1408 fffff8037ceaaf76 : ataport!IdePortDispatch+0x16

ffffa00bd52ae4d0 fffff80b2bdd12b7 : ffffa90c0c2f94d0 fffff80b2c483a37 ffffa90c093a1408 ffffbe0500000000 : nt!IofCallDriver+0x59

ffffa00bd52ae510 fffff80b2bdd10b9 : ffffa90c0848a010 0000000000000007 ffffa90c0c2f9630 fffff8037cf26624 : ACPI!ACPIIrpDispatchDeviceControl+0x97

ffffa00bd52ae550 fffff8037cedcef9 : 0000000000000007 ffffa90c0c8f55e0 0000000000010000 ffffa90c08e81760 : ACPI!ACPIDispatchIrp+0xa9

ffffa00bd52ae5d0 fffff80b2ced3818 : ffffa90c0a6efa90 0000000000000001 ffffa90c0c8f55e0 0000000000010000 : nt!IofCallDriver+0x59

ffffa00bd52ae610 fffff80b2ced2f6e : 0000000000000000 0000000000000000 0000000000010000 ffffa90c0a6ef5d0 : CLASSPNP!SubmitTransferPacket+0x1f8

ffffa00bd52ae650 fffff80b2ced2c3f : ffffa90c00000000 ffffa90c0c8f55e0 0000000000000000 0000000000020000 : CLASSPNP!ServiceTransferRequest+0x27e

ffffa00bd52ae700 fffff80b2ced2ad4 : 000000000c8cf9ca 000000000c8d07fd ffffa90c0a6ef5d0 0000000000000000 : CLASSPNP!ClassReadWrite+0x15f

ffffa00bd52ae750 fffff8037cedcef9 : 0000000000000000 ffffa90c0c84e3f8 0000000000000001 0000000000000000 : CLASSPNP!ClassGlobalDispatch+0x24

ffffa00bd52ae780 fffff80b2d035088 : ffff6e71b74493b4 fffff78000000008 0000000002d9ced8 fffff8037cf243ee : nt!IofCallDriver+0x59

ffffa00bd52ae7c0 ffff6e71b74493b4 : fffff78000000008 0000000002d9ced8 fffff8037cf243ee 00000000000010da : bdisk+0x5088

ffffa00bd52ae7c8 fffff78000000008 : 0000000002d9ced8 fffff8037cf243ee 00000000000010da fffff8037cedcef9 : 0xffff6e71`b74493b4

ffffa00bd52ae7d0 0000000002d9ced8 : fffff8037cf243ee 00000000000010da fffff8037cedcef9 0000000000226d14 : 0xfffff780`00000008

ffffa00bd52ae7d8 fffff8037cf243ee : 00000000000010da fffff8037cedcef9 0000000000226d14 ffffa00bd4fbe258 : 0x2d9ced8

ffffa00bd52ae7e0 fffff80b2c011eaf : 0000000000000000 ffffa90c08f749d0 ffffa90c0a6ef5d0 0000000000000001 : nt!KeQueryUnbiasedInterruptTimePrecise+0x6e

ffffa00bd52ae830 fffff8037cedcef9 : 0000000100000001 0000000002da134d 0000000000000000 ffffa90c08fa0ad0 : partmgr!PmGlobalDispatch+0xff

ffffa00bd52ae8b0 fffff80b2c012598 : 0000000000000000 ffffa90c0c8d81f0 ffffbe05f2a5a960 0000000000000000 : nt!IofCallDriver+0x59

ffffa00bd52ae8f0 fffff80b2c011e16 : 0000000000000000 ffffa90c08fb7cb0 ffffa90c08fb7b60 ffffa90c0a6ef5d0 : partmgr!PartitionIo+0x178

ffffa00bd52ae980 fffff8037cedcef9 : ffffa90c08fe09f0 fffff80b2c013dfb 0000000000000000 ffffa90c08fb2dc0 : partmgr!PmGlobalDispatch+0x66

ffffa00bd52aea00 fffff80b2c0e1107 : ffffa90c08fb2dc0 0000000000000001 0000000002da134b 0000000000000000 : nt!IofCallDriver+0x59

ffffa00bd52aea40 fffff8037cedcef9 : ffffa00bd52aeb59 fffff80b2ccd1048 ffffa90c0a6ef5d0 fffff80b2ce842b7 : volmgr!VmReadWrite+0xf7

ffffa00bd52aea80 fffff80b2ccc56e0 : 0000000000000000 ffffa00bd52aeb59 ffffa90c0a6ef5d0 0000000000000000 : nt!IofCallDriver+0x59

ffffa00bd52aeac0 fffff80b2ccc4e47 : ffffa00bd52aed10 ffffa00bd52aed30 ffffa90c00010000 0000000000000000 : fvevol!FveFilterRundownReadWrite+0x880

ffffa00bd52aebc0 fffff8037cedcef9 : ffffa00bd52aec00 ffffa00bd52aec70 000100000bc23050 0000000000000000 : fvevol!FveFilterRundownRead+0x27

ffffa00bd52aebf0 fffff80b2ce840a9 : 0000000000000000 ffffa90c08faad90 ffffa00bd45efcc8 0000000000000000 : nt!IofCallDriver+0x59

ffffa00bd52aec30 fffff80b2ce852f2 : 0000000000000002 ffffa00bd52aed70 ffffa90c0a6ef5d0 fffff80300000001 : iorate!IoRateIssueAndRecordIo+0x79

ffffa00bd52aec70 fffff80b2ce82468 : 0000000000000000 0000000000120012 ffffbe05f2a56db4 0000000000000000 : iorate!IoRateProcessIrp+0x186

ffffa00bd52aedc0 fffff8037cedcef9 : 0000000000000000 0000000000000000 ffffa90c093a1180 ffffa00bd4fbe2a0 : iorate!IoRateDispatchReadWrite+0x1458

ffffa00bd52aee00 fffff80b2cd7102d : ffffa90c07a68bc0 fffff80b2cd8b9b2 0000000000000000 0000007300000003 : nt!IofCallDriver+0x59

ffffa00bd52aee40 fffff8037cedcef9 : ffffa90c090a1190 fffff80b2cdc6eec ffffa00bd4fbe200 ffffa00bd4fbe200 : volume!VolumePassThrough+0x1d

ffffa00bd52aee70 fffff80b2cd831ec : ffffa00bd52af000 ffffa00bd52a9000 0000025000000000 00000034464d85d4 : nt!IofCallDriver+0x59

ffffa00bd52aeeb0 fffff80b2cd817e9 : ffffa00bd45efcc8 0000000000000000 ffffbe0500120012 ffffbe05f2a56db4 : volsnap!VolSnapReadFilter+0x19ec

ffffa00bd52aeee0 fffff8037cedcef9 : 0000000000000000 ffffa00bd52af000 ffffa00bd4fbe1d8 0000000000000000 : volsnap!VolSnapRead+0x19

ffffa00bd52aef10 fffff80b2c3af546 : ffffa90c0bc23018 ffffa90c0c84e010 ffffa00bd4fbe200 ffffa90c0c8c0001 : nt!IofCallDriver+0x59

ffffa00bd52aef50 fffff8037d04eb87 : ffffa00bd4fbe1d8 0000000000000000 0000000000000000 0000000000000000 : Ntfs!NtfsStorageDriverCallout+0x16

ffffa00bd52aef80 fffff8037d04eb4d : 0000000000006000 ffffa90c0b905700 0000000000000004 fffff8037cf0275a : nt!KxSwitchKernelStackCallout+0x27

ffffa00bd45efae0 fffff8037cf0275a : 0000000000000012 0000000000000012 0000000000000000 fffff80b2c3994d2 : nt!KiSwitchKernelStackContinue

ffffa00bd45efb00 fffff8037cf0259e : fffff80b2c3af530 0000000000006000 0000000000000000 ffffa90c090a1040 : nt!KiExpandKernelStackAndCalloutOnStackSegment+0x12a

ffffa00bd45efb80 0000000000000000 : 0000000000000000 0000000000000000 0000000000000000 0000000000000000 : nt!KiExpandKernelStackAndCalloutSwitchStack+0x9e

THREAD_SHA1_HASH_MOD_FUNC:  dc1a475e39a14088f12a79aa3f8b8c4abf881297

THREAD_SHA1_HASH_MOD_FUNC_OFFSET:  afcfad58aeceb7511d968ffa5cfbdcee072d208a

THREAD_SHA1_HASH_MOD:  e7e03b8cf381b23eaa6035417ceb69d065fe96da

FOLLOWUP_IP:

atapi!AtapiSendAtaCommand+304

fffff80b`2c1b2344 498b7348        mov     rsi,qword ptr [r11+48h]

FAULT_INSTR_CODE:  48738b49

SYMBOL_STACK_INDEX:  3

SYMBOL_NAME:  atapi!AtapiSendAtaCommand+304

FOLLOWUP_NAME:  MachineOwner

MODULE_NAME: atapi

IMAGE_NAME:  atapi.sys

DEBUG_FLR_IMAGE_TIMESTAMP:  0

IMAGE_VERSION:  10.0.17093.1000

STACK_COMMAND:  .thread ; .cxr ; kb

BUCKET_ID_FUNC_OFFSET:  304

FAILURE_BUCKET_ID:  AV_atapi!AtapiSendAtaCommand

BUCKET_ID:  AV_atapi!AtapiSendAtaCommand

PRIMARY_PROBLEM_CLASS:  AV_atapi!AtapiSendAtaCommand

TARGET_TIME:  2018-11-23T16:16:51.000Z

OSBUILD:  17134

OSSERVICEPACK:  407

SERVICEPACK_NUMBER: 0

OS_REVISION: 0

SUITE_MASK:  272

PRODUCT_TYPE:  1

OSPLATFORM_TYPE:  x64

OSNAME:  Windows 10

OSEDITION:  Windows 10 WinNt TerminalServer SingleUserTS

OS_LOCALE:

USER_LCID:  0

OSBUILD_TIMESTAMP:  2018-11-01 01:56:19

BUILDDATESTAMP_STR:  180410-1804

BUILDLAB_STR:  rs4_release

BUILDOSVER_STR:  10.0.17134.1.amd64fre.rs4_release.180410-1804

ANALYSIS_SESSION_ELAPSED_TIME:  21d0

ANALYSIS_SOURCE:  KM

FAILURE_ID_HASH_STRING:  km:av_atapi!atapisendatacommand

FAILURE_ID_HASH:  {4104d1be-1784-5b87-60e8-584dea53eeb0}

Followup:     MachineOwner

Windows for home | Windows 10 | Performance and system failures

Locked Question. This question was migrated from the Microsoft Support Community. You can vote on whether it's helpful, but you can't add comments or replies or follow the question.

0 comments

51 answers

Sort by: Most helpful
Most helpful Newest Oldest
  1. Anonymous
    2018-12-24T23:27:29+00:00

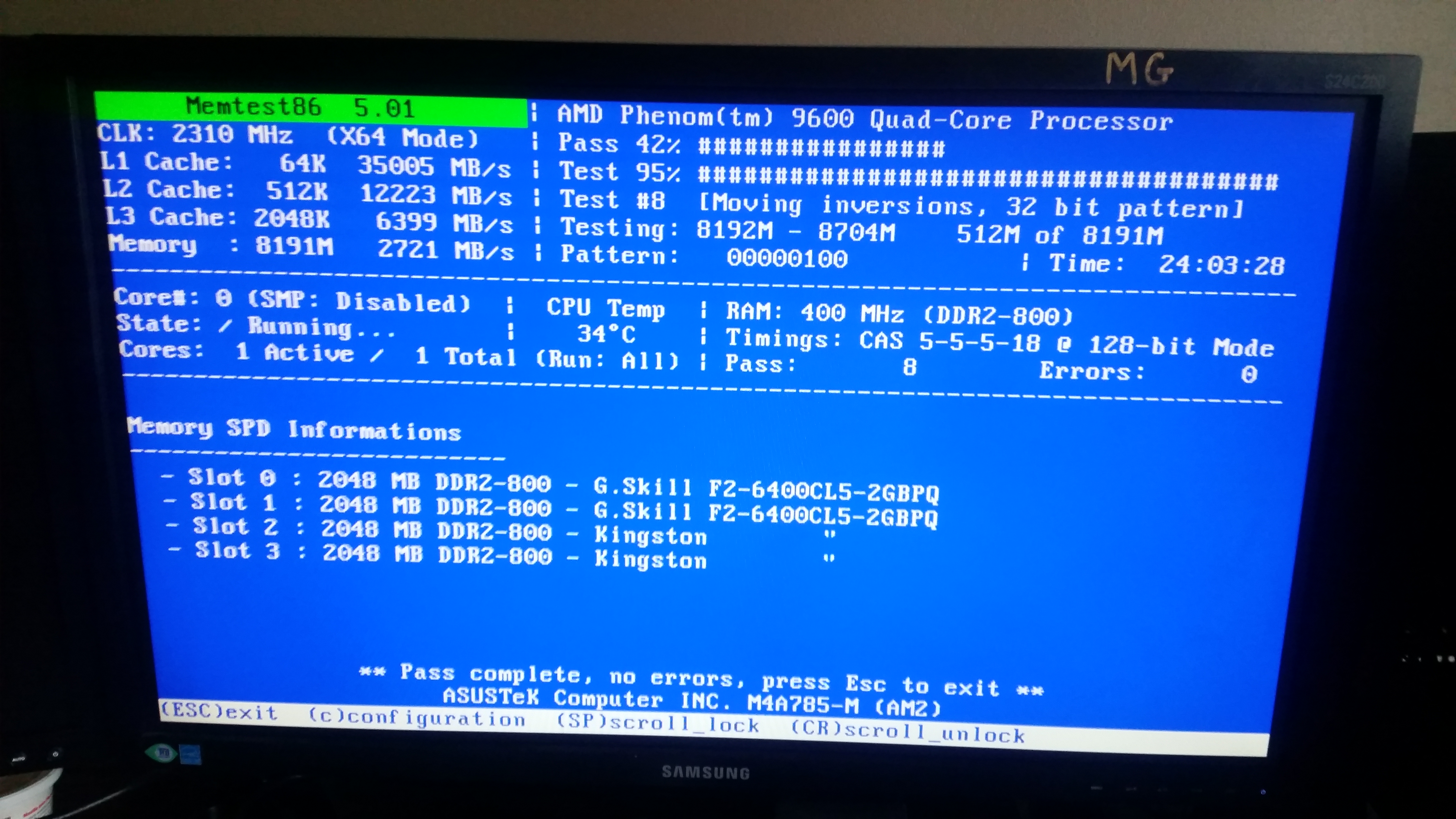

    Ran a 24 hour, 8 pass MemTest with no errors.

    Was this answer helpful?

    0 comments
  2. Anonymous
    2018-12-10T15:16:40+00:00

    For the DDR2 RAM please use Memtest86+ version 5.01.

    https://www.memtest.org/

    Testing is not done by time but by passes.

    The more the passes the better the testing conditions.

    Just one error is a fail and testing can be aborted.

    Then remove all RAM modules.

    Re-seat one module at a time in the same DIMM for 8 or more passes to differentiate good from malfunctioning RAM.

    Use a camera or smartphone camera to take pictures and post images in the thread using share links (one drive, drop box, or google drive)

    A substantial portion of the RAM testing can be performed overnight.

    Testing the RAM also provides some information on the DIMM and the motherboard.

    Was this answer helpful?

    0 comments
  3. Anonymous
    2018-12-10T14:38:06+00:00

    Any idea what could, all of a sudden, cause a video driver to start misbehaving?  The pc has been stable with this video card for years.  I have always used nVidia.

    I have 4 RAM modules, 4x2GB.  They are all DDR2, which version of memtest should be used for that?  I ran the latest version of memtest for 2 passes early in this process with no errors.  I will re-run for more passes.

    I don’t know if I will be able to swap out the video card.  I can probably remove it and use the onboard graphics.  I hope that is not it.  I can’t afford another gpu right now and the integrated gpu is garbage.

    Thanks for the help.

    Was this answer helpful?

    0 comments
  4. Anonymous
    2018-12-09T22:50:13+00:00
    1. The logs displayed that there were new dump files that failed to post from 12/9/2018.
    2. There were mini and memory dumps that were debugged from 12/5 had displayed a recurrent misbehaving hardware driver:

    Nvidia GPU dirvers:  nvlddmkm.sys

    1. The Asus driver support ended with Windows 8.1
    2. All drivers are on a trial and error basis.
    3. How many RAM modules are there and are they DDR3 or DDR4?
    4. Run Memtest86+ version 5.01 if the RAM is DDR3 for 8 or more passes:

    https://www.memtest.org/

    Run Memtest86 version 80 if the RAM is DDR4 for 8 or more passes:

    https://www.memtest86.com/

    Testing is not done by time but by passes.

    The more the passes the better the testing conditions.

    The computer has 8 GB RAM.

    Testing time is approximately 1 - 2 hours / GB RAM

    A substantial portion of the testing can be performed overnight.

    Just one error is a test fail and testing can be aborted.

    After completion of the RAM testing use a camera or smartphone camera to take a picture of the results and post an image into the thread using a share link (one drive, drop box, or google drive)

    1. See if you can find a friend, neighbor, relative, or local computer store to swap the Nvidia GPU card.

    Make two tests.

    Test a new card in the problematic computer.

    Test the card from the problematic computer in another computer.

    1. The Asus specs displayed:

    Integrated ATI Radeon HD4200

    Max. shared memory: 512 MB

    Supports DVI-D with HDCP compliant with max. resolution 2560x1600 (@ 60Hz dual-link)

    Supports HDMI™ Technology with max. resolution up to 1920 x 1200 (1080P)@60Hz

    Supports RGB with max. resolution 2048 x x1536 @85Hz

    Hybrid CrossFireX™ Support (For Windows Vista or Windows 7)

    Supports Microsoft® DirectX 10.1, OpenGL 2.0, Shader Model 4.1

    Hardware Decode Acceleration for H.264,VC-1, and MPEG-2

    Dual VGA output support:

    RGB & DVI

    RGB & HDMI

    *Refer to www.amd.com for the Hybrid CrossFireX selected GPUs.

    If you cannot easily find a swap see if it is possible to turn on the integrated graphics and remove the Nvidia GPU.

    This setting may be in the BIOS or the AMD control panel

    Then evaluate the computer for stability /instability without the GPU card.

    .

    .

    .

    .

    .

    .

    .

    Name    NVIDIA GeForce GTX 760

    PNP Device ID    PCI\VEN_10DE&DEV_1187&SUBSYS_37693842&REV_A1\4&35F9BA94&0&0010

    Adapter Type    GeForce GTX 760, NVIDIA compatible

    Adapter Description    NVIDIA GeForce GTX 760

    Adapter RAM    (2,147,483,648) bytes

    Installed Drivers    C:\WINDOWS\System32\DriverStore\FileRepository\nv_ref_pubwu.inf_amd64_8e4f37220e99138f\nvldumdx.dll,C:\WINDOWS\System32\DriverStore\FileRepository\nv_ref_pubwu.inf_amd64_8e4f37220e99138f\nvldumdx.dll,C:\WINDOWS\System32\DriverStore\FileRepository\nv_ref_pubwu.inf_amd64_8e4f37220e99138f\nvldumdx.dll,C:\WINDOWS\System32\DriverStore\FileRepository\nv_ref_pubwu.inf_amd64_8e4f37220e99138f\nvldumdx.dll

    Driver Version    24.21.13.9924

    Driver    c:\windows\system32\driverstore\filerepository\nv_ref_pubwu.inf_amd64_8e4f37220e99138f\nvlddmkm.sys (24.21.13.9924, 16.42 MB (17,213,824 bytes), 9/25/2018 2:19 AM)

    Was this answer helpful?

    0 comments
  5. Anonymous
    2018-12-09T20:44:49+00:00

    Have you had a chance to review the new dump files and offer any suggestions on how I could fix my pc?

    https://onedrive.live.com/?id=9D335B671FE5F801%21432&cid=9D335B671FE5F801

    Was this answer helpful?

    0 comments
