Enable Azure Disk Encryption with Microsoft Entra ID on Windows VMs (previous release)

Important

Azure Disk Encryption is scheduled for retirement on September 15, 2028. Until that date, you can continue to use Azure Disk Encryption without disruption. On September 15, 2028, ADE-enabled workloads will continue to run, but encrypted disks will fail to unlock after VM reboots, resulting in service disruption.

Use encryption at host for new VMs, or consider Confidential VM sizes with OS disk encryption for confidential computing workloads. All ADE-enabled VMs (including backups) must migrate to encryption at host before the retirement date to avoid service disruption. See Migrate from Azure Disk Encryption to encryption at host for details.

Applies to: ✔️ Windows VMs

The new release of Azure Disk Encryption eliminates the requirement for providing a Microsoft Entra application parameter to enable VM disk encryption. With the new release, you no longer need to provide Microsoft Entra credentials during the enable encryption step. Encrypt all new VMs by using the new release without Microsoft Entra application parameters. For instructions to enable VM disk encryption by using the new release, see Azure Disk Encryption for Windows VMs. VMs that were already encrypted with Microsoft Entra application parameters are still supported. Continue to maintain those VMs with the Microsoft Entra syntax. You can enable many disk-encryption scenarios, and the steps might vary according to the scenario. The following sections cover the scenarios in greater detail for Windows IaaS VMs. Before you can use disk encryption, the Azure Disk Encryption prerequisites need to be completed.

Important

Take a snapshot or create a backup before disks are encrypted. Backups ensure that a recovery option is possible if an unexpected failure occurs during encryption. VMs with managed disks require a backup before encryption occurs. Once a backup is made, you can use the Set-AzVMDiskEncryptionExtension cmdlet to encrypt managed disks by specifying the -skipVmBackup parameter. For more information about how to back up and restore encrypted VMs, see Back up and restore encrypted Azure VM.
Encrypting or disabling encryption might cause a VM to reboot.

Enable encryption on new IaaS VMs created from the Marketplace

You can enable disk encryption on new IaaS Windows VM from the Marketplace in Azure by using a Resource Manager template. The template creates a new encrypted Windows VM by using the Windows Server 2012 gallery image.

On the Resource Manager template, select Deploy to Azure.
Select the subscription, resource group, resource group location, parameters, legal terms, and agreement. Select Purchase to deploy a new IaaS VM where encryption is enabled.
After you deploy the template, verify the VM encryption status by using your preferred method:
- Verify with the Azure CLI by using the az vm encryption show command.
```
az vm encryption show --name "MySecureVM" --resource-group "MyVirtualMachineResourceGroup"
```
- Verify with Azure PowerShell by using the Get-AzVmDiskEncryptionStatus cmdlet.
```
Get-AzVmDiskEncryptionStatus -ResourceGroupName 'MyVirtualMachineResourceGroup' -VMName 'MySecureVM'
```

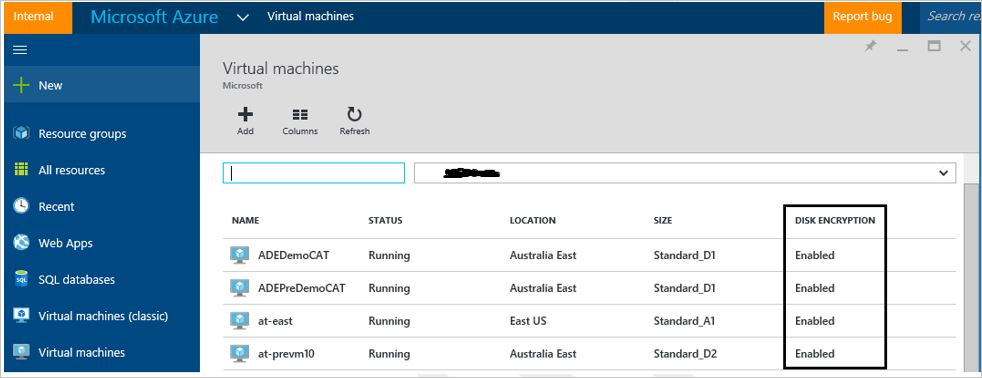

- Select the VM, then select Disks under the Settings heading to verify encryption status in the portal. In the chart under Encryption, you'll see if it's enabled.

The following table lists the Resource Manager template parameters for new VMs from the Marketplace scenario by using Microsoft Entra client ID:

Parameter	Description
adminUserName	Admin user name for the virtual machine.
adminPassword	Admin user password for the virtual machine.
newStorageAccountName	Name of the storage account to store OS and data VHDs.
vmSize	Size of the VM. Currently, only Standard A, D, and G series are supported.
virtualNetworkName	Name of the VNet that the VM NIC should belong to.
subnetName	Name of the subnet in the VNet that the VM NIC should belong to.
AADclient ID	Client ID of the Microsoft Entra application that has permissions to write secrets to your key vault.
AADClientSecret	Client secret of the Microsoft Entra application that has permissions to write secrets to your key vault.
keyVaultURL	URL of the key vault that the BitLocker key should be uploaded to. You can get it by using the cmdlet `(Get-AzKeyVault -VaultName "MyKeyVault" -ResourceGroupName "MyKeyVaultResourceGroupName").VaultURI` or the Azure CLI `az keyvault show --name "MySecureVault" --query properties.vaultUri`
keyEncryptionKeyURL	URL of the key encryption key that's used to encrypt the generated BitLocker key (optional). KeyEncryptionKeyURL is an optional parameter. You can bring your own KEK to further safeguard the data encryption key (Passphrase secret) in your key vault.
keyVaultResourceGroup	Resource group of the key vault.
vmName	Name of the VM that the encryption operation is to be performed on.

Enable encryption on existing or running IaaS Windows VMs

In this scenario, you can enable encryption by using a template, PowerShell cmdlets, or CLI commands. The following sections explain in greater detail how to enable Azure Disk Encryption.

Enable encryption on existing or running VMs by using Azure PowerShell

Use the Set-AzVMDiskEncryptionExtension cmdlet to enable encryption on a running IaaS virtual machine in Azure. For information about enabling encryption with Azure Disk Encryption by using PowerShell cmdlets, see the blog posts Explore Azure Disk Encryption with Azure PowerShell - Part 1 and Explore Azure Disk Encryption with Azure PowerShell - Part 2.

 $KVRGname = 'MyKeyVaultResourceGroup';
 $VMRGName = 'MyVirtualMachineResourceGroup';
 $vmName = 'MySecureVM';
 $aadclient ID = 'My-AAD-client-ID';
 $aadClientSecret = 'My-AAD-client-secret';
 $KeyVaultName = 'MySecureVault';
 $KeyVault = Get-AzKeyVault -VaultName $KeyVaultName -ResourceGroupName $KVRGname;
 $diskEncryptionKeyVaultUrl = $KeyVault.VaultUri;
 $KeyVaultResourceId = $KeyVault.ResourceId;

 Set-AzVMDiskEncryptionExtension -ResourceGroupName $VMRGName -VMName $vmName -Aadclient ID $aadclient ID -AadClientSecret $aadClientSecret -DiskEncryptionKeyVaultUrl $diskEncryptionKeyVaultUrl -DiskEncryptionKeyVaultId $KeyVaultResourceId;

$KVRGname = 'MyKeyVaultResourceGroup';
$VMRGName = 'MyVirtualMachineResourceGroup';
$vmName = 'MyExtraSecureVM';
$aadclient ID = 'My-AAD-client-ID';
$aadClientSecret = 'My-AAD-client-secret';
$KeyVaultName = 'MySecureVault';
$keyEncryptionKeyName = 'MyKeyEncryptionKey';
$KeyVault = Get-AzKeyVault -VaultName $KeyVaultName -ResourceGroupName $KVRGname;
$diskEncryptionKeyVaultUrl = $KeyVault.VaultUri;
$KeyVaultResourceId = $KeyVault.ResourceId;
$keyEncryptionKeyUrl = (Get-AzKeyVaultKey -VaultName $KeyVaultName -Name $keyEncryptionKeyName).Key.kid;

Set-AzVMDiskEncryptionExtension -ResourceGroupName $VMRGname -VMName $vmName -Aadclient ID $aadclient ID -AadClientSecret $aadClientSecret -DiskEncryptionKeyVaultUrl $diskEncryptionKeyVaultUrl -DiskEncryptionKeyVaultId $KeyVaultResourceId -KeyEncryptionKeyUrl $keyEncryptionKeyUrl -KeyEncryptionKeyVaultId $KeyVaultResourceId;

Note

The syntax for the value of disk-encryption-keyvault parameter is the full identifier string: /subscriptions/[subscription-id-guid]/resourceGroups/[resource-group-name]/providers/Microsoft.KeyVault/vaults/[keyvault-name]
The syntax for the value of the key-encryption-key parameter is the full URI to the KEK as in: https://[keyvault-name].vault.azure.net/keys/[kekname]/[kek-unique-id]

Verify the disks are encrypted: To check on the encryption status of an IaaS VM, use the Get-AzVmDiskEncryptionStatus cmdlet.
```
Get-AzVmDiskEncryptionStatus -ResourceGroupName 'MyVirtualMachineResourceGroup' -VMName 'MySecureVM'
```
Disable disk encryption: To disable the encryption, use the Disable-AzureRmVMDiskEncryption cmdlet.
```
Disable-AzVMDiskEncryption -ResourceGroupName 'MyVirtualMachineResourceGroup' -VMName 'MySecureVM'
```

Enable encryption on existing or running VMs by using Azure CLI

Use the az vm encryption enable command to enable encryption on a running IaaS virtual machine in Azure.

Encrypt a running VM by using a client secret:

az vm encryption enable --resource-group "MyVirtualMachineResourceGroup" --name "MySecureVM" --aad-client-id "<my spn created with CLI/my Microsoft Entra client ID>"  --aad-client-secret "My-AAD-client-secret" --disk-encryption-keyvault "MySecureVault" --volume-type [All|OS|Data]

Encrypt a running VM by using a KEK to wrap the client secret:
```
az vm encryption enable --resource-group "MyVirtualMachineResourceGroup" --name "MySecureVM" --aad-client-id "<my spn created with CLI which is the Microsoft Entra client ID>"  --aad-client-secret "My-AAD-client-secret" --disk-encryption-keyvault  "MySecureVault" --key-encryption-key "MyKEK_URI" --key-encryption-keyvault "MySecureVaultContainingTheKEK" --volume-type [All|OS|Data]
```
Note

The syntax for the value of disk-encryption-keyvault parameter is the full identifier string: /subscriptions/[subscription-id-guid]/resourceGroups/[resource-group-name]/providers/Microsoft.KeyVault/vaults/[keyvault-name]
The syntax for the value of the key-encryption-key parameter is the full URI to the KEK as in: https://[keyvault-name].vault.azure.net/keys/[kekname]/[kek-unique-id]
Verify the disks are encrypted: To check on the encryption status of an IaaS VM, use the az vm encryption show command.
```
az vm encryption show --name "MySecureVM" --resource-group "MyVirtualMachineResourceGroup"
```

Disable encryption: To disable encryption, use the az vm encryption disable command.

az vm encryption disable --name "MySecureVM" --resource-group "MyVirtualMachineResourceGroup" --volume-type [ALL, DATA, OS]

Using the Resource Manager template

You can enable disk encryption on existing or running IaaS Windows VMs in Azure by using the Resource Manager template to encrypt a running Windows VM.

On the Azure quickstart template, select Deploy to Azure.
Select the subscription, resource group, resource group location, parameters, legal terms, and agreement. Select Purchase to enable encryption on the existing or running IaaS VM.

The following table lists the Resource Manager template parameters for existing or running VMs that use a Microsoft Entra client ID:

Parameter	Description
AADclient ID	Client ID of the Microsoft Entra application that has permissions to write secrets to the key vault.
AADClientSecret	Client secret of the Microsoft Entra application that has permissions to write secrets to the key vault.
keyVaultName	Name of the key vault that the BitLocker key should be uploaded to. You can get it by using the cmdlet `(Get-AzKeyVault -ResourceGroupName <MyKeyVaultResourceGroupName>). Vaultname` or the Azure CLI command `az keyvault list --resource-group "MySecureGroup"`
keyEncryptionKeyURL	URL of the key encryption key that's used to encrypt the generated BitLocker key. This parameter is optional if you select nokek in the UseExistingKEK drop-down list. If you select kek in the UseExistingKEK drop-down list, you must enter the keyEncryptionKeyURL value.
volumeType	Type of volume that the encryption operation is performed on. Valid values are OS, Data, and All.
sequenceVersion	Sequence version of the BitLocker operation. Increment this version number every time a disk-encryption operation is performed on the same VM.
vmName	Name of the VM that the encryption operation is to be performed on.

New IaaS VMs created from customer-encrypted VHD and encryption keys

In this scenario, you can enable encrypting by using the Resource Manager template, PowerShell cmdlets, or CLI commands. The following sections explain in greater detail the Resource Manager template and CLI commands.

Use the instructions in the appendix to prepare pre-encrypted images that you can use in Azure. After the image is created, you can use the steps in the next section to create an encrypted Azure VM.

Prepare a pre-encrypted Windows VHD

Encrypt VMs with pre-encrypted VHDs by using Azure PowerShell

You can enable disk encryption on your encrypted VHD with the PowerShell cmdlet Set-AzVMOSDisk. The following example gives you some common parameters.

$VirtualMachine = New-AzVMConfig -VMName "MySecureVM" -VMSize "Standard_A1"
$VirtualMachine = Set-AzVMOSDisk -VM $VirtualMachine -Name "SecureOSDisk" -VhdUri "os.vhd" Caching ReadWrite -Windows -CreateOption "Attach" -DiskEncryptionKeyUrl "https://mytestvault.vault.azure.net/secrets/Test1/514ceb769c984379a7e0230bddaaaaaa" -DiskEncryptionKeyVaultId "/subscriptions/00000000-0000-0000-0000-000000000000/resourceGroups/myKVresourcegroup/providers/Microsoft.KeyVault/vaults/mytestvault"
New-AzVM -VM $VirtualMachine -ResourceGroupName "MyVirtualMachineResourceGroup"

Enable encryption on a newly added data disk

You can add a new disk to a Windows VM by using PowerShell, or through the Azure portal.

Enable encryption on a newly added disk by using Azure PowerShell

When you use PowerShell to encrypt a new disk for Windows VMs, specify a new sequence version. The sequence version must be unique. The following script generates a GUID for the sequence version. In some cases, a newly added data disk might be encrypted automatically by the Azure Disk Encryption extension. Automatic encryption usually occurs when the VM reboots after the new disk comes online. This behavior typically occurs because "All" was specified for the volume type when disk encryption previously ran on the VM. If automatic encryption occurs on a newly added data disk, we recommend running the Set-AzVmDiskEncryptionExtension cmdlet again with a new sequence version. If your new data disk is automatically encrypted and you don’t want it encrypted, decrypt all drives first and then reencrypt with a new sequence version specifying OS for the volume type.

Encrypt a running VM by using a client secret: The following script initializes your variables and runs the Set-AzVMDiskEncryptionExtension cmdlet. The resource group, VM, key vault, Microsoft Entra app, and client secret must already exist as prerequisites. Replace MyKeyVaultResourceGroup, MyVirtualMachineResourceGroup, MySecureVM, MySecureVault, My-AAD-client-ID, and My-AAD-client-secret with your values. The following example uses "All" for the -VolumeType parameter, which includes both OS and Data volumes. If you only want to encrypt the OS volume, use "OS" for the -VolumeType parameter.

 $sequenceVersion = [Guid]::NewGuid();
 $KVRGname = 'MyKeyVaultResourceGroup';
 $VMRGName = 'MyVirtualMachineResourceGroup';
 $vmName = 'MySecureVM';
 $aadclient ID = 'My-AAD-client-ID';
 $aadClientSecret = 'My-AAD-client-secret';
 $KeyVaultName = 'MySecureVault';
 $KeyVault = Get-AzKeyVault -VaultName $KeyVaultName -ResourceGroupName $KVRGname;
 $diskEncryptionKeyVaultUrl = $KeyVault.VaultUri;
 $KeyVaultResourceId = $KeyVault.ResourceId;

 Set-AzVMDiskEncryptionExtension -ResourceGroupName $VMRGname -VMName $vmName -Aadclient ID $aadclient ID -AadClientSecret $aadClientSecret -DiskEncryptionKeyVaultUrl $diskEncryptionKeyVaultUrl -DiskEncryptionKeyVaultId $KeyVaultResourceId -VolumeType 'all' –SequenceVersion $sequenceVersion;

Encrypt a running VM by using a KEK to wrap the client secret: Azure Disk Encryption lets you specify an existing key in your key vault to wrap disk encryption secrets that were generated while enabling encryption. When a key encryption key is specified, Azure Disk Encryption uses that key to wrap the encryption secrets before writing to Key Vault. The following example uses "All" for the -VolumeType parameter, which includes both OS and Data volumes. If you only want to encrypt the OS volume, use "OS" for the -VolumeType parameter.

$sequenceVersion = [Guid]::NewGuid();
$KVRGname = 'MyKeyVaultResourceGroup';
$VMRGName = 'MyVirtualMachineResourceGroup';
$vmName = 'MyExtraSecureVM';
$aadclient ID = 'My-AAD-client-ID';
$aadClientSecret = 'My-AAD-client-secret';
$KeyVaultName = 'MySecureVault';
$keyEncryptionKeyName = 'MyKeyEncryptionKey';
$KeyVault = Get-AzKeyVault -VaultName $KeyVaultName -ResourceGroupName $KVRGname;
$diskEncryptionKeyVaultUrl = $KeyVault.VaultUri;
$KeyVaultResourceId = $KeyVault.ResourceId;
$keyEncryptionKeyUrl = (Get-AzKeyVaultKey -VaultName $KeyVaultName -Name $keyEncryptionKeyName).Key.kid;

Set-AzVMDiskEncryptionExtension -ResourceGroupName $VMRGname -VMName $vmName -Aadclient ID $aadclient ID -AadClientSecret $aadClientSecret -DiskEncryptionKeyVaultUrl $diskEncryptionKeyVaultUrl -DiskEncryptionKeyVaultId $KeyVaultResourceId -KeyEncryptionKeyUrl $keyEncryptionKeyUrl -KeyEncryptionKeyVaultId $KeyVaultResourceId -VolumeType 'all' –SequenceVersion $sequenceVersion;

Note

Enable encryption on a newly added disk by using Azure CLI

The Azure CLI command automatically provides a new sequence version for you when you run the command to enable encryption. Acceptable values for the volume-type parameter are All, OS, and Data. You might need to change the volume-type parameter to OS or Data if you're only encrypting one type of disk for the VM. The examples use "All" for the volume-type parameter.

Encrypt a running VM by using a client secret:

az vm encryption enable --resource-group "MyVirtualMachineResourceGroup" --name "MySecureVM" --aad-client-id "<my spn created with CLI/my Microsoft Entra client ID>"  --aad-client-secret "My-AAD-client-secret" --disk-encryption-keyvault "MySecureVault" --volume-type "All"

Encrypt a running VM by using a KEK to wrap the client secret:

az vm encryption enable --resource-group "MyVirtualMachineResourceGroup" --name "MySecureVM" --aad-client-id "<my spn created with CLI which is the Microsoft Entra client ID>"  --aad-client-secret "My-AAD-client-secret" --disk-encryption-keyvault  "MySecureVault" --key-encryption-key "MyKEK_URI" --key-encryption-keyvault "MySecureVaultContainingTheKEK" --volume-type "all"

Enable encryption by using Microsoft Entra client certificate-based authentication.

You can use client certificate authentication with or without KEK. Before you use the PowerShell scripts, upload the certificate to the key vault and deployed to the VM. If you also use a KEK, the KEK must already exist. For more information, see the Certificate-based authentication for Microsoft Entra ID section of the prerequisites article.

Enable encryption by using certificate-based authentication by using Azure PowerShell

## Fill in 'MyVirtualMachineResourceGroup', 'MyKeyVaultResourceGroup', 'My-AAD-client-ID', 'MySecureVault, and 'MySecureVM'.

$VMRGName = 'MyVirtualMachineResourceGroup'
$KVRGname = 'MyKeyVaultResourceGroup';
$AADclient ID ='My-AAD-client-ID';
$KeyVaultName = 'MySecureVault';
$VMName = 'MySecureVM';
$KeyVault = Get-AzKeyVault -VaultName $KeyVaultName -ResourceGroupName $KVRGname;
$diskEncryptionKeyVaultUrl = $KeyVault.VaultUri;
$KeyVaultResourceId = $KeyVault.ResourceId;

# Fill in the certificate path and the password so the thumbprint can be set as a variable.

$certPath = '$CertPath = "C:\certificates\mycert.pfx';
$CertPassword ='Password'
$Cert = New-Object System.Security.Cryptography.X509Certificates.X509Certificate2($CertPath, $CertPassword)
$aadClientCertThumbprint = $cert.Thumbprint;

# Enable disk encryption by using the client certificate thumbprint

Set-AzVMDiskEncryptionExtension -ResourceGroupName $VMRGName -VMName $VMName -Aadclient ID $AADclient ID -AadClientCertThumbprint $AADClientCertThumbprint -DiskEncryptionKeyVaultUrl $DiskEncryptionKeyVaultUrl -DiskEncryptionKeyVaultId $KeyVaultResourceId

Enable encryption by using certificate-based authentication and a KEK with Azure PowerShell

# Fill in 'MyVirtualMachineResourceGroup', 'MyKeyVaultResourceGroup', 'My-AAD-client-ID', 'MySecureVault,, 'MySecureVM', and "KEKName.

$VMRGName = 'MyVirtualMachineResourceGroup';
$KVRGname = 'MyKeyVaultResourceGroup';
$AADclient ID ='My-AAD-client-ID';
$KeyVaultName = 'MySecureVault';
$VMName = 'MySecureVM';
$keyEncryptionKeyName ='KEKName';
$KeyVault = Get-AzKeyVault -VaultName $KeyVaultName -ResourceGroupName $KVRGname;
$diskEncryptionKeyVaultUrl = $KeyVault.VaultUri;
$KeyVaultResourceId = $KeyVault.ResourceId;
$keyEncryptionKeyUrl = (Get-AzKeyVaultKey -VaultName $KeyVaultName -Name $keyEncryptionKeyName).Key.kid;

## Fill in the certificate path and the password so the thumbprint can be read and set as a variable.

$certPath = '$CertPath = "C:\certificates\mycert.pfx';
$CertPassword ='Password'
$Cert = New-Object System.Security.Cryptography.X509Certificates.X509Certificate2($CertPath, $CertPassword)
$aadClientCertThumbprint = $cert.Thumbprint;

# Enable disk encryption by using the client certificate thumbprint and a KEK

Set-AzVMDiskEncryptionExtension -ResourceGroupName $VMRGName -VMName $VMName -Aadclient ID $AADclient ID -AadClientCertThumbprint $AADClientCertThumbprint -DiskEncryptionKeyVaultUrl $DiskEncryptionKeyVaultUrl -DiskEncryptionKeyVaultId $KeyVaultResourceId -KeyEncryptionKeyUrl $keyEncryptionKeyUrl -KeyEncryptionKeyVaultId $KeyVaultResourceId

Disable encryption

You can disable encryption by using Azure PowerShell, the Azure CLI, or by using a Resource Manager template.

Disable disk encryption by using Azure PowerShell: To disable the encryption, use the Disable-AzureRmVMDiskEncryption cmdlet.
```
Disable-AzVMDiskEncryption -ResourceGroupName 'MyVirtualMachineResourceGroup' -VMName 'MySecureVM'
```

Disable encryption by using the Azure CLI: To disable encryption, use the az vm encryption disable command.

az vm encryption disable --name "MySecureVM" --resource-group "MyVirtualMachineResourceGroup" --volume-type [ALL, DATA, OS]

Disable encryption with a Resource Manager template:
1. Select Deploy to Azure from the Disable disk encryption on running Windows VM template.
2. Select the subscription, resource group, location, VM, legal terms, and agreement.
3. Select Purchase to disable disk encryption on a running Windows VM.

Next steps

Azure Disk Encryption overview
