Wired 802.1x authentication failed

Handian Sudianto 7,421 Reputation points
2026-09-03T12:02:00.01+00:00

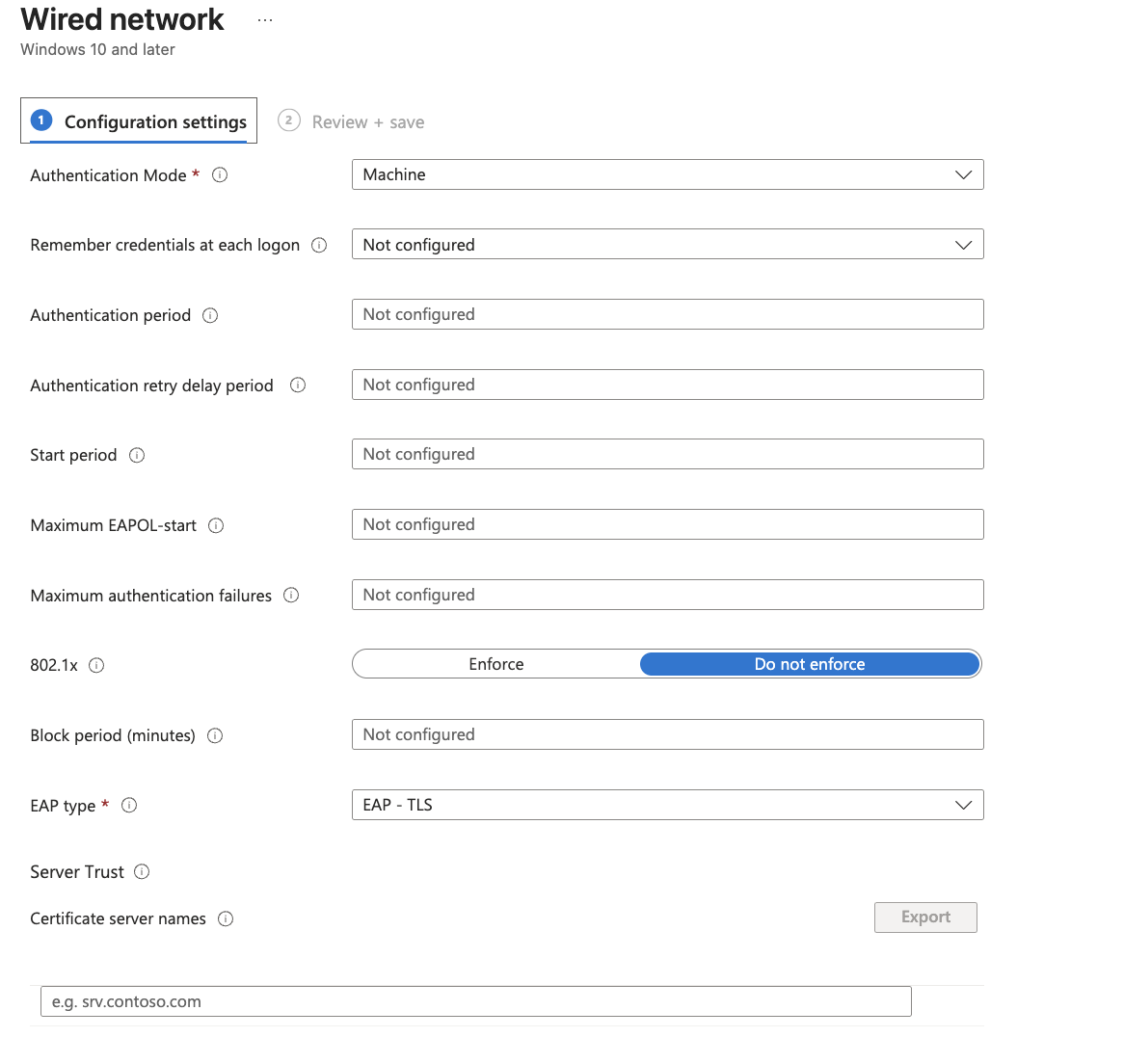

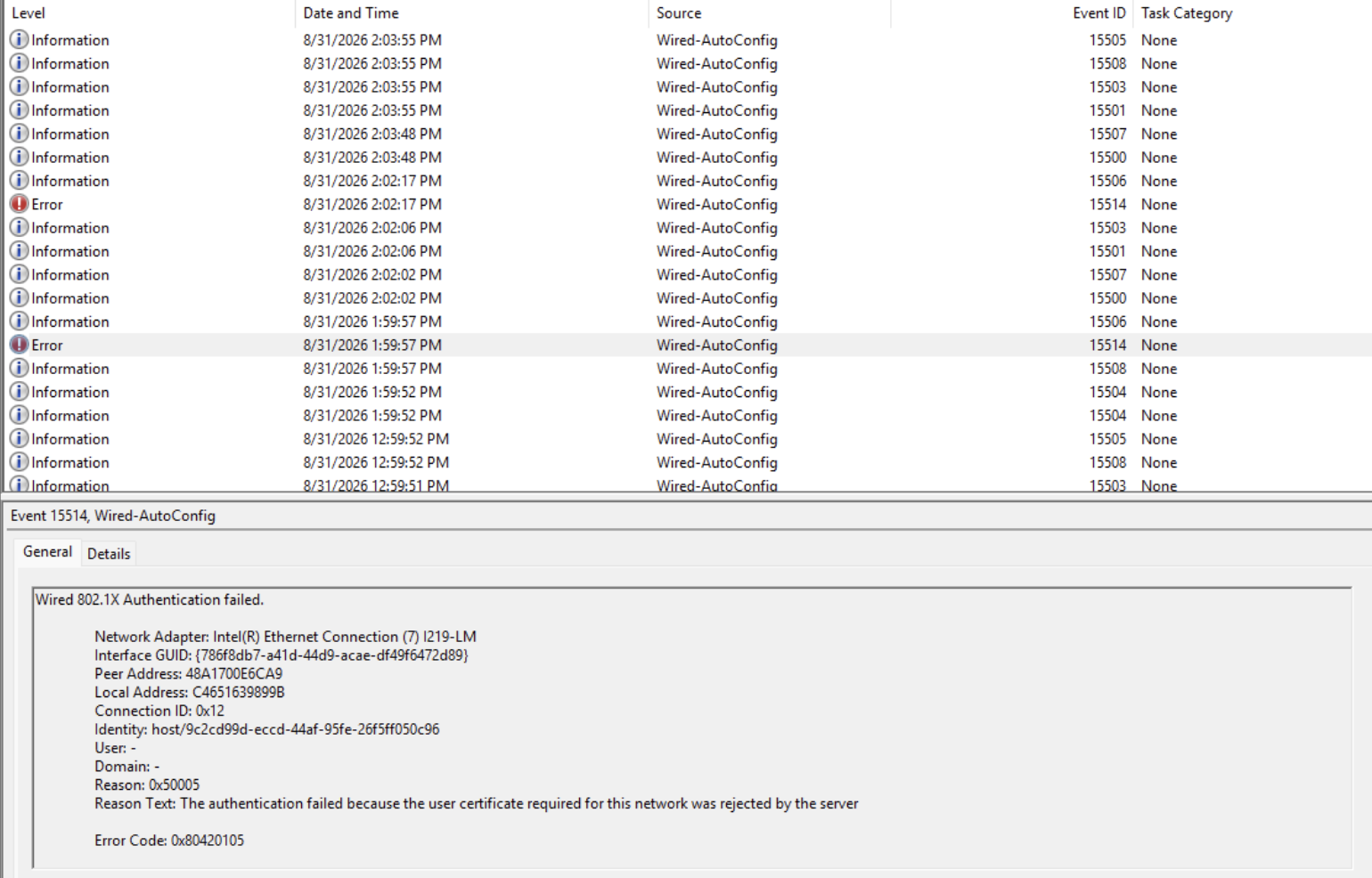

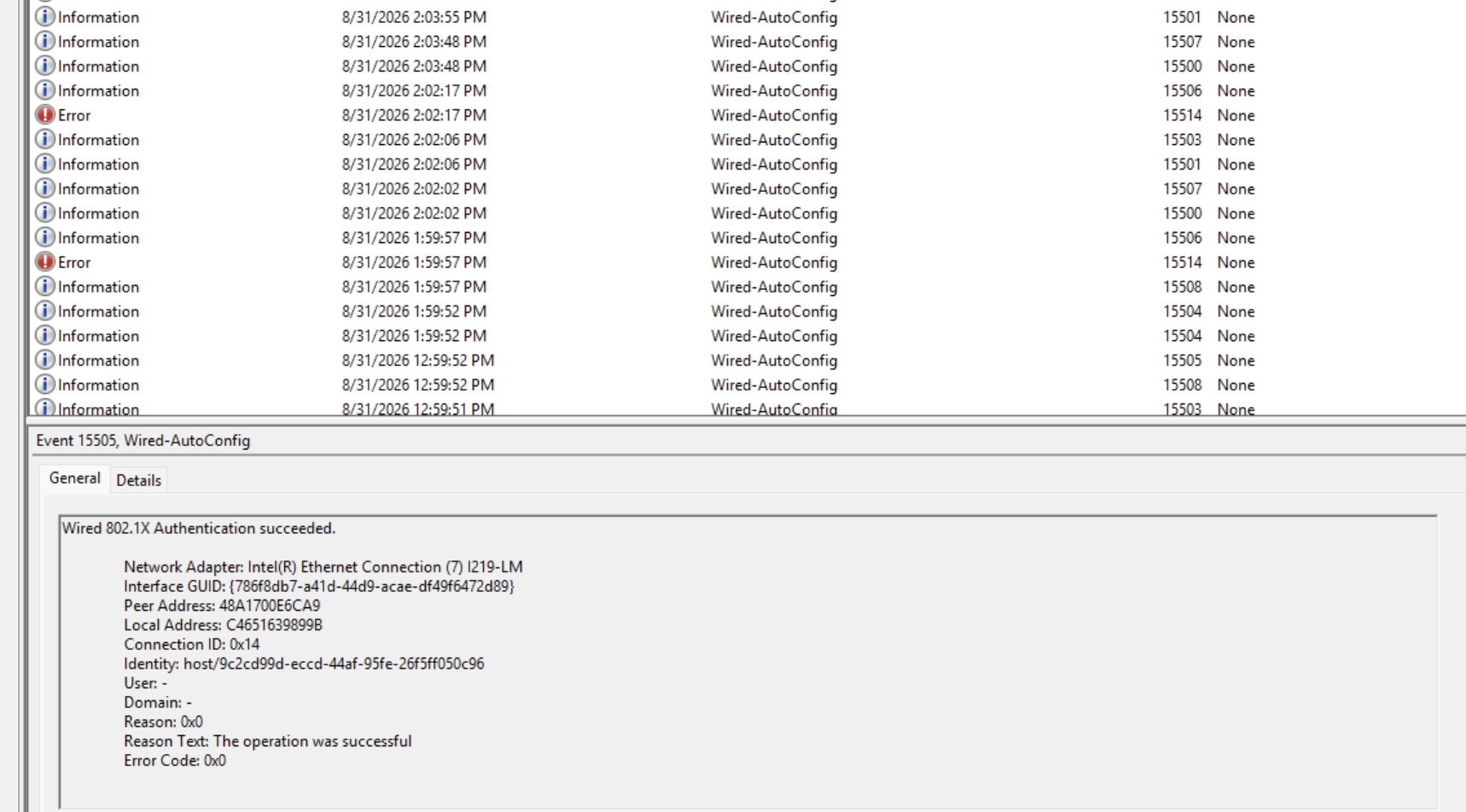

i use computer authentication using certificate for my 802.1x and all is working fine. But i got some complain from some user that suddenly they loss access. When i check in the event viewer, the windows try authenticate using user certificate but after some minutes then the authentication is succeded. My question is why suddenly the windows use user certificate for a short period?

User's image

User's image

User's image

Windows for business | Windows Client for IT Pros | Networking | Network connectivity and file sharing
0 comments

2 answers

Sort by: Most helpful
Most helpful Newest Oldest
  1. Harry Phan 30,075 Reputation points Independent Advisor
    2026-09-03T12:36:14.9+00:00

    Hello Handian,

    What you are seeing is a common behavior in Windows 802.1X when both machine and user authentication contexts are available. Even though you’ve explicitly set the adapter to use computer authentication, Windows will still attempt user-based authentication during certain transitions, particularly when the logon state changes or when the single sign-on (SSO) option is enabled in the 802.1X settings. This explains why Event Viewer shows a failed attempt with a user certificate, followed shortly by a successful machine certificate authentication.

    The root cause is that the supplicant (Wired AutoConfig) cycles through available authentication modes depending on system state. If “Enable single sign on” is configured to run before or after user logon, Windows will briefly try user authentication. If no valid user certificate is present or the RADIUS server rejects it, you’ll see the error you described. Once the system falls back to machine authentication, the connection succeeds. This is expected behavior unless you explicitly restrict the supplicant to machine-only authentication without SSO.

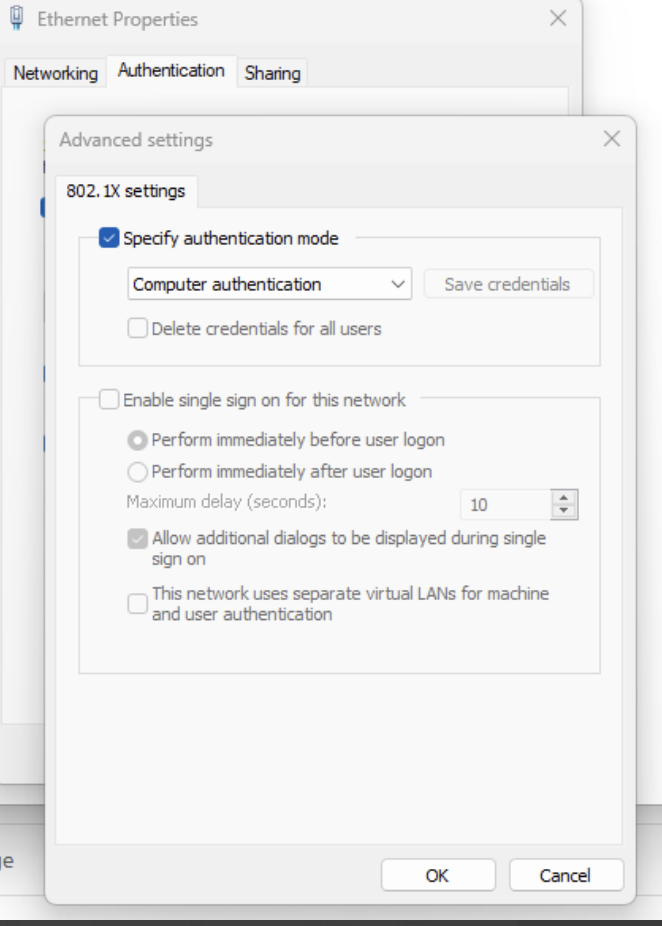

    To prevent these transient failures, you should verify that in the Ethernet Properties > Authentication tab > Advanced settings, the “Specify authentication mode” is set to “Computer authentication” and that “Enable single sign on” is disabled. If SSO is required in your environment, you’ll need to ensure that both machine and user certificates are properly issued and trusted by the NPS/RADIUS server, otherwise you’ll continue to see these short-lived failures. Also confirm that your Group Policy under Computer Configuration > Windows Settings > Security Settings > Wired Network (IEEE 802.3) Policies enforces machine authentication only, as this overrides local adapter settings.

    In short, the brief switch to user certificate is not a bug but a design behavior of the Windows supplicant when SSO or dual-mode authentication is enabled. Locking the policy to machine-only authentication will eliminate the user certificate attempts and the associated error events.

    I hope you've found something useful here. If it helps you get more insight into the issue, it's appreciated to accept the answer. Should you have more questions, feel free to leave a message. Have a nice day!HP.

    Was this answer helpful?

  2. AI answer

    2026-09-03T12:02:23.5066667+00:00

    The event details shown do not indicate that Windows successfully switched to user-certificate authentication. The successful event still shows Identity: host/..., which is the computer account identity, not a user identity.

    What the context supports is:

    1. Wired 802.1X issues should be verified in the Wired-AutoConfig operational log
      Check Event Viewer (Local)\Applications and Services Logs\Microsoft\Windows\Wired-AutoConfig/Operational. That is the correct log for wired 802.1X authentication behavior.
    2. Certificate problems are a common cause of temporary 802.1X failures
      Microsoft states that most 802.1X authentication issues are caused by certificate problems, such as:
      • invalid certificate
      • expired certificate
      • chain verification failure
      • revocation check failure
    3. The first thing to verify is the EAP method and the certificate being used
      If the profile is intended to use certificate-based authentication, confirm the configured EAP method and then validate the certificate involved in the authentication flow.
    4. Use CAPI2 logging for certificate troubleshooting
      Since the failure text mentions certificate rejection, enable the CAPI2 operational log and reproduce the issue:
      • Open Event Viewer
      • Go to Applications and Services Logs\Microsoft\Windows\CAPI2
      • Right-click Operational
      • Select Enable Log
    5. If NPS is used, confirm which server certificate is configured and make sure NPS auditing is enabled
      In NPS snap-in:
      • Go to Policies > Network Policies
      • Right-click the relevant policy > Properties
      • Open the Constraints tab
      • Check Authentication Methods
      On the NPS server, verify auditing with:
         auditpol /get /subcategory:"Network Policy Server"
      If needed, enable success and failure auditing:
         auditpol /set /subcategory:"Network Policy Server" /success:enable /failure:enable

    Based on the provided material, the supported conclusion is that this short interruption is most likely a certificate-validation or 802.1X method issue that should be investigated in the Wired-AutoConfig and CAPI2 logs, and on the NPS policy/certificate configuration. The provided material does not establish a documented Windows behavior that intentionally switches from computer certificate to user certificate for a short period in this scenario.

    References:

    AI-generated content may be incorrect. Read our transparency notes for more information.

    Was this answer helpful?
