getting error while creating crm dynamics 365 dataset in ADF

Question

getting error while creating crm dynamics 365 dataset in ADF

Khurshid, Danish 0

I am encountering the following error while trying to create a dataset using the Dynamics 365 connector in Azure Data Factory (ADF) although Linked service connection successful:

"The HTTP request was forbidden with client authentication scheme 'Anonymous'. The remote server returned an error: (403) Forbidden."

To validate the connection, I tested the same Dynamics 365 URL and credentials using Postman, and I was able to successfully retrieve the entity response from the endpoint below:

https://fort-dev.crm.dynamics.com/api/data/v9.2/EntityDefinitions?$top=1

I have also tried all three available connectors in ADF:

Dynamics 365

Dynamics CRM

Microsoft Dataverse

However, all of them return the same 403 Forbidden error when I attempt to create a dataset using their respective linked services.
I confirm below points as well.

API permissions are given for this App User for Dynamics365
User is a systemadmin

Could you please help identify if there are any additional permissions, authentication settings, or ADF-specific configurations that might be causing this issue?

Khurshid, Danish 0 Reputation points

2026-06-24T13:48:57.8066667+00:00

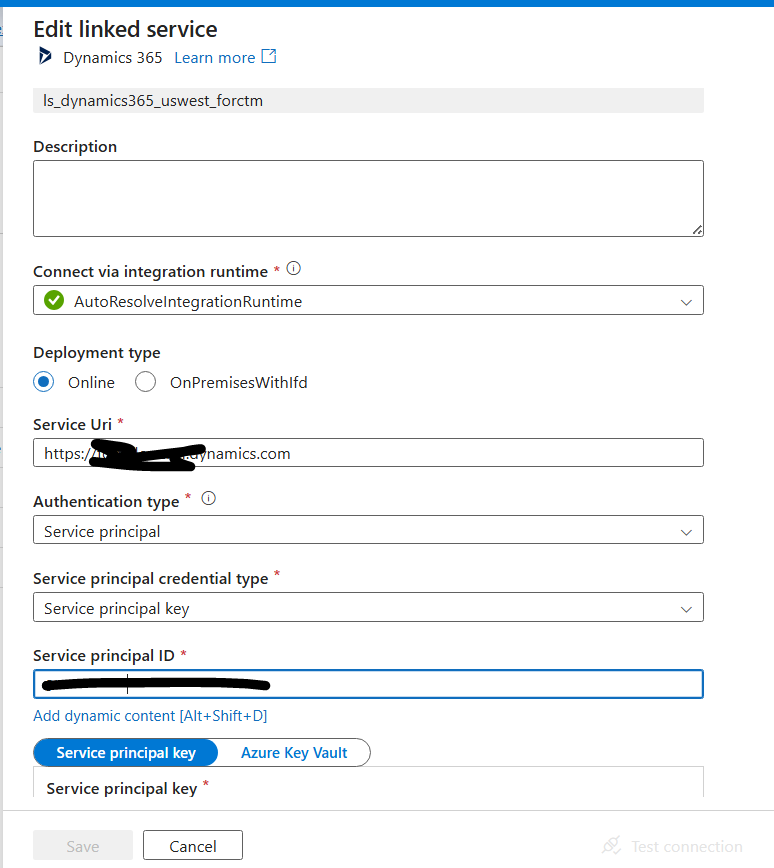

Please find attached the screenshot of linked service configuration.
Few more things that I forgot to mentioned:

we are using Service principle authentication.

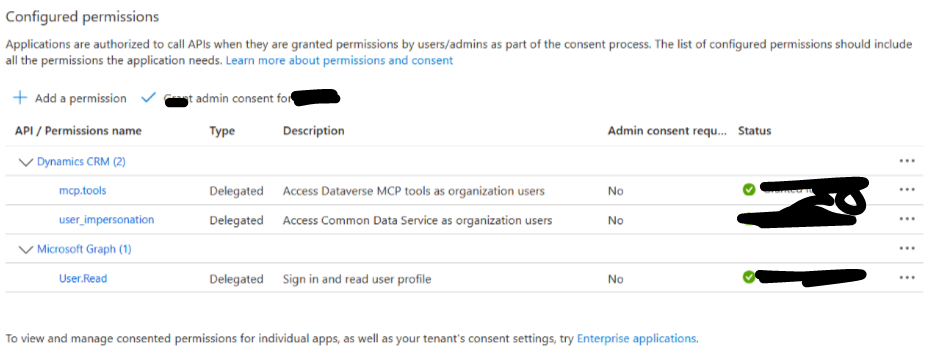

attach are the permissions as well.

same service principle is working fine when I try to connect using KingswaySoft. All entities are loading through Kingsway.

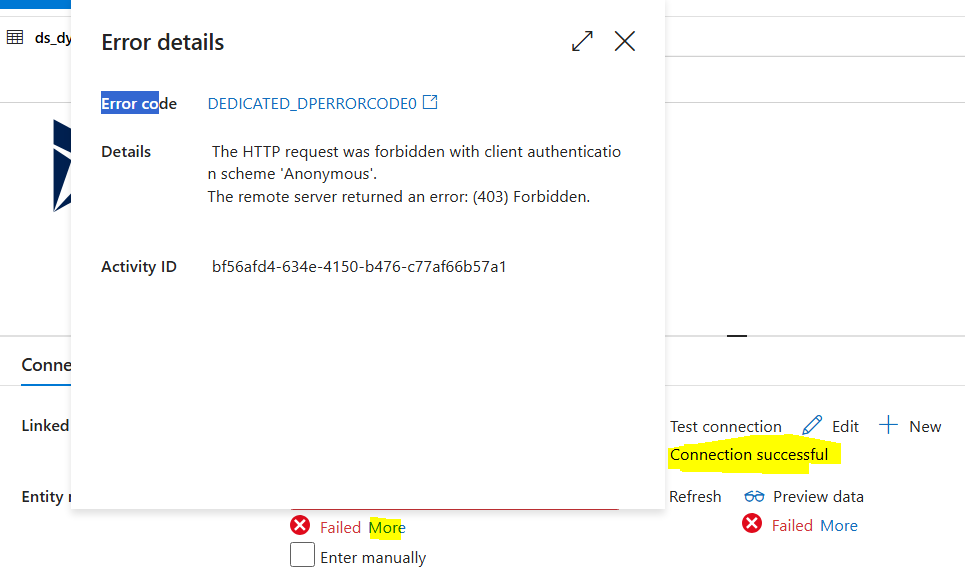

Attached is the screenshot of the error. Connection is successful with Linked service but none of the entities are loading.
Manoj Kumar Boyini 18,110 Reputation points Microsoft External Staff Moderator

2026-06-25T07:40:44.92+00:00

Hi @Khurshid, Danish

The failure is occurring when ADF tries to retrieve Dataverse metadata while loading entities for dataset creation. Could you please verify that the Service URI is configured as the root Dynamics 365 URL and not an API endpoint path?

Also, please try loading a common entity such as Accounts or Contacts and confirm whether the issue occurs for all entities or only specific ones.

The "Anonymous" message in the error can be misleading and does not necessarily mean anonymous authentication is being used. It can also indicate that the metadata request was not accepted under the expected application identity.

Please let us know the results.
Manoj Kumar Boyini 18,110 Reputation points Microsoft External Staff Moderator

2026-06-26T10:45:49.76+00:00

Hi @Khurshid, Danish

We haven’t received a response. Please let us know if you need any additional information or assistance from my side.

2 answers

Your answer

Khurshid, Danish 0 Reputation points

2026-06-24T13:48:57.8066667+00:00

Please find attached the screenshot of linked service configuration.
Few more things that I forgot to mentioned:

we are using Service principle authentication.

attach are the permissions as well.

same service principle is working fine when I try to connect using KingswaySoft. All entities are loading through Kingsway.

Attached is the screenshot of the error. Connection is successful with Linked service but none of the entities are loading.
Manoj Kumar Boyini 18,110 Reputation points Microsoft External Staff Moderator

2026-06-25T07:40:44.92+00:00

Hi @Khurshid, Danish

The failure is occurring when ADF tries to retrieve Dataverse metadata while loading entities for dataset creation. Could you please verify that the Service URI is configured as the root Dynamics 365 URL and not an API endpoint path?

Also, please try loading a common entity such as Accounts or Contacts and confirm whether the issue occurs for all entities or only specific ones.

The "Anonymous" message in the error can be misleading and does not necessarily mean anonymous authentication is being used. It can also indicate that the metadata request was not accepted under the expected application identity.

Please let us know the results.
Manoj Kumar Boyini 18,110 Reputation points Microsoft External Staff Moderator

2026-06-26T10:45:49.76+00:00

Hi @Khurshid, Danish

We haven’t received a response. Please let us know if you need any additional information or assistance from my side.

Answer 1

Khurshid, Danish hi, thx for sharing urs issue here at Q&A portal,

linked service test passing only proves ADF can get a token/connect. Creating the dataset makes another Dataverse metadata call, and that call is getting treated as anonymous or isn’t getting the token in the way the connector expects.

Since Postman works, compare the auth flow, not just the URL. In Postman, check the actual Authorization header and token audience. For Dataverse it should be for https://fort-dev.crm.dynamics.com/.default not Microsoft Graph, not Azure Management.

In ADF, use the newer Microsoft Dataverse connector if possible. Make sure the linked service uses the org URL only https://fort-dev.crm.dynamics.com Don’t put /api/data/v9.2 in the linked service URL.

The app registration needs to exist as an Application User inside that Dataverse environment, with the right security role. System Administrator is enough for testing, but make sure it’s assigned to the application user object, not only to ur normal user account. This is the bit that gets missed a lot.

EntityDefinitions is metadata. Some ADF connector dataset UIs don’t handle metadata endpoints the same way as normal tables/entities. Try creating the dataset against a normal table like accounts first. If that works but EntityDefinitions fails, it’s connector UI metadata behavior, not permissions.

If every normal entity fails too, recreate the Application User in Dataverse, reassign the role, wait a few mins for propagation, then create a fresh linked service. The Anonymous wording is misleading here it usually means the downstream Dataverse request didn’t get accepted as the app identity, not that u literally selected anonymous auth.

rgds,

Alex

&

If my answer was helpful pls mark it and additional thx if u follow me at Q&A portal

Answer 2

Hi @Khurshid, Danish

Since the Linked Service connection test succeeds and the same endpoint works successfully in Postman, the issue appears to be related to how Azure Data Factory is authenticating or authorizing access when retrieving entity metadata during dataset creation.

Could you please help verify the following:

Which authentication type is configured in the Linked Service (AAD Service Principal, Managed Identity, or Office 365)?
If using a Service Principal, please confirm that an Application User has been created in the Dataverse/Dynamics environment and that it has the required security roles assigned.
Verify that the configured serviceUri exactly matches the Dynamics 365 URL used in Postman and the browser (for example: https://fort-dev.crm.dynamics.com).
If Office 365 authentication is being used, please confirm whether Conditional Access or MFA policies are enabled in the tenant, as these scenarios require Microsoft Entra Service Principal authentication.

Additionally, please let us know:

Which specific entity/table you are trying to select when creating the dataset.
Whether the issue occurs for all entities or only specific entities.
A screenshot of the Linked Service authentication configuration (excluding any sensitive information).

This information will help determine whether the 403 response is related to Dataverse application-user permissions, entity-level security, or the authentication method being used by ADF.

References:
https://learn.microsoft.com/en-us/azure/data-factory/connector-dynamics-crm-office-365?tabs=data-factory
https://learn.microsoft.com/en-us/power-platform/admin/manage-application-users
https://learn.microsoft.com/en-us/power-automate/dataverse/manage-dataverse-connections

Please let us know if you have any questions.
