HLK May Refresh Release for Windows 11, Version 25H2: Static Tools Logo Test FAIL

Kokei Chang 40 Reputation points
2026-05-22T04:08:01.8333333+00:00

My Development:

OS: Windows 11 25H2

VS2022+WDK 10.1.0.6584

HLK: 10.1.26100.8328



I download HLK May Refresh Release for Windows 11, Version 25H2.

Then create device driver test, will test failed with Static Tools Logo Test.

影像

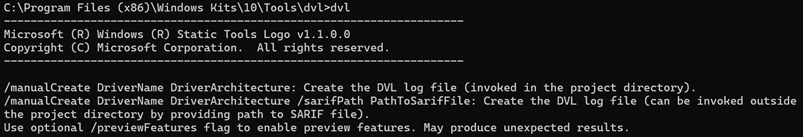

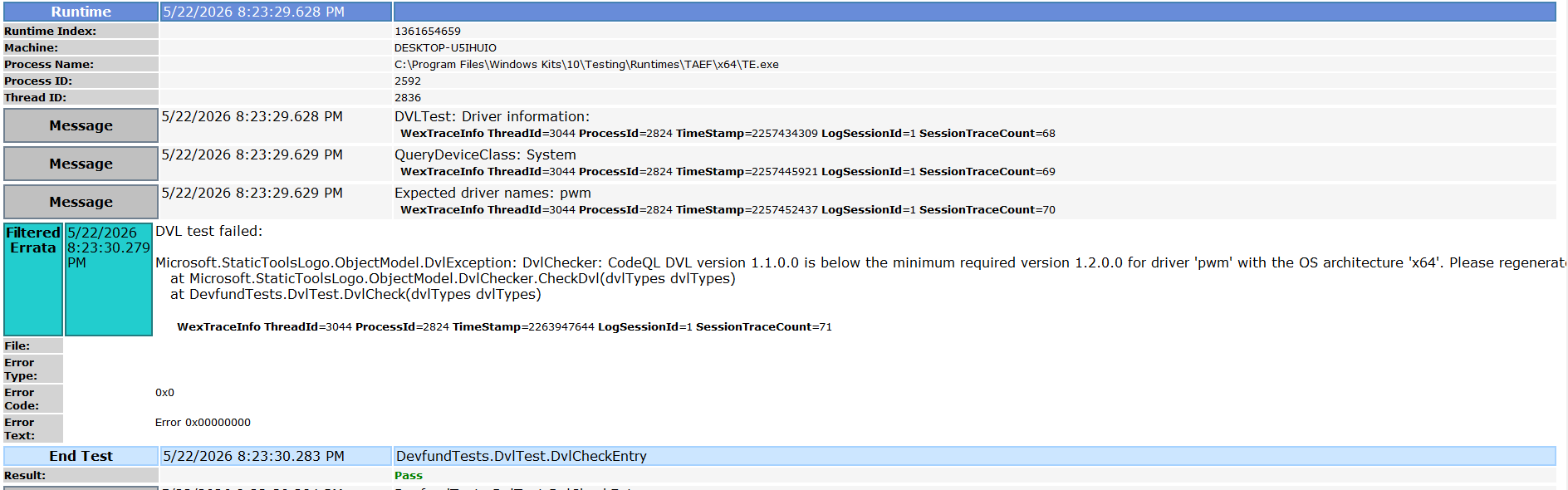

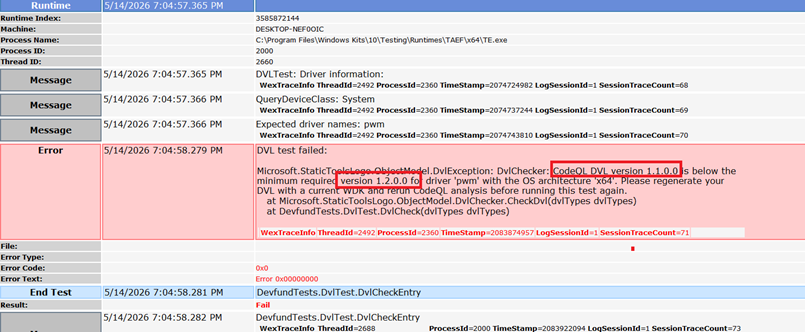

Error: CodeDL DVL version minimum required 1.2.0.0, but latest WDK 10.1.0.6584 still include dvl version is 1.1.0.0

影像

Please help to check this issue.



Windows development | Windows Driver Kit (WDK)
Answer accepted by question author
Tom Tran (WICLOUD CORPORATION) 5,950 Reputation points Microsoft External Staff Moderator
2026-06-03T09:12:55.7633333+00:00

Hi @Kokei Chang , Thanks for the update and for sharing the screenshot.

I have also been informed that this is a known issue with the current HLK/WDK combination. The issue is being worked on, and a fix is expected in a future HLK refresh.

Thank you again for adding the details here. This should help other users who run into the same Static Tools Logo Test / DVL version failure.

Was this answer helpful?

1 person found this answer helpful.

3 additional answers

Sort by: Most helpful
Most helpful Newest Oldest
  1. Kokei Chang 40 Reputation points
    2026-06-11T10:26:00.78+00:00

    Was this answer helpful?

    2 people found this answer helpful.
    0 comments
  2. Kokei Chang 40 Reputation points
    2026-05-26T03:53:53.1866667+00:00

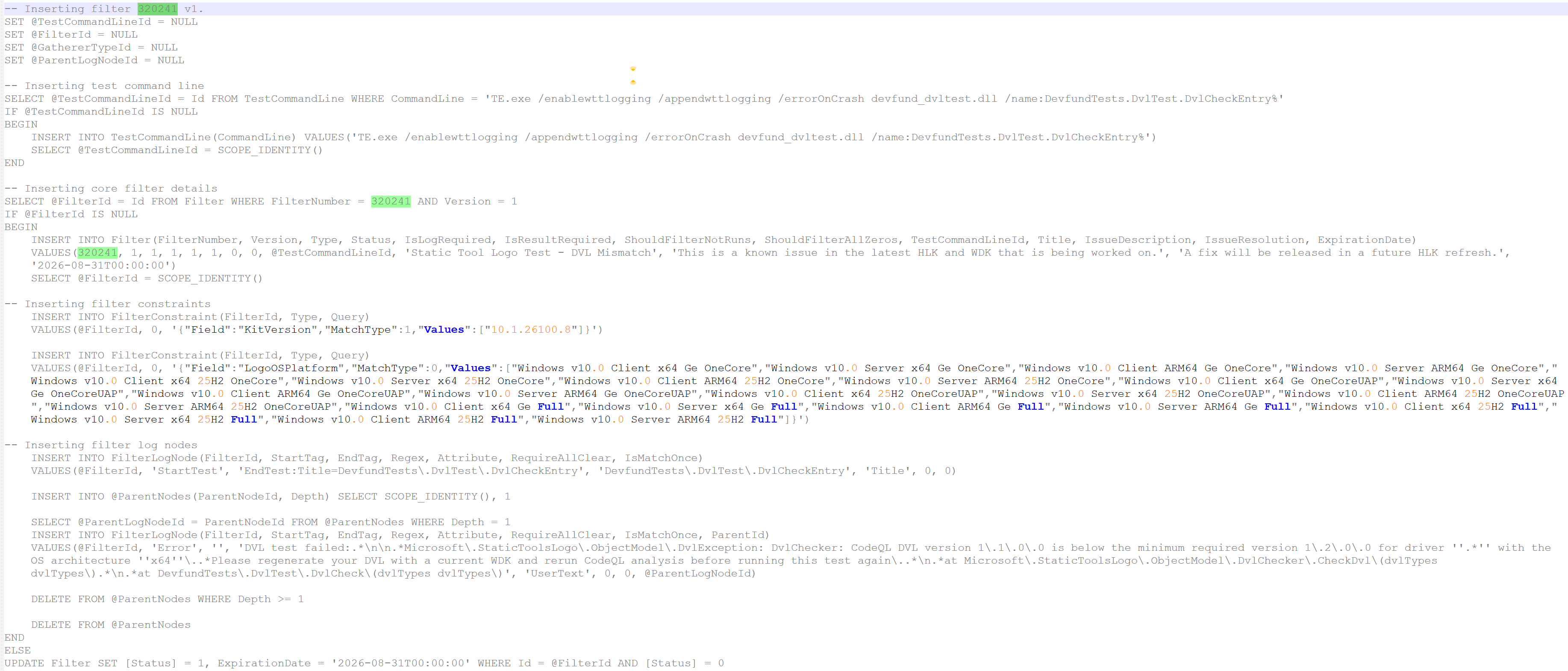

    This is a known issue in the latest HLK and WDK that is being worked on. A fix will be released in a future HLK refresh.

    HLK release new filters for this issue utile 2026-08-31.

    Was this answer helpful?

    2 people found this answer helpful.
    0 comments
  3. Tom Tran (WICLOUD CORPORATION) 5,950 Reputation points Microsoft External Staff Moderator
    2026-05-22T08:01:35.9133333+00:00

    Hi @Kokei Chang ,

    The error seems to be related to the DVL file version used by the Static Tools Logo Test.

    For Windows 11, version 25H2, I would suggest regenerating the DVL by following the current CodeQL guidance for driver certification. Microsoft lists the 25H2 WHCP tool versions as CodeQL CLI 2.20.1, microsoft/windows-drivers pack 1.8.0, and microsoft/cpp-queries pack 0.0.4 in Run CodeQL Analysis on Windows Driver Code. The Static Tools Logo Test also uses the DVL file to read the CodeQL/static analysis results, so the DVL generation path is the first thing I would check here: Static Tools Logo Test.

    After creating the new .DVL.XML file, copy it to %systemdrive%\DVL on the HLK test machine, remove any old DVL files from that folder, and run the Static Tools Logo Test again.

    If the same DVL version error still appears, please share the dvl.exe path/version, the output of codeql --version, and the Static Tools Logo Test log section that shows the DVL version check. That should help confirm whether the DVL is being generated with the expected 25H2 toolchain.

    If you think this response helped, please kindly consider following this guidance. It can help others with a similar issue find the information more easily. Thank you

    Was this answer helpful?
