do we require 20 Ips while creating private endpoint for service recovery vault. i have selected target sub resource as backup vault. it gives me error like vault."** while the selected sub-resource requires 20".

Question

do we require 20 Ips while creating private endpoint for service recovery vault. i have selected target sub resource as backup vault. it gives me error like vault."** while the selected sub-resource requires 20".

Aditi Sharma 40

do we require 20 Ips while creating endpoint for service recovery vault. i have selected target sub resource as backup vault. it gives me error like vault."** while the selected sub-resource requires 20".

for me- doesn't PEP require a single Ip for creation?

Thanmayi Godithi 11,825 Reputation points Microsoft External Staff Moderator

2026-02-26T15:51:37.61+00:00

Hi @Aditi Sharma,

Thank you for reaching out on Microsoft Q&A forum.

We will look into your query and get back to you shortly.

Answer accepted by question author

0 additional answers

Your answer

Thanmayi Godithi 11,825 Reputation points Microsoft External Staff Moderator

2026-02-26T15:51:37.61+00:00

Hi @Aditi Sharma,

Thank you for reaching out on Microsoft Q&A forum.

We will look into your query and get back to you shortly.

Answer 1

Hi @Aditi Sharma,

Welcome to Microsoft Q&A Platform.

for me- doesn't PEP require a single Ip for creation?

Yes, you are correct — one private IP address is sufficient for a standard Private Endpoint. However, the subnet must contain at least 20 available IP addresses when creating a Private Endpoint for a target sub-resource such as a Backup Vault.

Although a standard Private Endpoint consumes only one IP address, Azure Backup (Recovery Services Vault / Backup Vault) internally reserves multiple IP addresses for:

Internal service components
Scaling operations
Future allocations

To resolve the issue, please create a subnet with at least a /27 address range (32 total IP addresses, 27 usable).

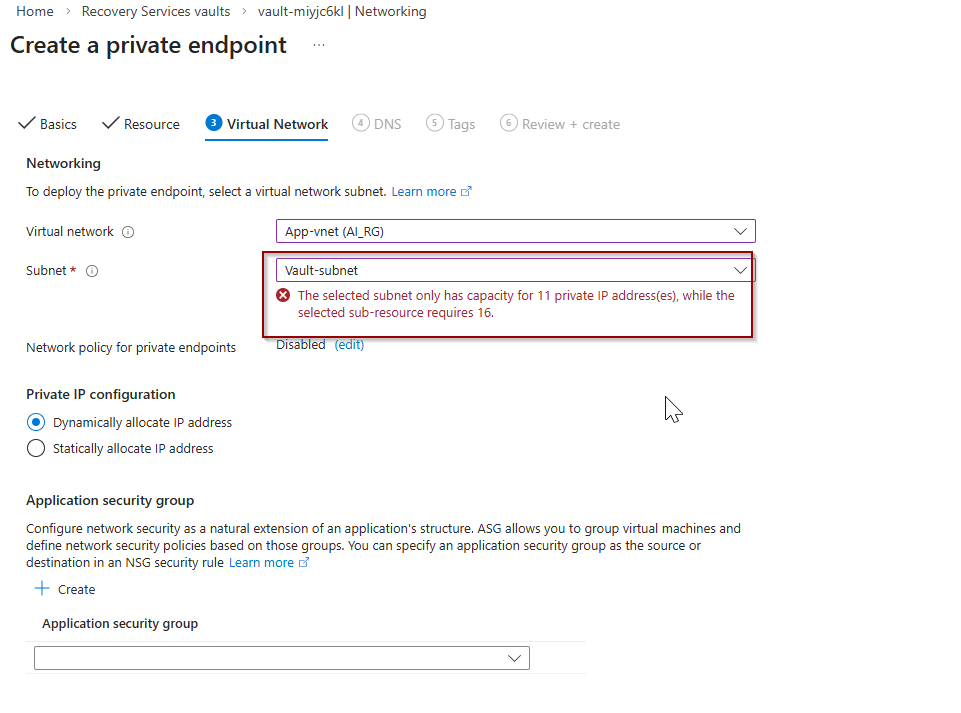

I also attempted to create a Private Endpoint using a /27 subnet with only 11 available IP addresses, and I encountered the same error.
User's image

Ref: Create Private Endpoints for Azure Backup

If the provided steps did not help resolve your query, please share the requested details so that we can connect via a Teams call and troubleshoot further.
