How to automate data refresh on external data linked to shapes?

Tom 0 Reputation points
2026-01-26T08:00:33.37+00:00

Hi @Flora-T

My request is based on previous question and goes a step further => https://learn.microsoft.com/en-us/answers/questions/5696677/how-to-automate-data-updates-in-visio-diagrams-whe?comment=question&source=docs#comment-2474320

Use Case:

We develop a template for our coworkers. Requirement, it has to be as simple as possible to use. Our diagrams are very business specific. Therefore we just using the stand Data Wizard with an Excel and match the rows manually to the shapes. We created a row in excel which generates a global UID.

Problem - UID:

It's a kind of random what Visio selects as UID column. This leads to a chaos if initially not properly set after first refresh. Conflicts keep appearing. The risk of accidentally re-assigning wrong shapes increases. On top of it there seems to be an error once linked shape will get automatically re-linked after a refresh unless you really delete them and recreate them from scratch. For beginner Visio users is this too complicated and frustrating.

Solution Finding - UID:

Is there a kind of static name of naming a column to ensure Visio is recognizing this reliably as UID column? This could mitigate the problematic mostly. Or even any better idea how to increase the level of automation?

Problem - Autolink After Refresh:

This costed me more than days of nerves until I found the cause. After refresh it was a kind magical on how Visio stated to link additional shapes. It appears it tries to re-link in the past unlinked shaped. However, the logic is still unclear and cumbersome.

Solution Finding - Autolink After Refresh:

We only have stencil files and the excel as template. It is by design of our templates to have the minimum number of template files to reduce complexity. Additionally, it brings the benefit a freshly created Visio drawing autofills the file author correctly and reliefs the drawing from history burden of settings and ghost shapes (hidden structures) due a clean green starting point.

Addon Note: Using VBA is not an option do security concerns.

Microsoft 365 and Office | Visio | For business | Other

4 answers

Sort by: Most helpful
Most helpful Newest Oldest
  1. John Vines - CRC 0 Reputation points
    2026-03-21T17:53:19.6866667+00:00

    Hi @Tom

    You’re right to focus on a stable key column - that’s the only way to prevent Visio’s refresh from “guessing” row/shape matches. In practice, the safest pattern is: (1) create a dedicated UID column in Excel that never changes once a row is linked, (2) ensure the source range is an actual Excel Table (not just adjacent columns), (3) when you first link data, explicitly set the key/unique identifier to that UID column, and (4) if the wrong key was chosen initially, it’s often faster to rebuild the link from scratch (because Visio stores the row–shape mapping based on the first key). If teammates are manually dragging rows to shapes, make the UID visible in the shape data or in a small text field so they can visually confirm they’re linking the correct row before refresh.

    I hope this information is helpful.

    If the answer is helpful, please click "Accept Answer" and kindly upvote it. If you have extra questions about this answer, please click "Comment".

    Was this answer helpful?

    0 comments
  2. Tom 0 Reputation points
    2026-01-26T13:31:33.9366667+00:00

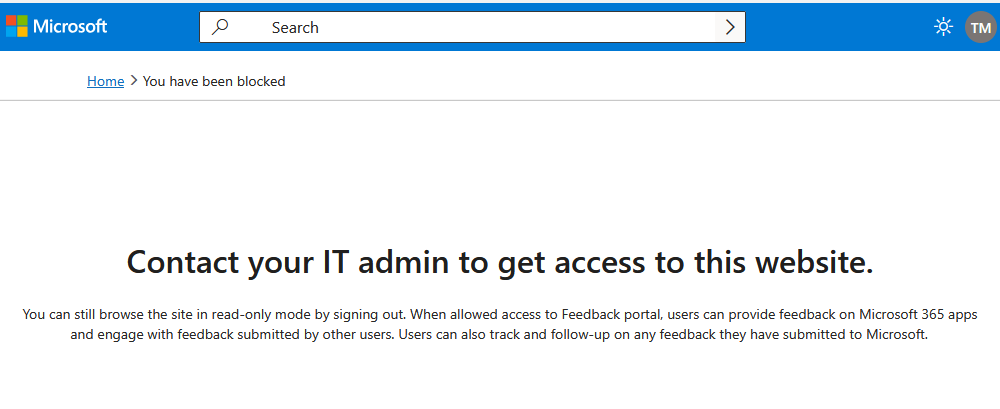

    Thanks, for your feedback and I value your effort and support. I tried to follow your advise and place a product improvement feedback. However the system is blocking me.

    User's image

    Here I must give up. This is too complicated and time consuming for further follow up. I must go back to work.

    Was this answer helpful?

  3. Anonymous
    2026-01-26T09:45:29.5233333+00:00

    Hi @Tom

    Thank you for posting your question in the Microsoft Q&A forum.

    Visio does not automatically recognize column names as the unique identifier. There is no reserved column name that Visio recognizes for this purpose. Instead, Visio relies on the unique identifier (key column) explicitly selected during the initial data-link setup.

    If a key column is not defined at the time of the initial link, Visio falls back to undocumented internal matching behavior. Since Microsoft does not publish how this fallback works, the results can appear unpredictable during refresh such as incorrect shape updates or unintended relinking.

    To ensure stable and predictable data refresh behavior, you should always define a stable, immutable unique identifier before linking:

    In Excel:

    -Add a dedicated UID column in Excel whose values are unique and never change once the data is linked.

    -Convert your range to an Excel Table and keep column names stable.

    In Visio:

    -Go to Data > Link Data to Shapes and select your Excel table.

    -When prompted, set the Unique Identifier (key column) to your UID column.

    -After linking, the selected key can be reviewed under External Data > Configure Refresh.

    Visio does not reliably support changing the key after the initial link. If the wrong key column was selected, the most reliable fix is to recreate the diagram, because row–shape associations are established during the first import.

    To minimize unintended relinking, avoid drag‑and‑drop linking behaviors that rely on automatic matching and ensure UID values remain stable so Visio can match updated rows consistently.

    If the UID changes, or if no UID is defined, Visio cannot reliably match rows to shapes during refresh. This may result in inconsistent or unexpected updates.

    Reference: Import data to shapes in your drawing - Microsoft Support.

    I hope this information is helpful.

    If the answer is helpful, please click "Accept Answer" and kindly upvote it. If you have extra questions about this answer, please click "Comment".

    Note: Please follow the steps in our documentation to enable e-mail notifications if you want to receive the related email notification for this thread.

    Was this answer helpful?

  4. AI answer

    2026-01-26T08:00:49.81+00:00

    To automate data refresh for external data linked to shapes in Visio, you can utilize the RefreshInterval property of the DataRecordset object. By setting this property to a positive value (in minutes), you can specify how often Visio should automatically refresh the linked data. The minimum interval you can set is one minute. This will help ensure that your diagrams reflect the most current data without requiring manual intervention.

    To manage the unique identifier (UID) issue, while there isn't a static name that Visio recognizes as a UID column, you can ensure that the column you want to use as a UID is consistently named across your Excel files. This can help reduce confusion during the linking process. Additionally, when you create your data recordset, ensure that you designate primary keys properly, as this can help Visio maintain the correct relationships between shapes and data rows during refresh operations.

    Regarding the problem of autolinking after a refresh, it is important to understand that Visio attempts to maintain the links based on the shape IDs and the data row IDs. If shapes are not linked correctly after a refresh, it may be necessary to review how the data is structured and ensure that the primary keys are correctly assigned. This can help prevent Visio from trying to relink shapes that should not be linked.

    If VBA is not an option due to security concerns, consider documenting the process for your coworkers to minimize complexity and ensure they understand how to set up the diagrams correctly from the start. This can help reduce the frustration associated with linking and refreshing data in Visio.

    AI-generated content may be incorrect. Read our transparency notes for more information.

    Was this answer helpful?
