How to manipulate XML messages with Business Rules

Mohamed BENDAOU 0

Hi,

I'm facing an issue while using Rule Composer to manipulate XML messages.

I created a RuleSet that have to create a new node on an XML message (using XMLHelper from Microsoft.Azure.Workflows.RuleEngine)

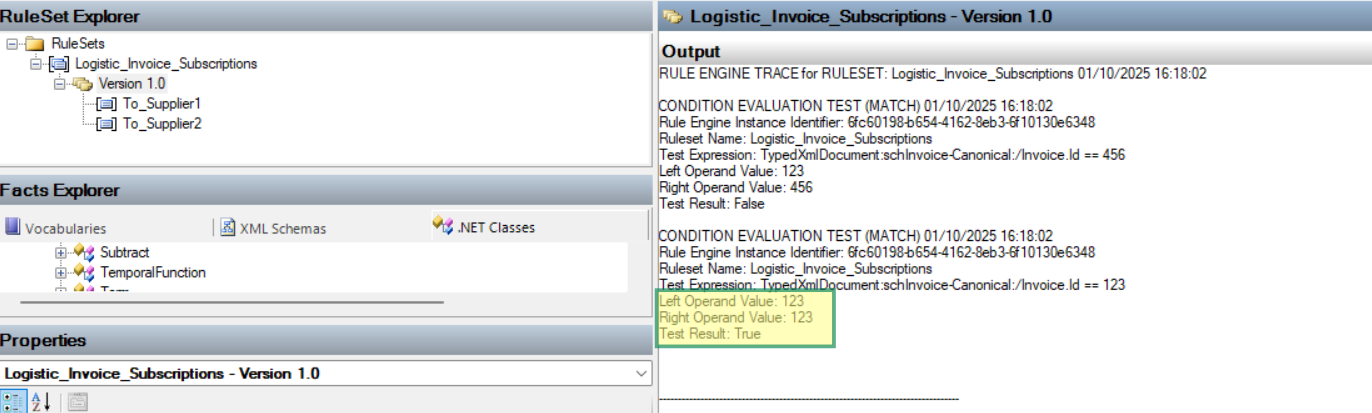

User's image

Unfortunately, the rule didn't fire and the XML is not updated.

Did you already faced this issue?

Thanks.

Praveen Kumar Gudipudi 2,295 Reputation points Microsoft External Staff Moderator

2025-10-01T14:05:00.7766667+00:00

Hello Mohamed BENDAOU,

The rule will not fire if the condition is not met. Your condition is:

---schInvoice-Canonical:/Invoice/Id is equal to 123---

Confirm the actual XML message has the value 123 in the /Invoice/Id field.

Make sure there are no leading/trailing spaces or type mismatches

If you can provide a sample of the input XML, I can help confirm the XPath and namespace correctness.
Mohamed BENDAOU 0 Reputation points

2025-10-01T14:26:53.9533333+00:00

Hi,

Thanks for your reply.

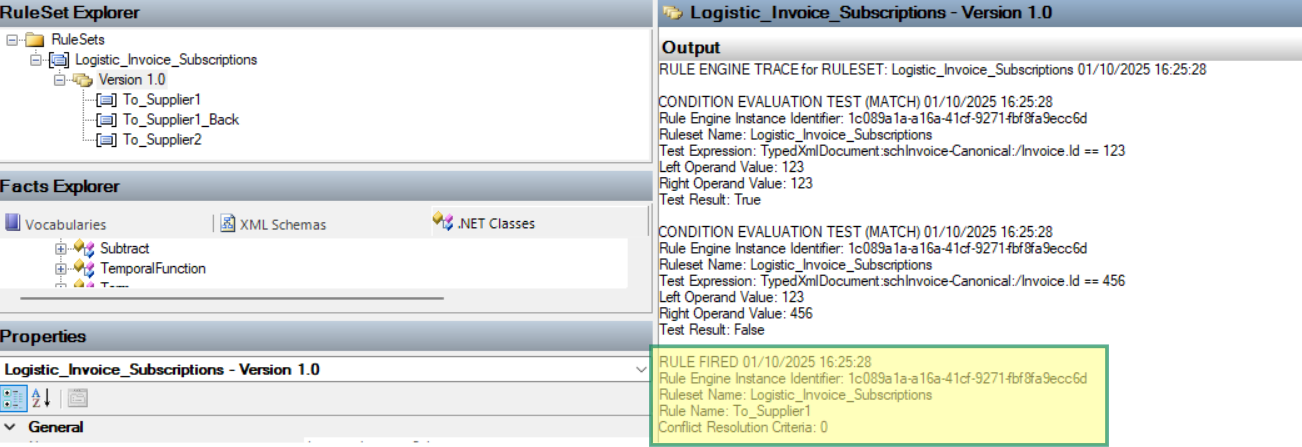

I confirm that the condition is met:

When I remove the action: XmlHelper.AddNode, the rule fires correctly!

Thanks & regards.
Praveen Kumar Gudipudi 2,295 Reputation points Microsoft External Staff Moderator

2025-10-01T14:48:01.3566667+00:00

Hello Mohamed BENDAOU,

Thanks for the confirmation.

After removing XmlHelper.AddNode, the rule fires correctly!
Mohamed BENDAOU 0 Reputation points

2025-10-01T14:53:58.0766667+00:00

Hi,

I confirm!

However, I need to use XMLHelper.AddNode to update the XML message based on conditions!

I don't get why the rule doesn't fire when using action with AddNode!

Thanks & regards.
