Realtek Audio device Code 10 cannot start and unable to update

I really expected to see one of them w/o Resources & hoped it would resolve like Jerome said. I'll look around some more tomorrow. I guess your problem is not with those devices, but...

(1) Are their drivers the same as mine, especially the one that seems to do nothing?

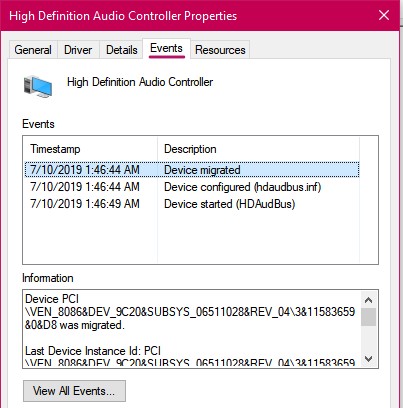

(2) What about their Events tabs...?...

Device PCI\VEN_8086&DEV_9C20&SUBSYS_06511028&REV_04\3&11583659&0&D8 was migrated.

Last Device Instance Id: PCI\VEN_8086&DEV_9C20&SUBSYS_06511028&REV_04\3&11583659&0&D8

Class Guid: {4d36e97d-e325-11ce-bfc1-08002be10318}

Location Path:

Migration Rank: 0x0

Present: true

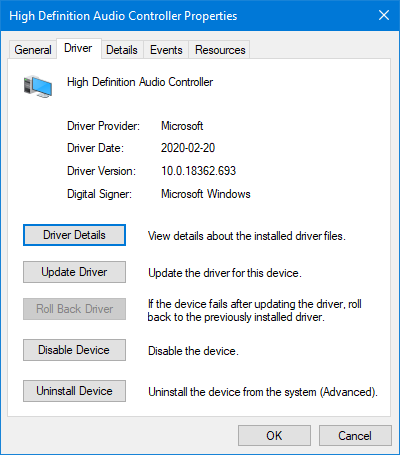

Bus 0 and 1 System Devices both have identical drivers as shown above.

For events:

Bus 0:

Device PCI\VEN_8086&DEV_A348&SUBSYS_68931849&REV_10\3&11583659&0&FB was configured.

Driver Name: hdaudbus.inf

Class Guid: {4d36e97d-e325-11ce-bfc1-08002be10318}

Driver Date: 02/20/2020

Driver Version: 10.0.18362.693

Driver Provider: Microsoft

Driver Section: HDAudio_Device.NT

Driver Rank: 0xFF2006

Matching Device Id: PCI\CC_0403

Outranked Drivers:

Device Updated: false

Parent Device: ACPI\PNP0A08\0

Bus 1:

Device PCI\VEN_10DE&DEV_0FBA&SUBSYS_8C921462&REV_A1\4&174d0e5f&0&0108 was configured.

Driver Name: hdaudbus.inf

Class Guid: {4d36e97d-e325-11ce-bfc1-08002be10318}

Driver Date: 02/20/2020

Driver Version: 10.0.18362.693

Driver Provider: Microsoft

Driver Section: HDAudio_Device.NT

Driver Rank: 0xFF2006

Matching Device Id: PCI\CC_0403

Outranked Drivers:

Device Updated: false

Parent Device: PCI\VEN_8086&DEV_1901&SUBSYS_19011849&REV_0A\3&11583659&0&08

For the actual events it's just a list for both of deleted, started, configured over and over from uninstalling so many times.

If there's any other information I could provide let me know. Thanks again.

Neither is what we are looking for: VEN_8086 is Intel and VEN_10DE is nVidia.

Open the computer case, take out the coin battery and erase the cmos. Boot into bios, and load/save the default setting. Hopefully that will jolt the OS to see the onboard audio chip.

I don't know whether your suggestion is a cure. But don't expect to see Realtek under System Devices. Mine is also VEN_8086 with the same Microsoft drivers as his & works fine.

That device is not an actual audio device. It is the southbridge pathway created by the CPU to transmit the Intel HD Audio Protocol to the actual realtek chip. There used to be a separate southbridge chipset, but Intel put the southbridge functions (now called PCH) inside the CPU as the CPU die shrinks.

https://devicehunt.com/view/type/pci/vendor/8086/device/A348

Also after you reset the bios to default setting, "scan for new hardware" in device manager to see if the actual realtek chip would show up in sound, video and game controllers.
